Name: Lithium Polymer Battery Cell 37V 1500mAh 103048 For Digital Device
Brand: RESKY
Price: 1 USD

Home >

Lithium Polymer Battery Cell 3.7V 1500mAh 103048 For Digital Device

Categories	Lithium Polymer Battery Cell
Certification:	CE, RoHS, MSDS, Un38.3
Brand Name:	RESKY
Model Number:	LP103048
Place of Origin:	China
MOQ:	10pcs
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	50000pcs/day
Delivery Time:	3-5days
Packaging Details:	Paper box
Model NO.:	LP103048
Nominal Capacity:	1500mAh
Weight:	15.5g
MOQ:	100PCS
Warranty:	12months
Shipping:	UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Connector:	Jst, Molex....
Original:	Shenzhen, China
Specification:	103048mm

Contact Now

Add to Cart

Company Info.

Shenzhen Resky Electronics Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Lithium Polymer Battery Cell 3.7V 1500mAh 103048 For Digital Device

Product Description

Lithium polymer battery cell 3.7V 1500mAh 103048 for Digital Device

NO.	Items	Specifications
1	batteries	3.7v 1500mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	1500mAh 0.2C Discharge
5	Charge current	Standard Charging:0.2C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length: 48±0.5mm (not including tabs) Width: 30±0.5mm Thickness:10±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥800times

Advantages:

High Energy Density: Lithium polymer battery cells offer significantly higher energy density compared to traditional battery types, enabling them to store more energy per unit weight or volume. This makes them ideal for devices where space is a constraint and long operational times are required.

Lightweight and Flexible Design: Due to their polymeric composition, lithium polymer batteries can be designed in various shapes and sizes, offering greater flexibility in integration into devices. Their lightweight nature also contributes to reducing the overall weight of the products they power.

Fast Charging Capability: Many lithium polymer batteries support rapid charging, allowing them to reach full capacity in a fraction of the time compared to other battery types. This is particularly advantageous for applications requiring quick turnarounds or emergency use.

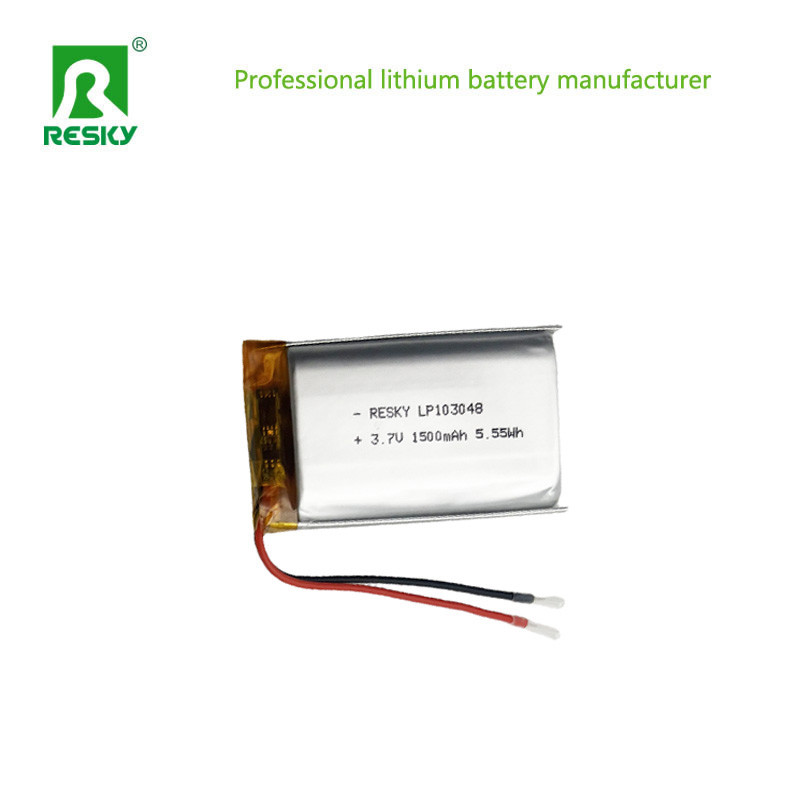

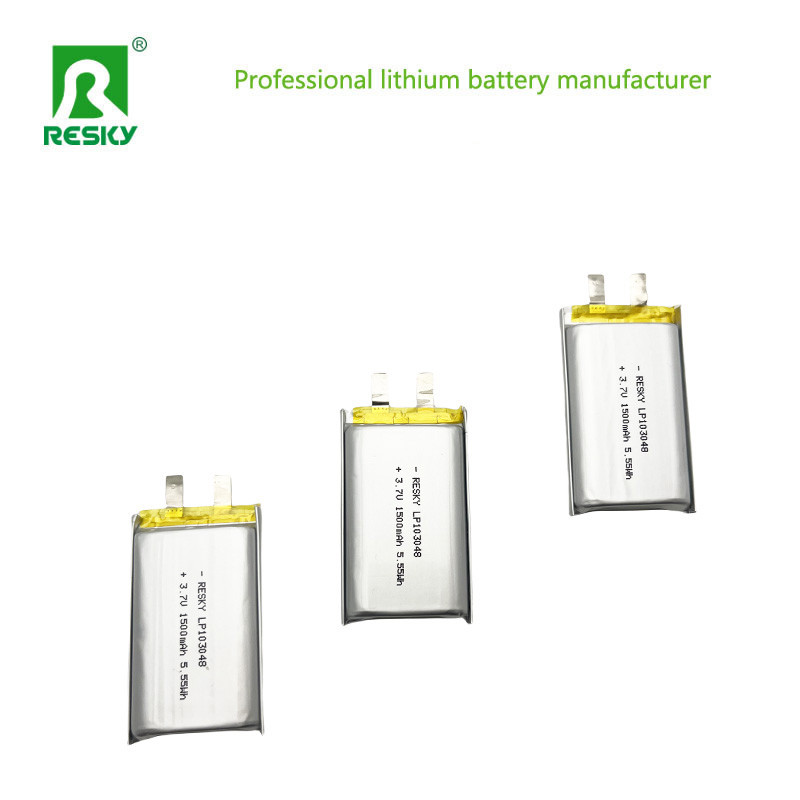

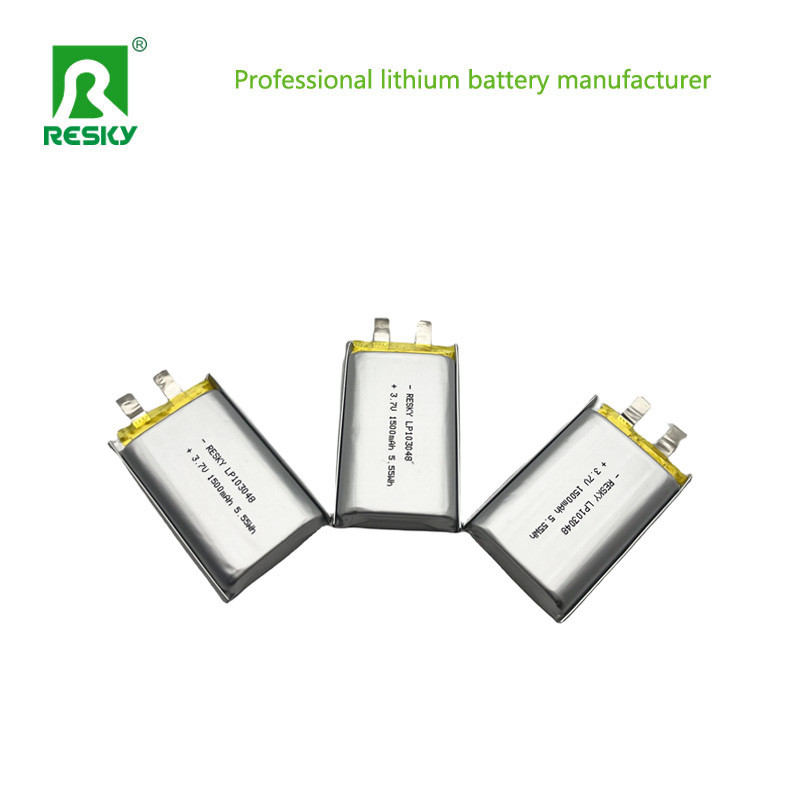

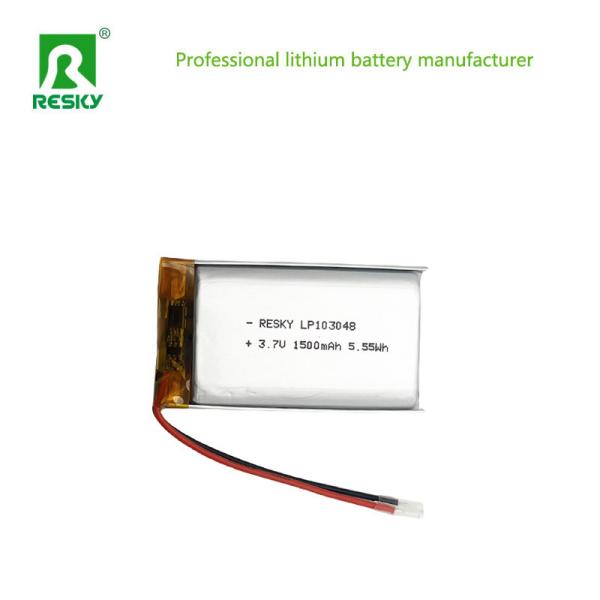

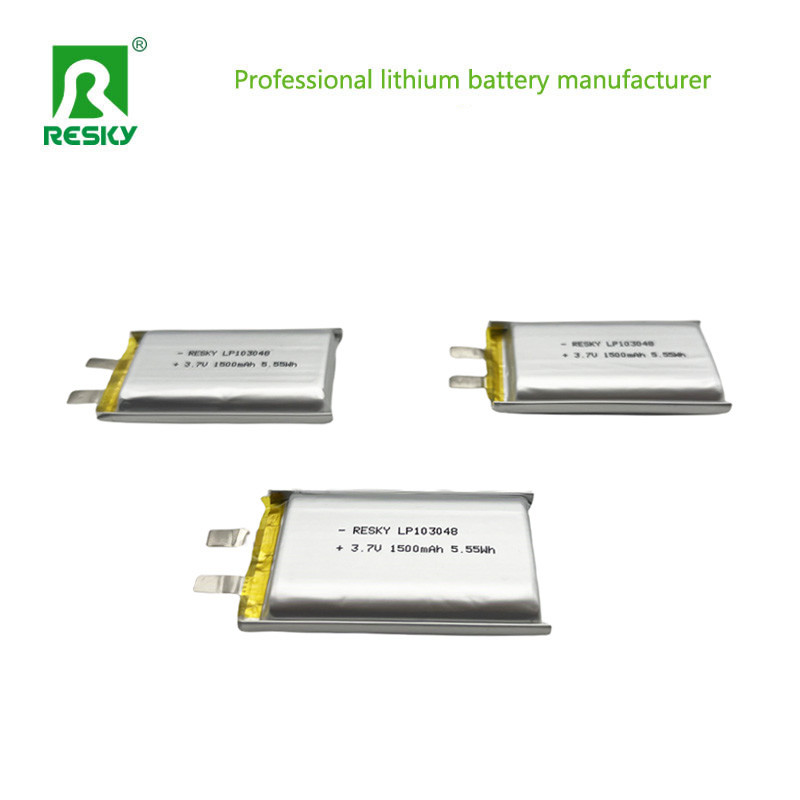

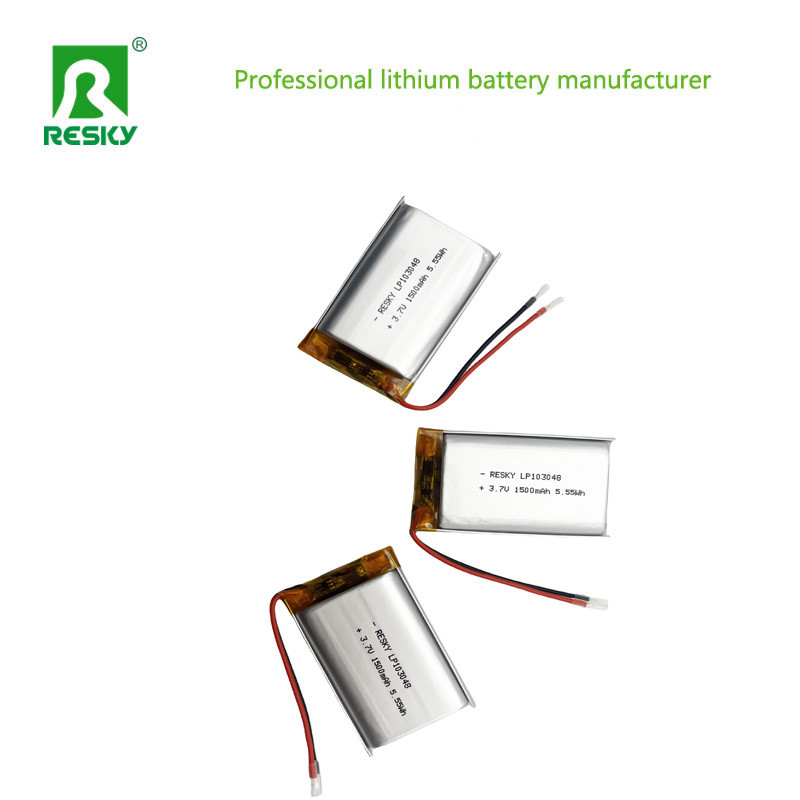

Pictures:

Product Tags:

1500mAh Lithium Polymer Battery Cell

Lithium Polymer Battery Cell 3.7V 1500mAh 103048 For Digital Device
