| Categories | BA Tube |
|---|---|
| Brand Name: | YUHAO |
| Model Number: | SEAMLESS BA TUBES |
| Certification: | ISO PED CE TUV AD2000 |
| Place of Origin: | CHINA |
| MOQ: | 100KGS |
| Price: | NEGOTIATION |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300TONS/PER MONTH |
| Delivery Time: | 30-50DAYS |
| Packaging Details: | PACKING IN PLYWOOD CASES |
| Type: | Seamless, Welded |
| Application: | Heating, Cooling, Instrumentation, Food Processing Machine |
| Standard: | ASTM A213/A269/EN10216-5/JIS/GOST |
| OD: | 3.18MM-154MM |
| WT: | 0.5MM-10MM |
| Length: | 6m Or As Customer's Requirement |
| Manufacturing Process: | Cold Drawn Process, Hot Rolled Process, Welded Process |
| Corrosion Resistance: | Acid Resistance, Alkali Resistance |
| Package: | PACKAGED BY PLYWOODE CASE |
| Material: | TP316L/316H/316Ti ,TP317/317L , TP321/321H, TP347/347H 904L |
| Company Info. |
| Zhejiang Yuhao Stainless Steel Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

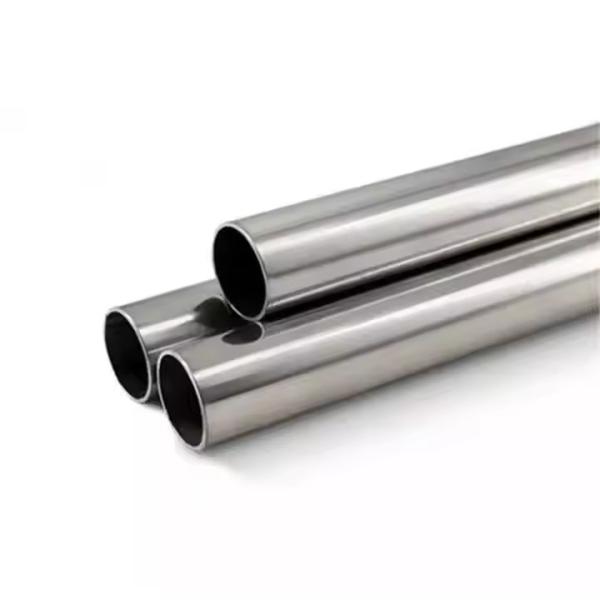

STAINLESS STEEL SEAMLESS TUBE A269 TP316L BRIGHT ANNEALED SURFACE
►Products Information
Stainless steel bright tubes are precision-engineered cylindrical components known for their smooth, polished surface and exceptional corrosion resistance. Made from high-quality stainless steel grades such as 304 or 316, these tubes are ideal for applications requiring both functionality and aesthetic appeal. The bright finish is achieved through meticulous polishing, making them suitable for decorative uses in architecture, furniture, and automotive design. Additionally, their durability, heat resistance, and hygienic properties make them a preferred choice in industries like food processing, pharmaceuticals, and chemical manufacturing. Stainless steel bright tubes are available in various sizes and thicknesses, offering versatility for structural, mechanical, and fluid transport applications while ensuring long-lasting performance and low maintenance.
►Product Size
| STAINLESS STEEL (ASTM/ANSI) | ||||||||||
| B | O.D | SCH 5S | SCH 10S | SCH 10 | SCH 20S | SCH 40S | SCH 40 | STD | SCH 80S | SCH 80 |
| 1/8" | 10.29 | - | 1.24 | 1.24 | - | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 |
| 1/4" | 13.72 | - | 1.65 | 1.65 | - | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 |
| 3/8" | 17.15 | - | 1.65 | 1.65 | - | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 |
| 1/2" | 21.34 | 1.65 | 2.11 | 2.11 | - | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 |
| 3/4" | 26.67 | 1.65 | 2.11 | 2.11 | - | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 |
| 1" | 33.4 | 1.65 | 2.77 | 2.77 | - | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 |
| 1 1/4" | 42.16 | 1.65 | 2.77 | 2.77 | - | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 |
| 1 1/2" | 48.26 | 1.65 | 2.77 | 2.77 | - | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 |
| 2" | 60.33 | 1.65 | 2.77 | 2.77 | - | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 |
| 2 1/2" | 73.03 | 2.11 | 3.05 | 3.05 | - | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 |
| 3" | 88.9 | 2.11 | 3.05 | 3.05 | - | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 |
| 3 1/2" | 101.6 | 2.11 | 3.05 | 3.05 | - | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 |
| 4" | 114.3 | 2.11 | 3.05 | 3.05 | - | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 |
| 5" | 141.3 | 2.77 | 3.4 | 3.4 | - | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 |
| 6" | 168.28 | 2.77 | 3.4 | 3.4 | - | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 |
| 8" | 219.08 | 2.77 | 3.76 | 3.76 | 6.35 | 8.18 | 8.18 | 8.18 | 12.7 | 12.7 |
| 10" | 273.05 | 3.4 | 4.19 | 4.19 | 6.35 | 9.27 | 9.27 | 9.27 | 12.7 | 15.09 |
| 12" | 323.85 | 3.96 | 4.57 | 4.57 | 6.35 | 9.52 | 10.31 | 9.52 | 12.7 | 17.48 |
| 14" | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | - | 11.13 | 9.52 | - | 19.05 |
| 16" | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | - | 12.7 | 9.52 | - | 21.44 |
| 18" | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | - | 14.27 | 9.52 | - | 23.83 |
| 20" | 508 | 4.78 | 5.54 | 6.35 | 9.52 | - | 15.09 | 9.52 | - | 26.19 |
| 22" | 558.8 | 4.78 | 5.54 | 6.35 | 9.52 | - | 15.09 | 9.52 | - | 28.58 |
| 24" | 609.6 | 5.54 | 6.35 | 6.35 | 9.52 | - | 17.48 | 9.52 | - | 30.96 |
| 26" | 660.4 | - | 7.92 | 12.7 | - | 17.48 | 9.52 | - | ||
►Product Shoot
►FAQ
Q1: Can you provide the free samples?
A: We can supply the free samples but the sample express freight need paid by yourside.
Q2: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q3: Can I customize products?
A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.
Q4: How long is your production lead time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q5: How do you ensure product quality?
A: We have a dedicated team of experts who rigorously inspect each stage of the production process. Every product undergoes quality testing at our factory before it is shipped.
|
