| Categories | BA Tube |
|---|---|
| Brand Name: | YUHAO |
| Model Number: | SEAMLESS BA TUBES |
| Certification: | ISO PED CE TUV AD2000 |
| Place of Origin: | CHINA |
| MOQ: | 100KGS |
| Price: | NEGOTIATION |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300TONS/PER MONTH |
| Delivery Time: | 30-50DAYS |
| Packaging Details: | PACKING IN PLYWOOD CASES |
| Certifications: | ISO 9001, RoHS |
| Application: | Medical, Industry, Decoration, Construction, Ornament |
| Standard: | ASTM/ASME A/SA213, A/SA269, DIN17458/17457, EN10216-5/10217-7 |
| OD: | 3.18MM-154MM |
| WT: | 0.5MM-10MM |
| Length: | 6m Or As Customer's Requirement |
| Manufacturing Process: | Cold Drawn Process, Hot Rolled Process, Welded Process |
| NDT: | Ultransonic Test, Eddy Current Test, Hydrostatic Test |
| Package: | PACKAGED BY PLYWOODE CASE |
| Material: | TP304, TP304L, TP316, TP316L, TP321, TP347H |
| Company Info. |
| Zhejiang Yuhao Stainless Steel Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
ASTM/ASME A/SA213, A/SA269 304, 304L, 310S, 316L Steel Seamless Pipe Bright Annealed
►Products Information
Stainless steel bright tubes are precision-engineered cylindrical components known for their exceptional surface finish, corrosion resistance, and durability. Made from high-grade stainless steel, these tubes undergo a specialized polishing process to achieve a mirror-like, smooth surface that enhances both aesthetics and functionality. Ideal for applications in industries such as automotive, aerospace, food processing, and medical equipment, they offer excellent strength-to-weight ratios and hygienic properties. Their resistance to rust, heat, and chemical exposure ensures long-lasting performance in demanding environments. Available in various sizes and thicknesses, stainless steel bright tubes are versatile, reliable, and widely used for structural, decorative, and industrial purposes.
►Product Size
| STAINLESS STEEL (ASTM/ANSI) | ||||||||||
| B | O.D | SCH 5S | SCH 10S | SCH 10 | SCH 20S | SCH 40S | SCH 40 | STD | SCH 80S | SCH 80 |
| 1/8" | 10.29 | - | 1.24 | 1.24 | - | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 |
| 1/4" | 13.72 | - | 1.65 | 1.65 | - | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 |
| 3/8" | 17.15 | - | 1.65 | 1.65 | - | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 |
| 1/2" | 21.34 | 1.65 | 2.11 | 2.11 | - | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 |
| 3/4" | 26.67 | 1.65 | 2.11 | 2.11 | - | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 |
| 1" | 33.4 | 1.65 | 2.77 | 2.77 | - | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 |
| 1 1/4" | 42.16 | 1.65 | 2.77 | 2.77 | - | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 |
| 1 1/2" | 48.26 | 1.65 | 2.77 | 2.77 | - | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 |
| 2" | 60.33 | 1.65 | 2.77 | 2.77 | - | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 |
| 2 1/2" | 73.03 | 2.11 | 3.05 | 3.05 | - | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 |
| 3" | 88.9 | 2.11 | 3.05 | 3.05 | - | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 |
| 3 1/2" | 101.6 | 2.11 | 3.05 | 3.05 | - | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 |
| 4" | 114.3 | 2.11 | 3.05 | 3.05 | - | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 |
| 5" | 141.3 | 2.77 | 3.4 | 3.4 | - | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 |
| 6" | 168.28 | 2.77 | 3.4 | 3.4 | - | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 |
| 8" | 219.08 | 2.77 | 3.76 | 3.76 | 6.35 | 8.18 | 8.18 | 8.18 | 12.7 | 12.7 |
| 10" | 273.05 | 3.4 | 4.19 | 4.19 | 6.35 | 9.27 | 9.27 | 9.27 | 12.7 | 15.09 |
| 12" | 323.85 | 3.96 | 4.57 | 4.57 | 6.35 | 9.52 | 10.31 | 9.52 | 12.7 | 17.48 |
| 14" | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | - | 11.13 | 9.52 | - | 19.05 |
| 16" | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | - | 12.7 | 9.52 | - | 21.44 |
| 18" | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | - | 14.27 | 9.52 | - | 23.83 |
| 20" | 508 | 4.78 | 5.54 | 6.35 | 9.52 | - | 15.09 | 9.52 | - | 26.19 |
| 22" | 558.8 | 4.78 | 5.54 | 6.35 | 9.52 | - | 15.09 | 9.52 | - | 28.58 |
| 24" | 609.6 | 5.54 | 6.35 | 6.35 | 9.52 | - | 17.48 | 9.52 | - | 30.96 |
| 26" | 660.4 | - | 7.92 | 12.7 | - | 17.48 | 9.52 | - | ||

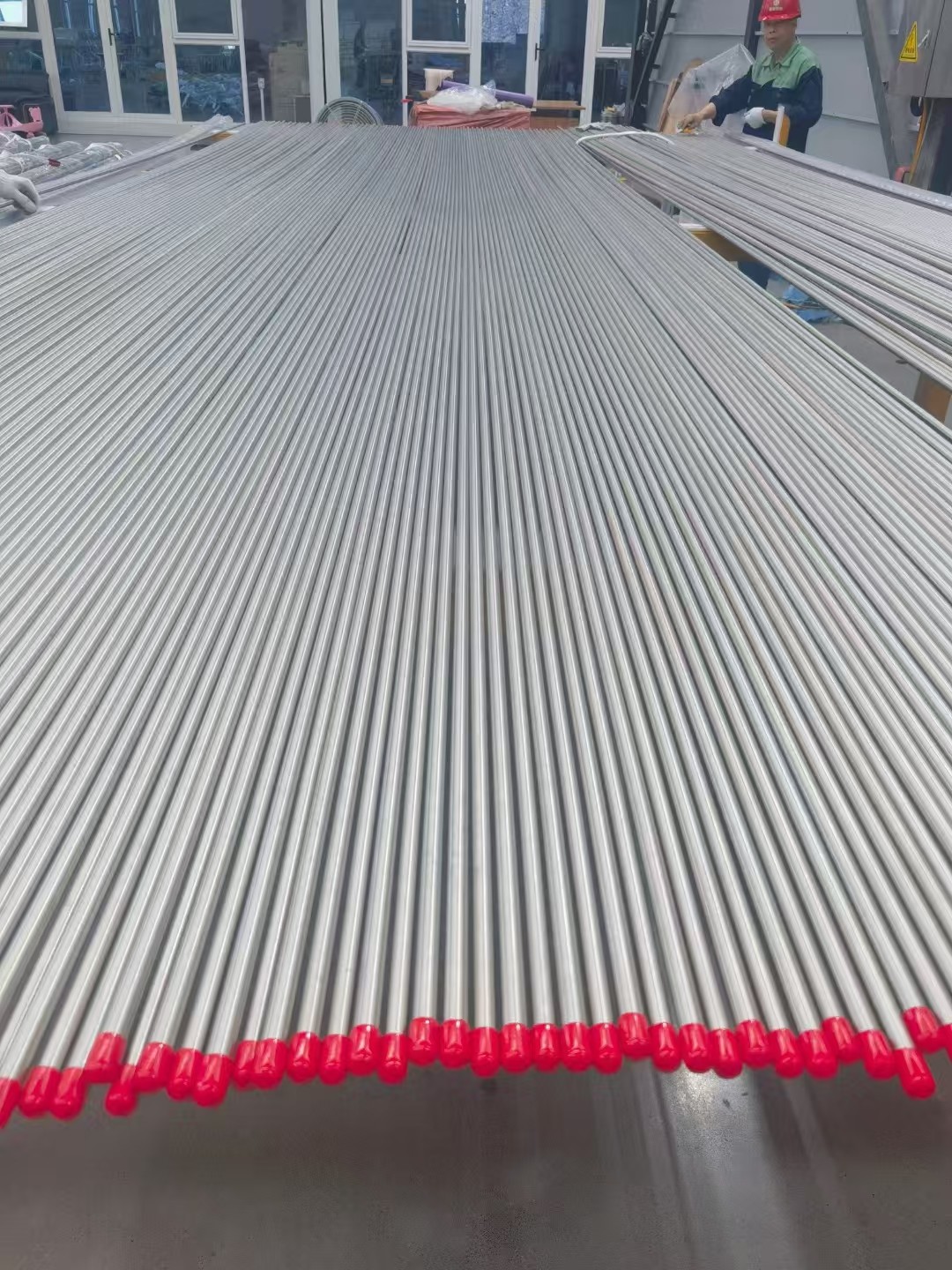

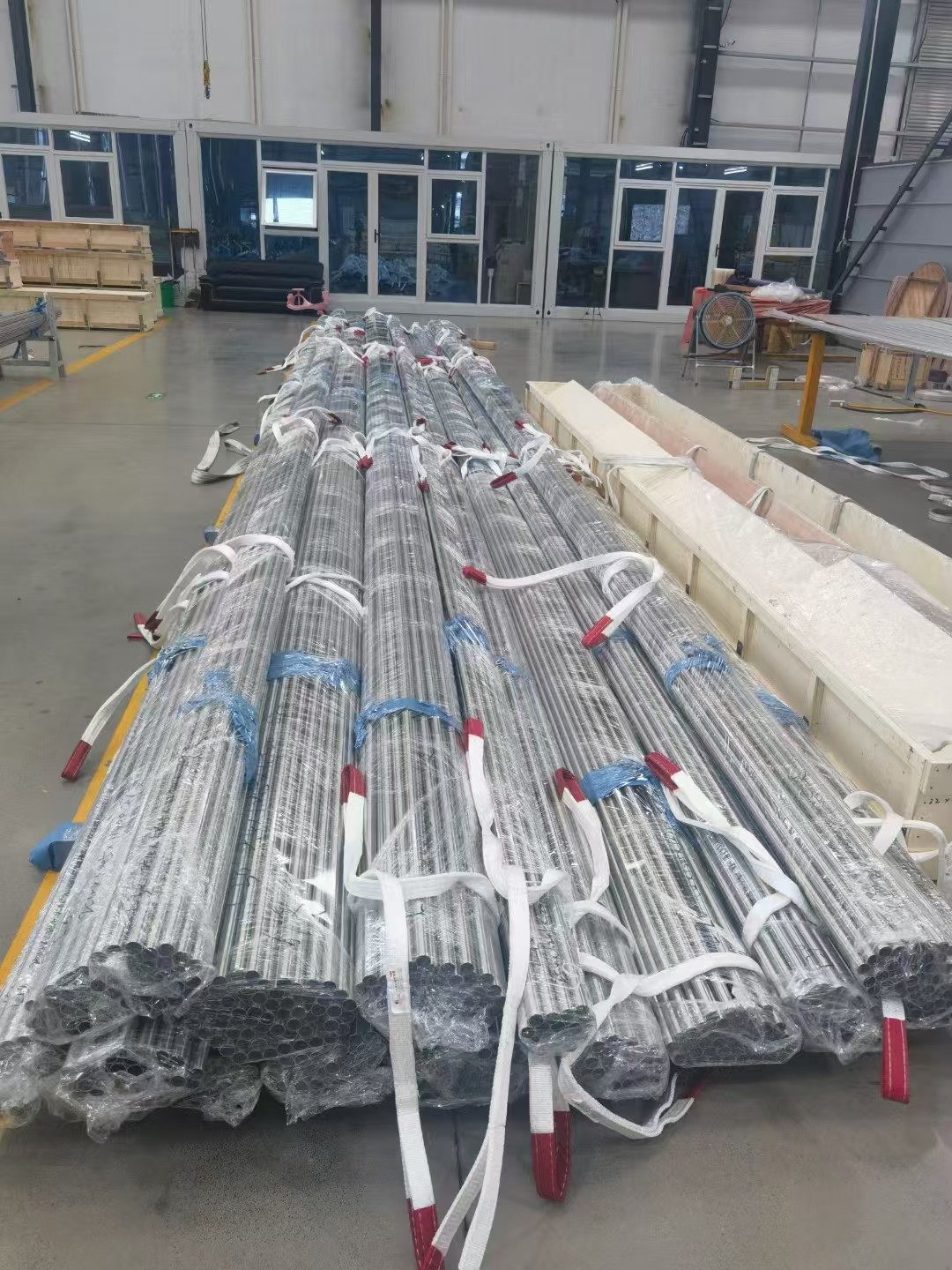

►Product Shoot
►FAQ
Q1: Where is your factory located?
A: Our factory is located in wenzhou City, zhejiang Province,China.
Q2: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q3: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q4: How do you ensure product quality?
A: We have a dedicated team of experts who rigorously inspect each stage of the production process. Every product undergoes quality testing at our factory before it is shipped.
Q5: Are you manufacturer or trading company?
A: We are not only manufacturer but also a trading company,we have more than 12years export experience.
|
