| Categories | Glue Potting Machine |
|---|---|
| Packaging Details: | plywood case |
| Supply Ability: | 1 Set/Mon |
| Price: | CONTACT US |
| Brand Name: | GDS |
| Model Number: | PL-24 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 SET |
| Payment Terms: | T/T |
| Delivery Time: | 30 working days |
| Name: | Glue Potting Machine |
| Application: | LED driver |
| Function: | automatically potting AB glue |
| Waranty: | 1 year |
| After-sales Service Provided: | on-line or on-site |
| EXW report: | test video available |
| Company Info. |
| Zhongshan GDS Automation Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
AB Glue Potting Machine Automatic for Water-proof Driver Line production

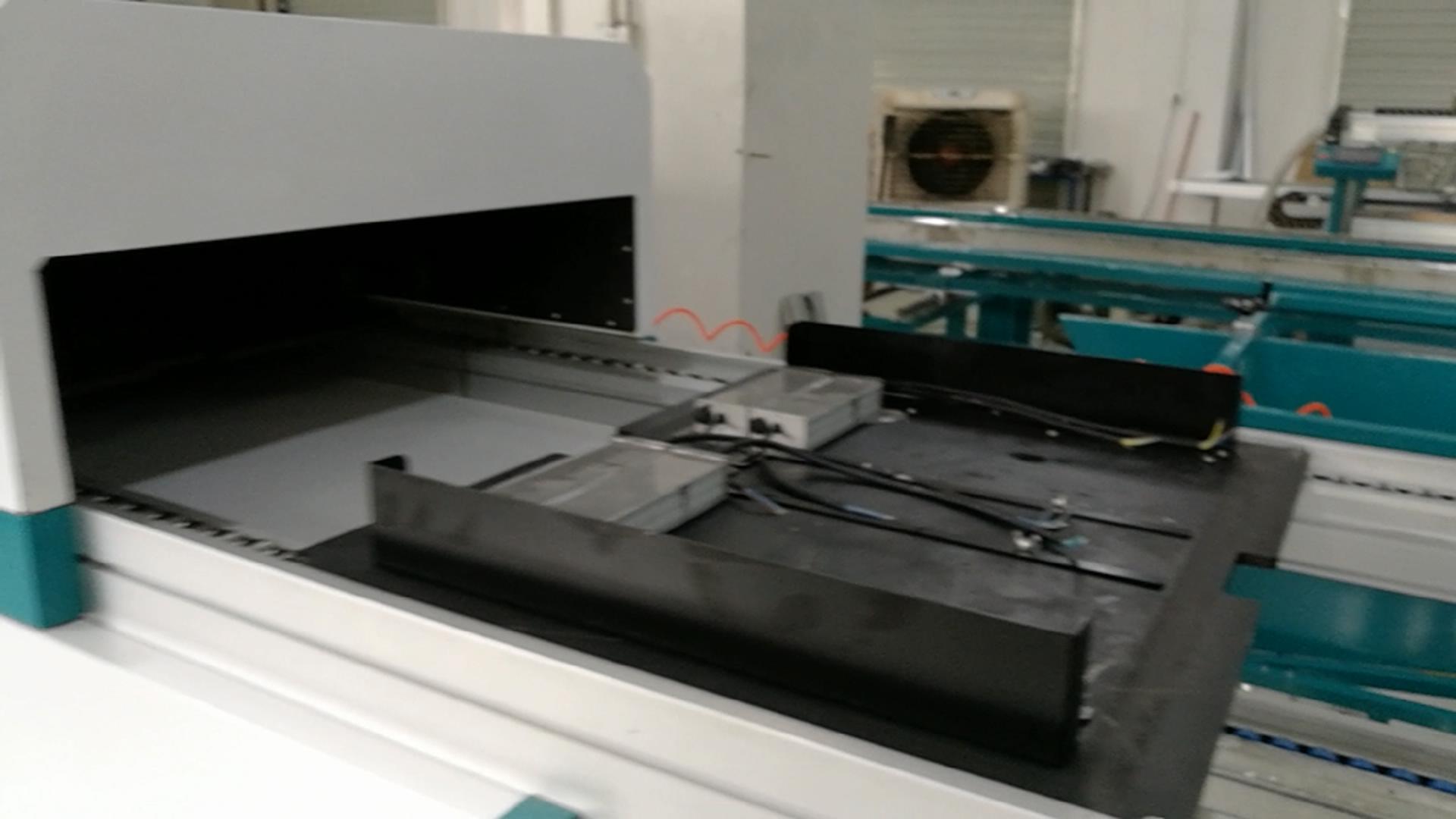

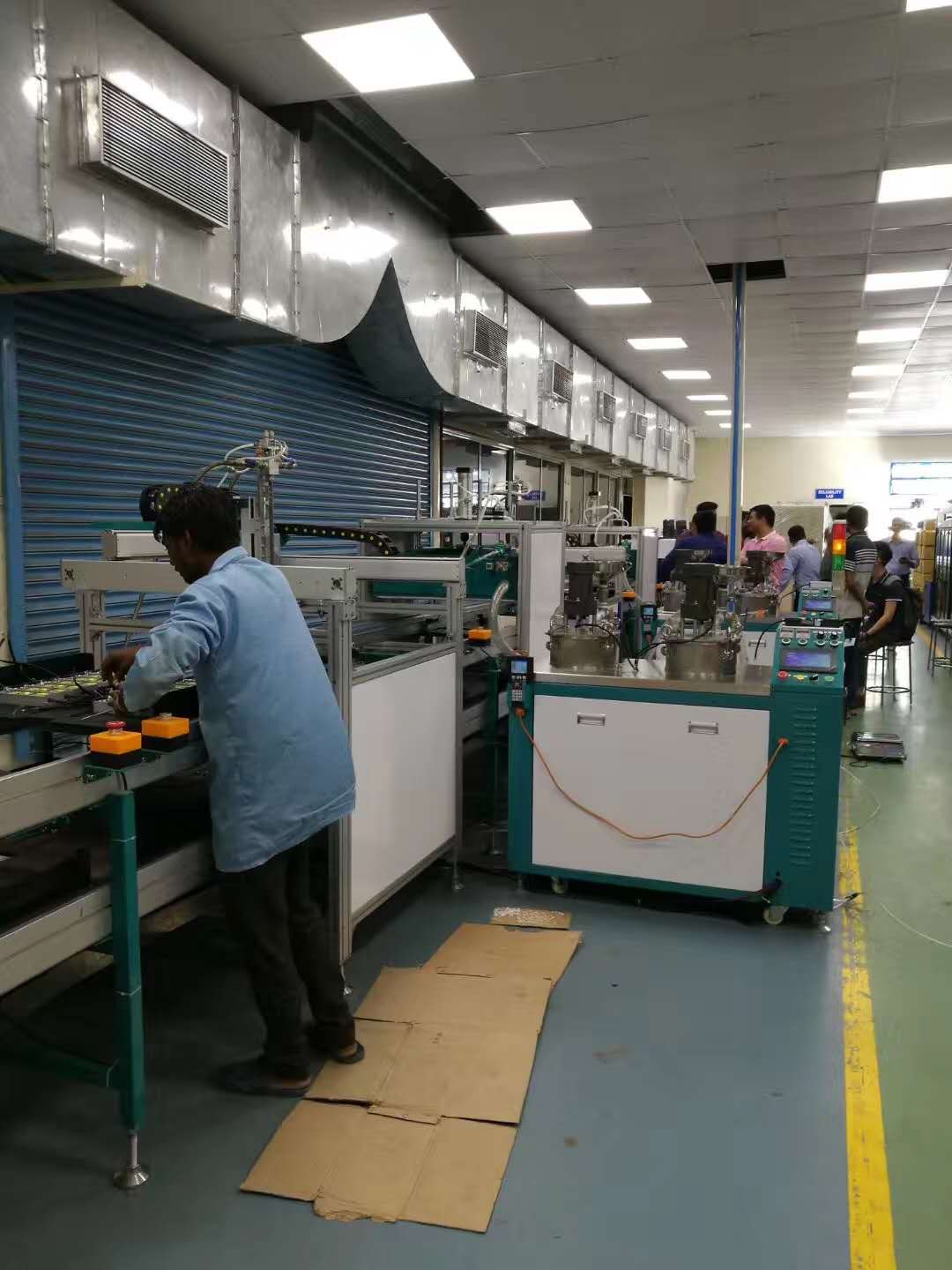

Automatic potting and vacuum production line conveyed by speed chain, is designed by Zhongshan GDS Automation, especially for AB glue potting production line.
Main machine function: Automatic potting machine for waterproof drivers/ aquarium motor/water pump, etc.
Operation mode: Monitored and controlled by PLC, Touch screen (man-machine interaction) teaching programming, with sound or light alarm function for lack of materials or breakdown of the machine.

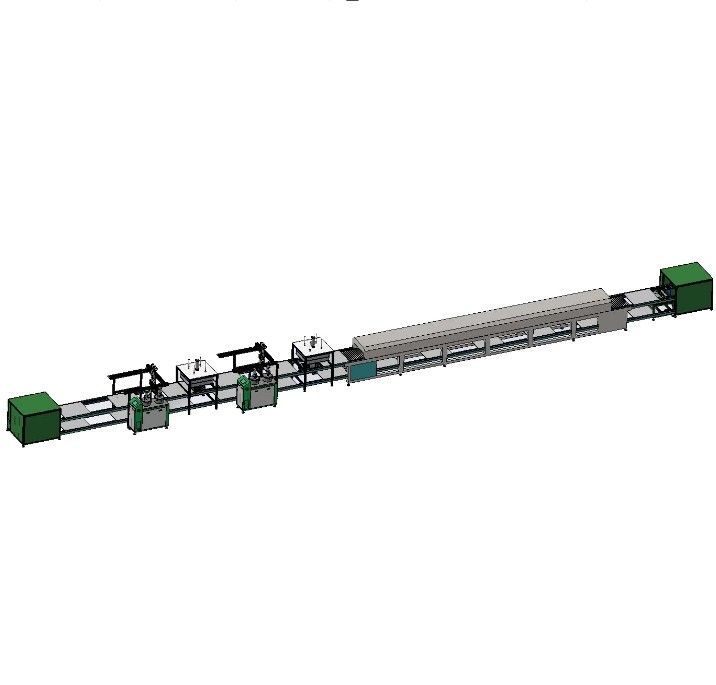

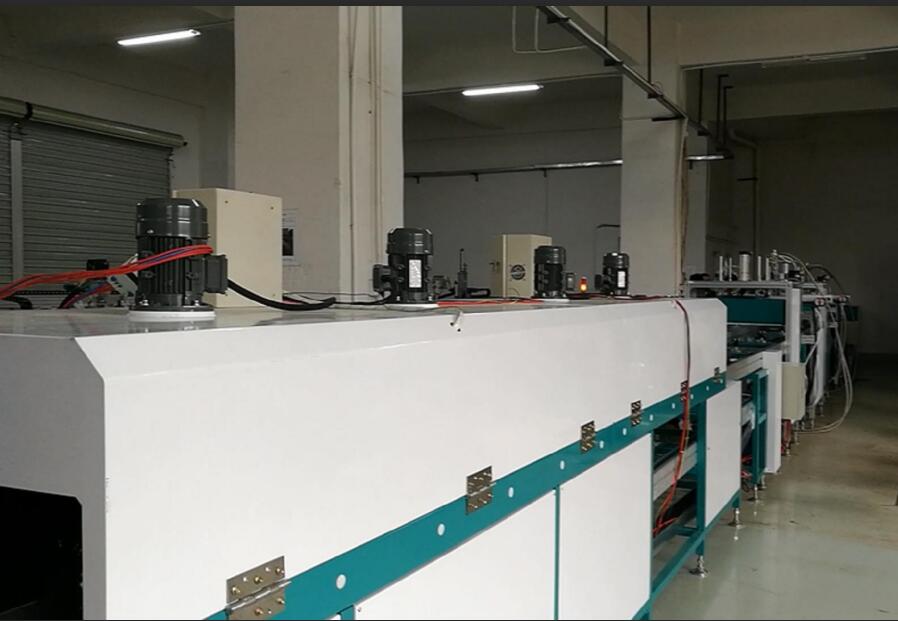

This production line has four parts and altogether 6 working stations. Four parts are as follows: working fixtures conveyor line, automatic glue potting station 1, automatic vacuum process, automatic glue potting station 2.
The 6 working stations are: automatic glue potting working station 1, buffer working station 1, automatic vacuum working station, buffer working station 2, automatic glue potting working station 2, rotary working station. Each working station program is controlled independently and works simultaneously. It is not affected by other working station’s program, and can be adjusted independently.
This is a non-standard customisation project. We can design the potting line based on your requirements. You are free to contact with us for detailed communication. We focus on offering the most suitable and economic solution to your manufacturing. The price depends on your customisation requirements.
|
