| Categories | Glue Potting Machine |
|---|---|
| Brand Name: | GDS |
| Model Number: | MG-1280 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 piece |
| Price: | CONTACT US |
| Payment Terms: | T/T |
| Supply Ability: | 30Pcs/Mon |
| Delivery Time: | 10 working days |
| Packaging Details: | plywood case |
| Name: | Glue Potting Machine |
| Application: | PU potting |
| After-sales Service: | on-line or on-site |
| Function: | automatically metering and potting AB glue |
| EXW report: | test video available |
| Warranty: | 1 Year |
| Company Info. |
| Zhongshan GDS Automation Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

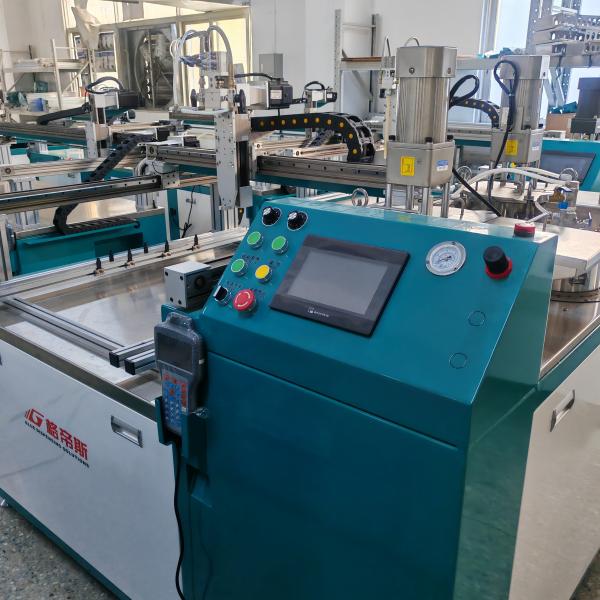

Two parts Polyurathane glue potting machine automatic mixing and dispensing solution
Machine Description
The Two-Part PU Glue Potting Machine delivers precision automated mixing and dispensing solutions for industrial-grade encapsulation, combining advanced process control with material optimization for polyurethane applications. Key technical specifications include:
Machine Features
3 axis mechanical hands employ high precision linear movement module to ensure accurate movement and high repeat accuracy;
Touch screen operation plus handhold teaching programming case, easy to learn and operate;
According to the feature of products and production capacity requirement, fixture and glue delivery head can be customized.
Technical Parameters
| Model | MG-1280 |
| Working Range | 0～500mm/sec |
| Repeat Accuracy | ±0.02mm |
| Mixing Proportion | 100:100～100:10(1:1~10:1) |
| Metering Method | Precise Gear Pump or Screw Pump |
| Mixing Method | Static Mixing |
| Mixing Accuracy | ±1% |
| Glue Extrusion Accuracy | ±1% |
| Glue Container Capacity | 30L 304 Stainless Barrel |
| Glue Viscosity | Max≤20000CPS |
| Glue Additive Proportion | MAX≤100(Glue):100(Additive)(1:1) |
| Glue Additive Size | Max≤400tsp |
| Control Mode | PLC+Handhold Teaching Programming Case+Touch Screen |
| Programming | Teaching Programming |
| Program Capacity | At least 100 unit, 4000 points/unit |
| Transmission Method | Steeping Motor+Synchronous Belt+Linear Guide-way |
| Working Pressure | 0.5-0.8Mpa |
| Working Power | AC220V 50HZ/2000W(stirring,vacuuming, heating not included) |
| Working Temperature | 0-40℃ |
| Working Humidity | 20-90% no condensation |
| Dimension | 2280*1380*1500mm(WxDxH) |
| Weight | About 350KG |
| Optional Functions | Glue container stirring, pre-heating, vacuum degassing, self-cleaning |

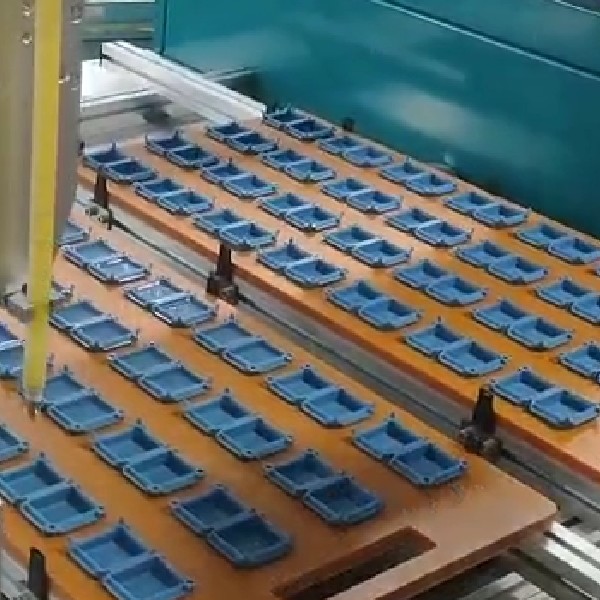

Machine Details
|
