| Name: | Double Axis Roller Linear Guide |
| Material: | Aluminum |
| Application Areas: | CNC Machining Parts |
| Model number: | LGD |
| Aookucation: | CNC Machining Parts |
| Color: | silver gray |
| customize: | support |
| Company Info. |
| SXEGL Intelligent Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
High Precision Ball Slider Linear Guides With Double Axis Guide Rail
SEXGL specializes in manufacturing high-performance linear guides that redefine reliability in industrial automation. Trusted by global partners like BYD (electric vehicle production) and BOE (display manufacturing), our linear motion systems power operations across North America, Europe, Southeast Asia, South America, and South Korea.
Characteristics
Precise and smooth:Using a linear guide rail as a guide, it is not easy to slide and has high positioning accuracy.
Premium Quality:Durable and corrosion-resistant, thickened material is not easily damaged, sturdy and durable, precision carving, high precision, strong steel
Quality craftsmanship:Improve product accuracy and service life, improve efficiency, high quality and durability, professional testing, smooth and wear-resistant so you can use it with confidence
High-quality materials:High-quality materials resist delay and improve cost savings
Saber structure:Carefully selected materials, smooth surface, low friction, high precision, low noise and not easy to use, long service life.

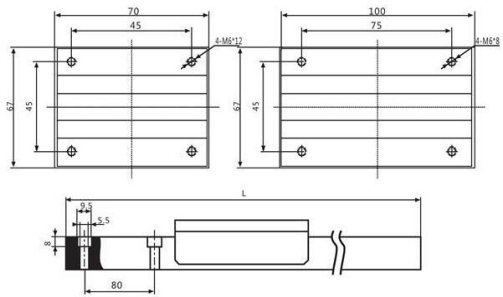

| Type | H | W | WR | H1 | T | B | L | C | L1 | C1 | M | P | D | h | d | HR |
| LGD/6 | 29 | 60 | 26 | 26 | 12 | 38 | 60 | 40 | 100 | 75 | M5*3 | 60 | 9.5 | 6.5 | 5.5 | 17.8 |
| LGD/8 | 33 | 67 | 30 | 27.5 | 14 | 45 | 70 | 45 | 100 | 75 | M6*12 | 80 | 9.5 | 8 | 5.5 | 21 |
| LGD/12 | 39 | 80 | 36 | 35 | 12 | 54 | 100 | 76 | 140 | 116 | M6*12 | 100 | 10.5 | 8 | 6.5 | 25.5 |
| LGD/16 | 50 | 120 | 50 | 45 | 14 | 90 | 150 | 120 | 190 | 150 | M8*14 | 80 | 14 | 10 | 8.5 | 33 |
| Type | Size(mm) | ||||||||||||
| W | G | A | B | T | M | J | K | S2 | C | S1 | N | P | |
| SBR12S | 41 28 | 9 30 | 4 39 | 28 | 26 φ4.0 | 22 | M5 100 | ||||||
| SBR16S | 45 | 33 | 9 | 40 | 5 | 45 | 32 | 30 | φ5.5 | 30 | M5 | 150 | |
| SBR20S | 48 | 39 | 11 | 45 | 5 | 50 | 35 | 35 | φ5.5 | 30 | M6 | 150 | |
| SBR25S | 60 | 47 | 14 | 55 | 6 | 65 | 40 | 40 | φ6.6 | 35 | M6 | 200 | |
| SBR30S | 70 | 56 | 15 | 60 | 7 | 70 | 50 | 50 | φ6.6 | 40 | M8 | 200 | |
| SBR35S | 80 | 63 | 18 | 65 | 8 | 80 | 55 | 55 | φ9 | 45 | M8 | 200 | |
| SBR40S | 90 | 72 | 20 | 75 | 9 | 90 | 65 | 65 | φ9 | 55 | M10 | 200 | |
| SBR50S | 120 | 90 | 25 | 95 | 11 | 110 | 94 | 80 | φ11 | 70 | M10 | 200 | |
Support Designation | Shaft Dimensions | Size Dimensions(mm) | Weight (kg/m) | ||||||||||
| E | h | B | H | T | F | X | Y | C | S1 | S2 d1xd2X1 | |||
| SBR10 φ10 16 | 21 30 36 4 12.5 | 4.7 12 22 φ4.5 5X9X5 1.5 | |||||||||||
| SBR12 | φ12 | 16 | 22 | 30 | 39 | 4 | 12.5 | 4.7 | 12 | 22 | φ4.5 | 5X9X5 | 1.7 |
| SBR13 | φ13 | 16 | 22.5 | 30 | 39.5 | 4 | 12.5 | 4.7 | 12 | 22 | φ4.5 | 5X9X5 | 1.8 |
| SBR16 | φ16 | 20 | 25 | 40 | 45 | 5 | 18.5 | 8 | 11.7 | 30 | φ5.5 | 5.5X9.5X5.4 | 2.58 |
| SBR20 | φ20 | 22.5 | 27 | 45 | 50 | 5 | 19 | 8 | 10 30 | φ5.5 | 5.5X9.5X5.4 3.58 | ||
| SBR25 | φ25 | 27.5 | 33 | 55 | 60 | 6 | 21.5 | 8 | 12 | 35 | φ6.6 | 6.6X11×6.5 | 5.4 |
| SBR30 | φ30 | 30 | 37 | 60 | 70 | 7 | 26.5 | 10.3 | 13 | 40 | φ6.6 | 6.6X11×6.5 | 7.5 |
| SBR35 | φ35 | 32.5 | 43 | 65 | 80 | 8 | 28 | 13 | 15.5 | 45 | φ9 | 9X14X8.6 | 10 |
| SBR40 | φ40 | 37.5 | 48 | 75 | 90 | 9 | 38 | 15.5 | 17 | 55 | φ9 | 9X14X8.6 | 13 |
| SBR50 | φ50 | 47.5 | 62 | 95 | 115 | 11 | 45 | 20 | 21 | 70 | φ11 | 11X17.5X10.8 | 21 |
|
