SGR SGB Double Axis Roller Linear Guide High Rigidity Linear Guide Rails For CNC

High Rigidity Dual Axis Linear Guide Rails Designed for CNC

SEXGL specializes in manufacturing high-performance linear guides that redefine reliability in industrial automation. Trusted by global partners like BYD (electric vehicle production) and BOE (display manufacturing), our linear motion systems power operations across North America, Europe, Southeast Asia, South America, and South Korea.

Product Features

1. Dual-Axis Design for Enhanced Stability

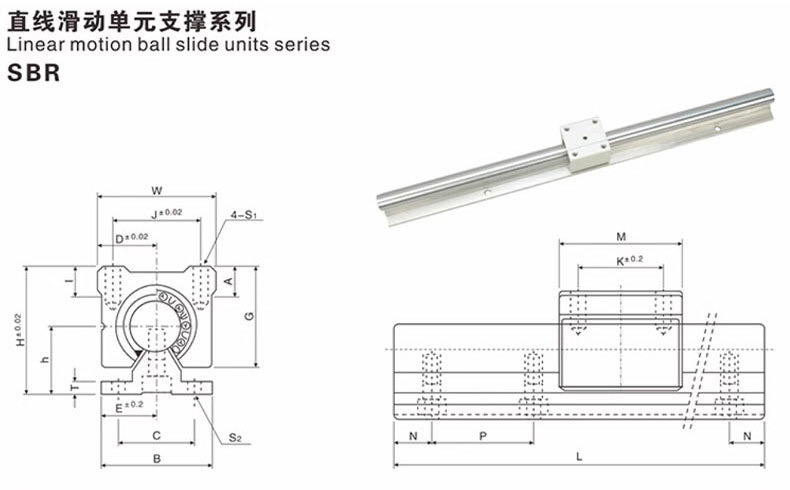

   The SBR/SGB series features a dual-axis configuration with parallel guide rails and carriages, providing superior load distribution and resistance to lateral forces.
2. High Rigidity & Low Friction
   Constructed with precision-ground steel rails and recirculating ball/roller bearings, the SBR/SGB series achieves high rigidity (up to 20 kN) and low friction coefficients (μ ≤ 0.002), minimizing energy consumption and wear. The SBR variant uses roller bearings for heavy-duty applications, while the SGB employs dual-axis roller wheels for high-speed, low-noise operation.
3. Self-Aligning Capability
   The SGB model incorporates adjustable eccentric wheels, allowing users to eliminate clearance and achieve zero backlash through simple preload adjustments.
4. Interchangeability & Easy Maintenance
   The modular design enables quick replacement of individual components (rails, carriages, or bearings) without disassembling the entire system.
5. Corrosion Resistance
   Both SBR and SGB variants are available with anodized aluminum alloy or stainless steel components, offering excellent corrosion resistance for use in harsh environments such as medical equipment, food processing, and semiconductor manufacturing.

SXEGL main products include: synchronous belts, synchronous wheels, couplings, support seats, light conveyor belts, linear guides, linear sliders, ball screws, linear modules, slides, synchronous motors, servo motors, servo cylinders, linear actuators, etc.SXEGL specializing in the research and development, manufacturing and sales of automation industrial products. The company's It has established long-term and stable cooperative relations with more than 1,560 Chinese industrial enterprises including: Foxconn, Jabil Electronics, Hongya Group, Han's Laser, Changyu Machinery, BOE China Shipbuilding Industry Corporation, China Institute of Physical Engineering, Changan Automobile, CATL, etc. The products are sold to 73 countries around the world and have as many as 600 international cooperative customers. The company has an 8,000-square-meter constant temperature workshop and many cutting-edge industrial machine tools. The company has a 34-person technical R&D team with many years of technical R&D and after-sales experience. It has a high-quality and experienced technical team to help customers select models, optimize solutions, and provide after-sales service and other technical support.
SXEGL is committed to building China's most cost-effective automation industrial products and supply chain brand, always serving customers with excellent prices and quality, and moving towards becoming an outstanding enterprise in the field of industrial automation transmission.
