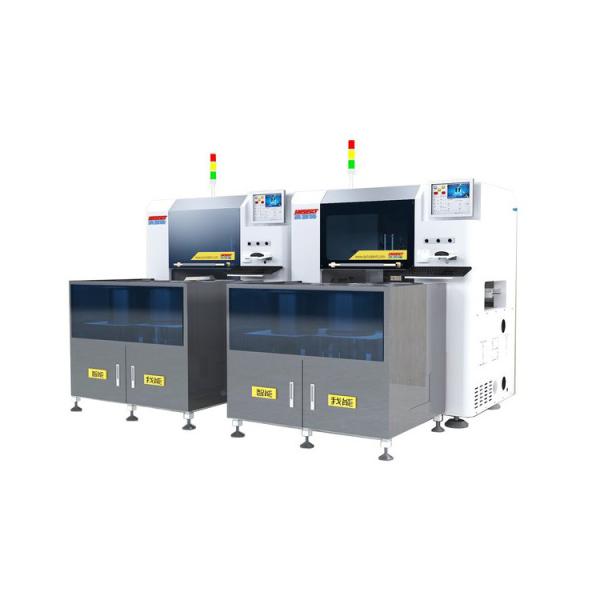

Automatic DIP Universal Radial Insertion Machine Axial Insertion Machine

Categories Automatic Insertion Machine
Brand Name: INSERT
Model Number: IST-F6000-4
Certification: CE
Place of Origin: China
MOQ: 1
Price: 25500USD
Payment Terms: T/T
Supply Ability: The production capacity is 200 units a month
Delivery Time: 5-15
Packaging Details: Vacuum packing plus wooden box packing
Name: THT DIP Components Insertion Machine
Brand name: INSERT
Model number: IST-F6000-4
Product name: Full Automatic THT DIP Components Insertion Horizontal Plug-in Machine
Maximum board size: 400mm x 450mm
Theoretical velocity: 6000 CPH / hour
Component specifications: Maximum height: 50mm / Maximum weight: 0.3KG
Use power: 220V, AC (single phase) 50 ≤ 60Hz, 2.0KVA 1.6KW
Weight: 1500 KG
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Automatic DIP Universal Radial Insertion Machine Axial Insertion Machine

High Speed Automatic SMT Insert Chip Mounter IST-F6000-4 and Plug-in Automatic Pin Insertion Machine For DIP Production Line


Product Introduction

The F6000-4 series machines are the latest and most practical special-shaped plug-in machines, with independent multiple sets of servo control systems and high-precision visual
capture systems, achieving high and stable plug-in performance, achieving perfect effects of
high speed and high density. The system can be upgraded to lay a solid foundation for updating
and accelerating your equipment. A simple and easy to understand operating platform enables
human-machine interface dialogue, and the combination of practical experience and scientific
theory brings you the improvement of product quality and production efficiency


Product Specification

IST-F6000-4
Theoretical velocity6000 CPH/hour
Plug-In drection
0-360 degree inaemert 1 degree
Quantity of insertion4
Subshale sizeMinimum 50mm*50mm up to 400mm*450mm exceeding selecfon of F300D Seies equipment
Substrate thicknes0.59-2.36mm
Component specificationsThe maximum height is 50mm and the maximum weight is 03KG
Material staion channel1-4
Feed modeBraided Feida,tube mourted Feida,automafic pallet,vibraion disc(aptianal)
Mode of insertionMechanicad dampng
PCB protecionPressure prolecian
PCB visianMARK Poirt and demert Hole matding Veian
system
Materid visianNeede fp surface recognifon
Equipment shape size (length X widthX heigh)Hast size:1600mmx 1600mmx 1900mm
Mateda station sire:800mmx 800mmx 600mm
Machine weigh1500KG
Use power I power220V.AC(singe phase)50 s60Hz,2.0KVA 1.6KW(enengy saing type)
System protecianBuil-in sot prolection
Use vdtage/gas cansumpfon0.6-0.8Mpa/0.3 cubic/mnute
Use of ambient lemperaure5-30 degrees
Macine ndise50 decds
Hde pasihan comecfian modeMachine visian systen,multi-pairt MARK vision correcian
Drie sysbemAC serva,AC mdta
Data irput modeUSB interface input(EXCE dacument format)
Crauit baard transportafian modeAutomafc upper and lower board let to right right to let opfonal

Applications:

Widely used in electronics manufacturing, consumer electronics, automobile electronics, communications equipment, aerospace, medical equipment, LED lamps, computers and peripherals, smart home, smart logistics, miniature and high power ratio electronic devices.
