| Categories | Automatic Insertion Machine |
|---|---|
| Brand Name: | INSERT |
| Model Number: | IST-M6000 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | 21000 USD |
| Payment Terms: | T/T |
| Supply Ability: | The production capacity is 200 units a month |
| Delivery Time: | 5-15 |
| Packaging Details: | Vacuum packing plus wooden box packing |
| Name: | THT DIP Components Insertion Machine |
| brand name: | INSERT |
| model number: | IST-M6000 |
| Product name: | Plug-in Components Insertion DIP Machine |
| Maximum board size: | 400mm x 400mm |
| Theoretical velocity: | 9000 CPH / hour |
| Component specifications: | Maximum height: 18mm |
| Use power: | 220V, AC(single-phase) 50/60HZ, 2.OKVA ≤ 2.2KW |
| Weight: | 1800 KG |
| Company Info. |
| Shenzhen Hongxinteng Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Introduction of Metal Spring Insert Machine
Metal Spring Inserter is a kind of mechanical equipment which is
specially used to insert metal spring automatically. It plays an
important role in electronic power supply industry and other
industries which need precision metal spring assembly.
Function and application of metal spring insert machine
Hardware Spring plug-in machine is mainly used to solve the manual
plug-in process of low efficiency, poor consistency and other

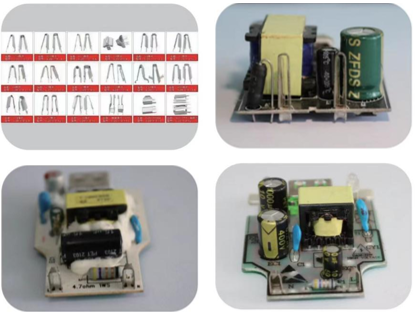

issues. This kind of machine can adapt to various types of elastic
pieces, such as ordinary elastic pieces, clips, AC elastic pieces,
charger elastic pieces, etc. , suitable for electronic power supply
industry and other application scenarios. Through automatic
plug-in, can greatly improve production efficiency, reduce human
error, improve product quality.
Types of metal spring inserters
There are many types of hardware plug-in machines on the market,
including but not limited to vertical plug-in machine, horizontal
plug-in machine, shaped plug-in machine. These machines can be
customized according to different production requirements to meet
the assembly requirements of specific products. For example, the
INSERT brand plug-in machines are available in vertical and online
horizontal models to meet the production needs of different
customers.
Advantages of metal spring inserter
The use of metal shrapnel insert machine can bring many advantages.
First, it can significantly improve production efficiency and
reduce labor costs. Secondly, the automatic plug-in can ensure the
quality and consistency of the product, reduce the defective rate.
In addition, these machines often have a high degree of flexibility
to adapt to different specifications and shapes of metal shrapnel,
thus improving the adaptability and flexibility of the production
line.
| IST-M6000 | |
| Theoretical velocity | 9000CPH/hour |
| Plug-in direction | Arbitrary angle |
| PPM | 500ppm |
| Substrate size | Minimum 50mm*50mm up to 400mm*400mm |
| Substrate thickness | 0.79-2.36mm |
| Component height | maximum height is 18mm |
| Component type | Hardware shrapnel AC clip |
| Foot bending mode | External bending |

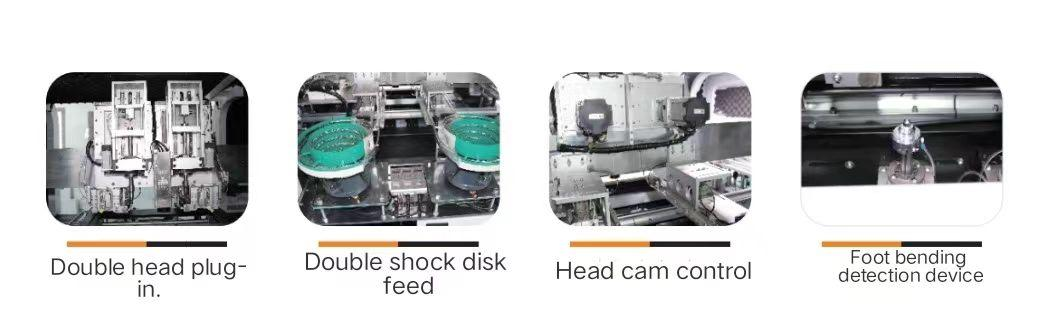

| Plug-in mode | Altemate plug-in at both ends |
| The way of feeding | Two sets of vibrating disks |
| Equipment shape size(lengthX width X height) | Host size 1700mm*1500mm*1800mm |
| Machine weight | 1800KG |
| Use power /power | 220V,AC(single-phase)50:60HZ,2.OKVA≤2.2KW(energy-saving) |
| System protection. | Built-in soft protection |
| Use voltage /gas consumption | 0.6-0.8Mpa/0.3 cubic/minute |
| Use of ambient temperature | 0-25 degrees |
| Machine noise | 75 deabels |
| Hole position correction mode | Machine vision system,multi-point MARK vision correction |
| Drive system | AC servo,AC motor |
| Data input mode | USB interface input(EXCEL document format) |
| Control system | Chinese operating interface(Win7 system control platform)liquid crystal display |
| Element density | 3mm spacing between component bodies |
| Circuit board transportation mode | Automatic upper and lower board left to right to left |
|
