White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface

White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface

White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface
White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface
Categories OLED LCD Display
Brand Name: ESEN
Model Number: TX096PM2864-1
Certification: ISO9001/ISO14001
Place of Origin: Shenzhen China
MOQ: 1000PCS
Price: Please make an enquiry
Payment Terms: T/T,L/C
Supply Ability: 300K/mth
Delivery Time: 2-4 weeks
Packaging Details: All the products are packed in right way
Display Mode: Passive Matrix
Display Color: Monochrome (Yellow＆Blue)
Drive Duty: 1/64 Duty
Outline Drawing: According to the annexed outline drawing
Number of Pixels: 128 x 64
Panel Size: 26.70 x 19.26 x 1.25 (mm)
Active Area: 21.74 x 11.2(mm)
Pixel Pitch: 0.17 x 0.17(mm)
Pixel Size: 0.15 x 0.15 (mm)
Driver IC: SSD1306
FP C Numbe: NFP1306-133
Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
Luminance: 100cd/m2
FPC Connecting Mode: 30 Pin Soldering FPC
Weight: 1.54 (g)
Datasheet: Please contact service
Contact Now
Company Info.
ESEN HK LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface

White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface
Product Specifications
AttributeValue
Display ModePassive Matrix
Display ColorMonochrome (Yellow＆Blue)
Drive Duty1/64 Duty
Number of Pixels128 x 64
Panel Size26.70 x 19.26 x 1.25 (mm)
Active Area21.74 x 11.2(mm)
Pixel Pitch0.17 x 0.17(mm)
Pixel Size0.15 x 0.15 (mm)
Driver ICSSD1306
FP C NumberNFP1306-133
Interface8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
Luminance100cd/m2
FPC Connecting Mode30 Pin Soldering FPC
Weight1.54 (g)
Product Details

0.96 Inch 128x64 White Blue Color Mono OLED Display with 30Pin Monochrome PMOLED Screen Panel featuring SSD1306 SPI/I2C Interface (Model: X096-2864TMBEG03AT-H30). This folding type OEL display module features COG package with pixel number of 128 x 64.

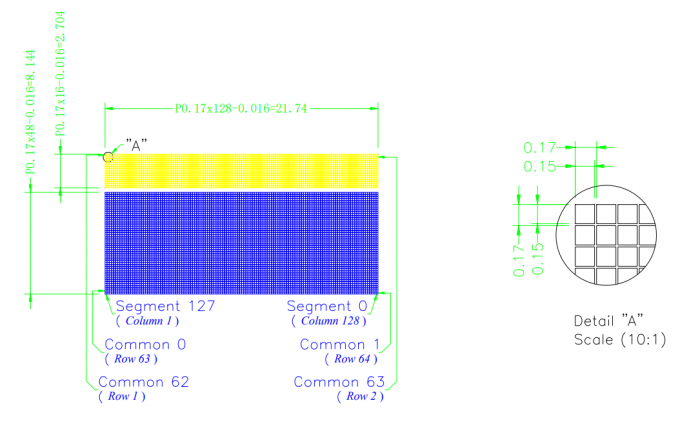

Active Area & Memory Mapping
White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface 0

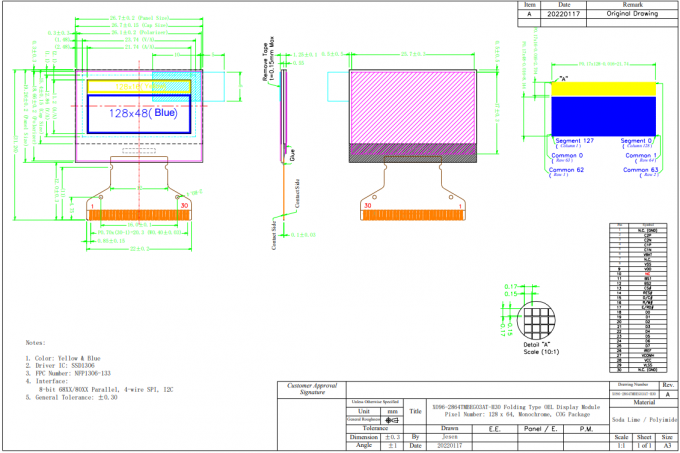

Mechanical Drawings
White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface 1 White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface 2 White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface 3 White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface 4

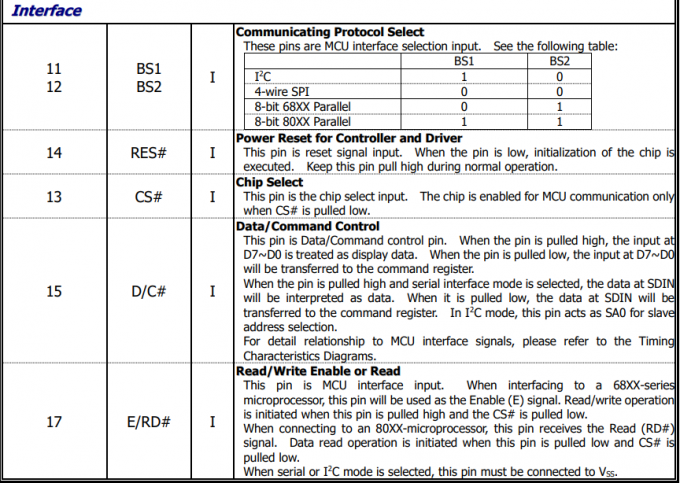

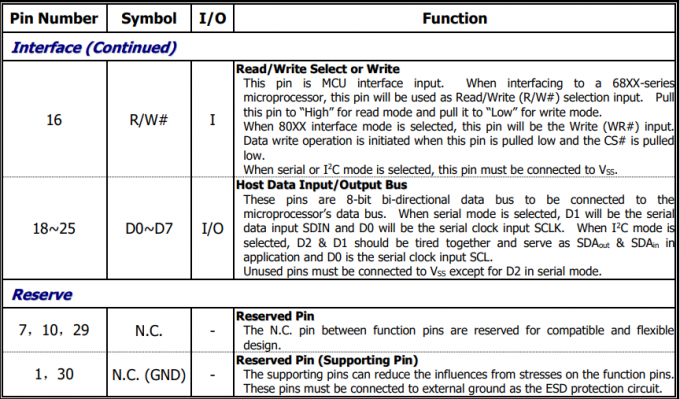

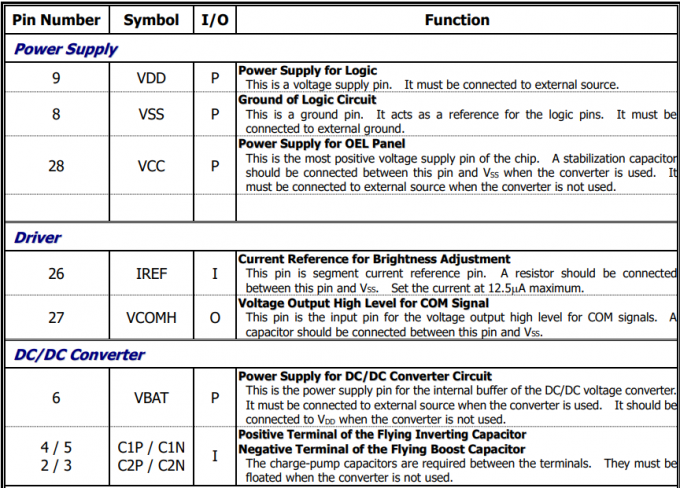

Technical Specifications
White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface 5 White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface 6
Frequently Asked Questions
How can I find the right product?
Please send us your requirements, we will recommend our standard products. If they don't fit, we will make necessary adjustments and customizations.
How to customize the product?
Customization process: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost evaluation → Customer confirmation → Provide drawing → Customer confirmation → Sampling → Customer approval → Mass production.
Do you accept sample orders or small quantity orders?
Yes, you can place sample orders for testing first, and small quantity orders as pilot production (no less than MOQ).
What are the payment terms?
We usually accept T/T, PayPal, with other terms negotiable.
What's the lead time?
Typically 3-5 days for sample orders if goods are in stock, and 4-5 weeks for mass production (based on quantity and product).
