| Categories | OLED LCD Display |
|---|---|
| Brand Name: | ESEN |
| Model Number: | N050-8848TSWYG02-H14 |
| Certification: | ISO9001/ISO14001 |
| Place of Origin: | Shenzhen China |
| MOQ: | 1000PCS |
| Price: | Please make an enquiry |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 300K/mth |
| Delivery Time: | 2-4 weeks |
| Packaging Details: | All the products are packed in right way |
| Size: | 0.5 inch |
| Display Mode:: | Passive Matrix |
| Display Color: | Monochrome (White) |
| Drive Duty: | 1/48 Duty |
| Outline Drawing: | According to the annexed outline drawing |
| Number of Pixels: | 88 × 48 |
| Panel Size: | 8.928 × 17.1 × 1.227 (mm) |
| Active Area: | 6.124 × 11.244 (mm) |
| Pixel Pitch: | 0.128 × 0.128 (mm) |
| Pixel Size: | 0.108 × 0.108 (mm) |
| Company Info. |
| ESEN HK LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
0.5'' Passive Matrix OLED LCD Display Monochrome OLED LCD
Active Area / Memory Mapping & Pixel Construction

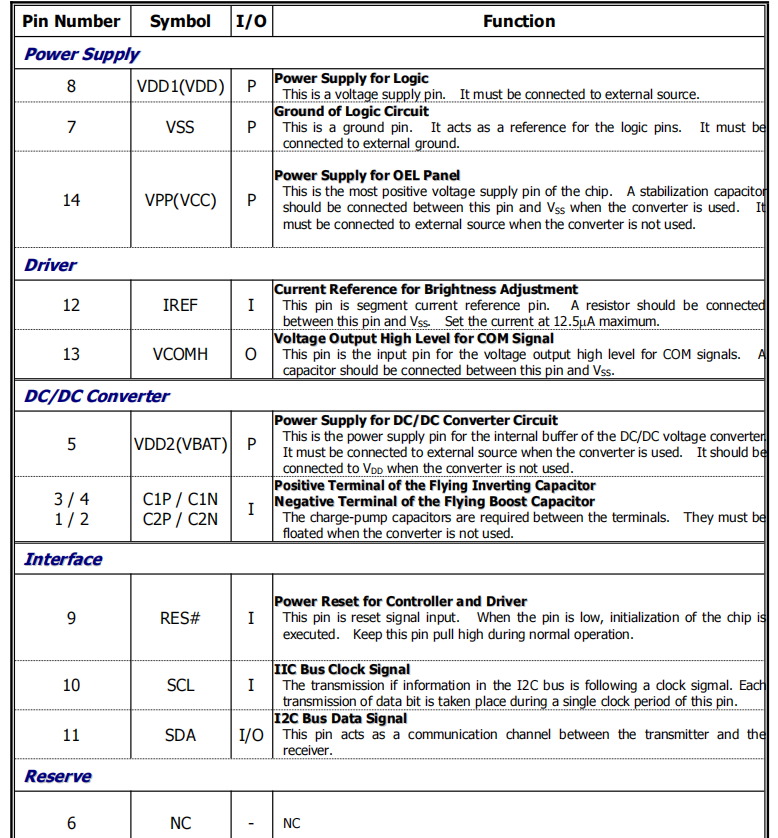

Pin Definition
| Parameter | Symbol | Min | Max | Unit | Notes |
| Supply Voltage for Logic | VDD1 | -0.3 | 3.6 | V | 1,2 |
| Supply Voltagefor Display | VPP | -0.3 | 14.5 | V | 1,2 |
| Supply Voltage for DC/DC | VDD2 | -0.3 | 4.8 | V | 1,2 |
| Operating Temperature | TOP | -40 | 85 | °C | |
| Storage Temperature | TSTG | -55 | 125 | °C | 3 |
| Life Time(380cd/m2) | 10,000 | - | hour | 4 | |
| Life Time(300cd/m2) | 30,000 | - | hour | 4 | |
| Life Time(240cd/m2) | 50,000 | - | hour | 4 |
Q: If there is a problem with the product, what is the after-sales
service like?
A: If customers encounter any technical problems during use, our
after-sales service team will provide remote online technical
support to ensure that customers can solve the problem smoothly.
Q: How to customize the product?
A: Customers can customize the module shape, backlight brightness,
LCD interface, etc. according to their own needs. We will provide
personalized solutions according to the specific requirements of
customers.
Q: How to get technical support?
A: If customers need technical support when using TX080HD-30MB-CT,
they can contact our technical team by email, and we will reply
within 24 hours.
Q: Do you provide samples?
A: Yes, we support sample application, and customers can get
samples for testing and evaluation before placing an order.
|
