Bolt Down Welded Steel Palisade Fencing Free Standing Edging With Base Plates

Categories Steel Palisade Fencing
Brand Name: YUANHAI
Model Number: YH-PFW
Certification: ISO9001
Place of Origin: CHINA
MOQ: 10Sets
Price: $5.5-13.6/㎡
Supply Ability: 5000Sets Per Month
Packaging Details: Powder Coated Frame Finishing And Fencing Trellis & Gates Type Palisade Fence Water Proof Paper+Pallet.Custom Packaging Is Also Available According To Your Details
Material: Pre Hot-dipped galvanized tube
Frame Material: Metal
Frame Finishing: Powder Coated
Service: 10 Years Of Export Experience, More
Sample: Free Of Charge
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Bolt Down Welded Steel Palisade Fencing Free Standing Edging With Base Plates

Pvc Coated Secrity Palisade Fence / Euro Fence / Garden Fence


1. Type Standard Configuration
Panel HeightPalesO/C SpacingRails
813 ga.5-15/16"2" TS x 14 ga.
1013 ga.5-15/16"2" TS x 14 ga.
1213 ga.5-15/16"2" TS x 14 ga.
2. Type Standard Configuration

Post


Optionally available with base plates for bolt-down or cranked over walls. Also available with bracket extensions for barbed wire or razor wire.

Size: 100 x 55mm/100 x 44mm

Rails


Steel angle rails punched for pale attachment. Connected with 12mm square cup bolts and anti-vandal permacone (snap-off) nuts.

Size: 40mm x 40mm/ 45mm x 45mm/ 50mm x 50mm

Pale tops


Split-tripple point or single point for high security.

Rounded or rounded and notched for ety.


Fittings


Rails and pales are fitted using 'rivets & collars' or rounded bolts with permacone nuts (snap-off / anti-vandal).

Link Plates


Link plates, AKA 'Fish Plates' fit through the holes is the steel fencing posts and join the rails together.

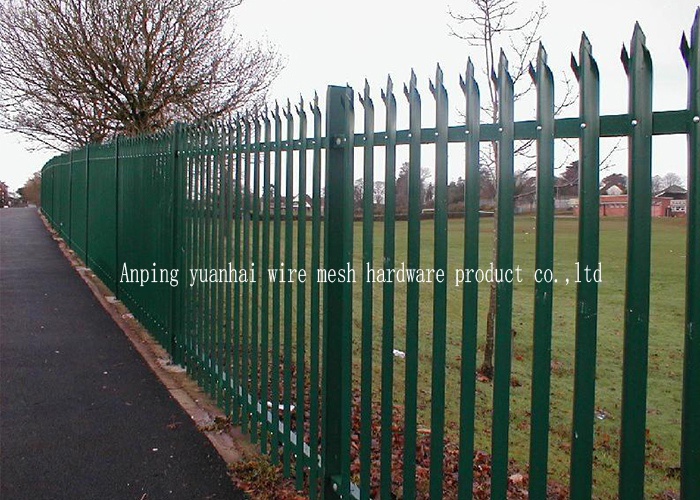

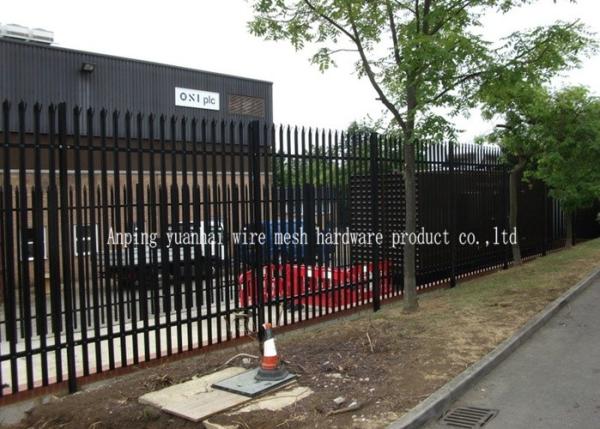

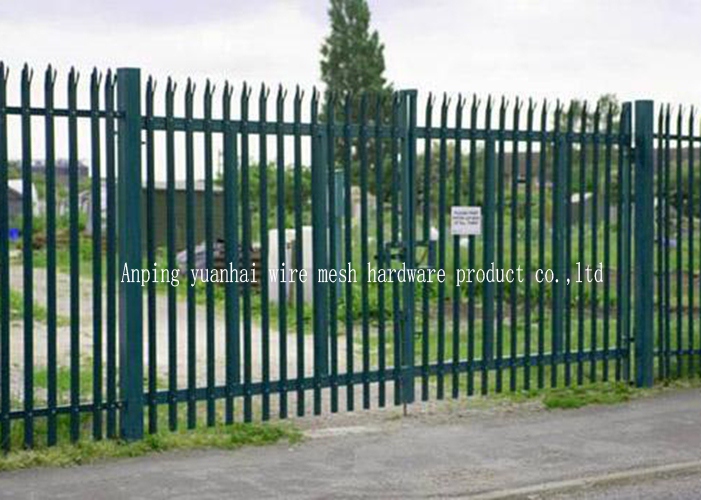

* Steel palisade fencing provides maximum protection against vandals and intruders.

* Cold rolled steel pales are attached to horizontal steel rails, which in turn are attached to vertical steel RSJ's, which are concreted or secured with plates or brackets.

* This amounts to a virtually impenetratable steel barrier that is available in heights of up-to 3.2 metres. Palisade fencing is a good choice when considering security, versitility, low maintenance, and value for money.
