HTG3515CH Temperature and Humidity Sensor for Precise Measurements

Categories Humidity Temperature Sensor
Model Number: HTG3515CH
Place of Origin: France
MOQ: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs
Delivery Time: 3-5work days
Packaging Details: Paper box
Voltage Supply: 5 Vdc
Nominal Output @55%RH: 2.401~2.559 V
Humidity Average Sensitivity: +26 mV/%RH
Current consumption: 1.2 mA dc
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

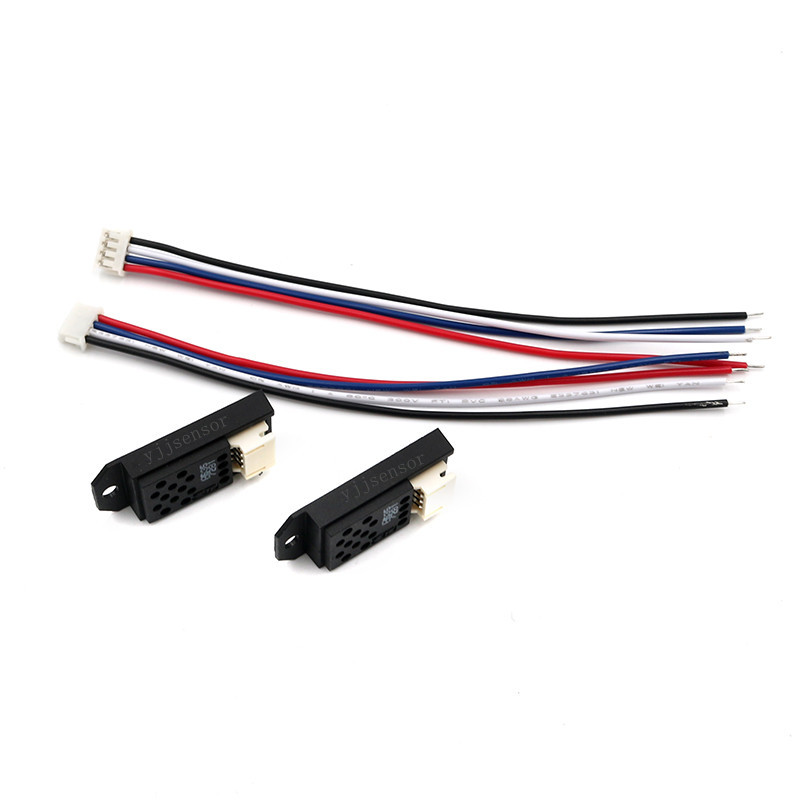

HTG3515CH Temperature and Humidity Sensor for Precise Measurements


HTG3515CH Voltage Output Temperature and Humidity Sensor


HTG3515CH Voltage Output Temperature and Humidity Sensor DESCRIPTION:
Based on the rugged HUMIREL humidity sensor, HTG3515CH is a dedicated humidity and temperature plug and play transducer designed for OEM applications where a reliable and accurate measurement is needed. Direct interface with a micro-controller is made possible with the module’s humidity linear voltage and direct NTC outputs. HTG3515CH is designed for high volume and demanding applications.

HTG3515CH Voltage Output Temperature and Humidity Sensor FEATURES:
• Voltage Supply: 5 Vdc
• Nominal Output @55%RH: 2.401~2.559 V
• Humidity Average Sensitivity: +26 mV/%RH
• Current consumption: 1.2 mA dc
• Humidity Measuring Range: 0~100 %RH
• Humidity Operating Range: 0~100%RH
• Temperature Operating Range: -40 ~110°C
• Suitable for small bulk assembly
• Product free from Lead, Cr (6+), Cd and Hg. Compliant with RoHS
• Full interchangeability. Better than +/-3%RH and +/-0.25°C
• Humidity calibrated within +/- 3% RH @ 55% RH
• Temperature measurement through NTC direct output
• Demonstrated reliability and long term stability
• Reliability not affected by repeated condensations

HTG3515CH Voltage Output Temperature and Humidity Sensor APPLICATIONS:
• Automotive
• Home Appliance
• Printers


Output impedanceZ 50 Ω
Current Consumption Icc3.2 mAdc
Humidity hysteresis+/-1 %RH
Temperature coefficient(10°C to 50°C) Tcc -0.05 -0.1 %RH/°C
