HTG3513CH Sensor 3.3 Vdc Voltage Output for Temperature and Humidity Measurement in 0-100 %RH Range

Categories Humidity Temperature Sensor
Model Number: HTG3513CH
Place of Origin: France
MOQ: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs
Delivery Time: 3-5work days
Packaging Details: Paper box
Voltage Supply: 3.3 Vdc
Nominal Output @55%RH: 1.462~1.568 V
Humidity Average Sensitivity: +18 mV/%RH
Current consumption: 1.0 mA dc
Humidity Measuring Range: 0~100 %RH
Temperature Operating Range: -40 ~110°C
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

HTG3513CH Sensor 3.3 Vdc Voltage Output for Temperature and Humidity Measurement in 0-100 %RH Range

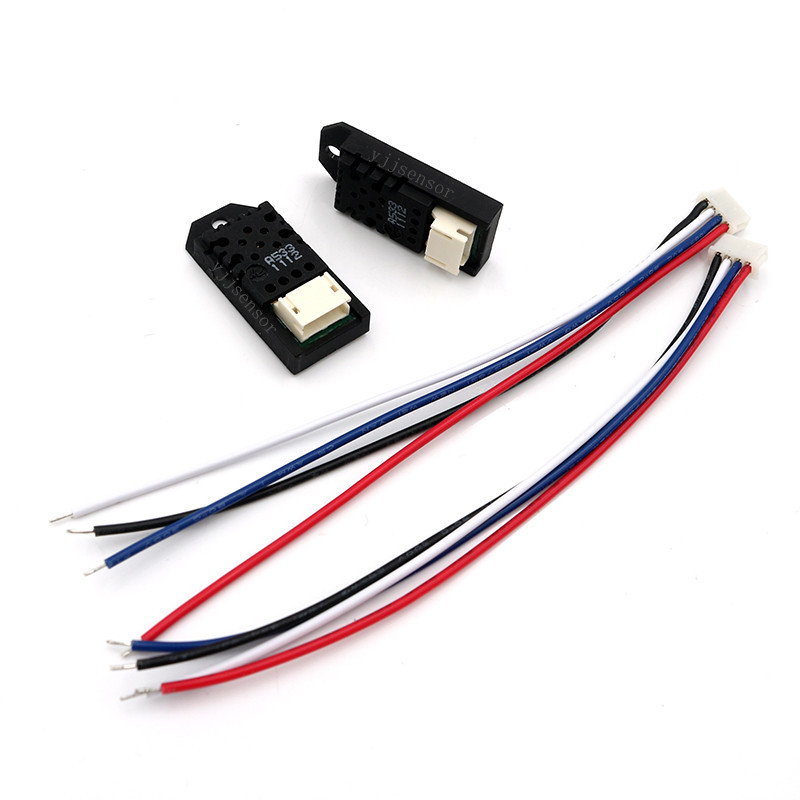

HTG3513CH Voltage Output Temperature and Humidity Sensor


HTG3513CH Voltage Output Temperature and Humidity Sensor DESCRIPTION:
Based on the rugged HUMIREL humidity sensor, HTG3513CH is a dedicated humidity and temperature plug and play transducer designed for OEM applications where a reliable and accurate measurement is needed. Direct interface with a micro-controller is made possible with the module’s humidity linear voltage and direct NTC outputs. HTG3513CH is designed for high volume and demanding applications.

HTG3513CH Voltage Output Temperature and Humidity Sensor FEATURES:
• Voltage Supply: 3.3 Vdc
• Nominal Output @55%RH: 1.462~1.568 V
• Humidity Average Sensitivity: +18 mV/%RH
• Current consumption: 1.0 mA dc
• Humidity Measuring Range: 0~100 %RH
• Humidity Operating Range: 0~100%RH
• Temperature Operating Range: -40 ~110°C
• Suitable for small bulk assembly
• Product free from Lead, Cr (6+), Cd and Hg. Compliant with RoHS
• Full interchangeability. Better than +/-3%RH and +/-0.25°C
• Humidity calibrated within +/- 3% RH @ 55% RH
• Temperature measurement through NTC direct output
• Demonstrated reliability and long term stability
• Reliability not affected by repeated condensations

HTG3513CH Voltage Output Temperature and Humidity Sensor APPLICATIONS:
• Automotive
• Home Appliance
• Printers


Humidity Operating Range0~100%RH
Temperature Operating Range-40 ~110°C
Humidity Average Sensitivity+18 mV/%RH
Current consumption1.0 mA dc
