High Current SMT Power Inductors 110A Shielded Choke Coil RoHS Directive Compliant

HCB0805 Series high current power inductors,SMD power inductors,Current up to 110A shielded choke coil

FEATURES:

1. High current carrying capacity
2. Low core loss
3. Inductance range from 32nH to 200nH
4. Current range from 20A to 110A
5. Ferrite core material
6. High temperature grades are available
7. RoHS Directive-compliant
8. UL insulation systems are available
9. Customized designs are accepted

APPLCATIONS:

1. Portable electronics
2. Servers and workstations
3. Data networking and storage systems
4. Notebook and desktop computers
5. Graphics cards and battery power systems
6. Multi-phase regulators
7. Voltage regulator module(VRM)
8. Notebook
9. Inkjet printer
10. Copying machine
11. ADSL modem
12. Display monitor
13. Video tape recorder
14. Video camera

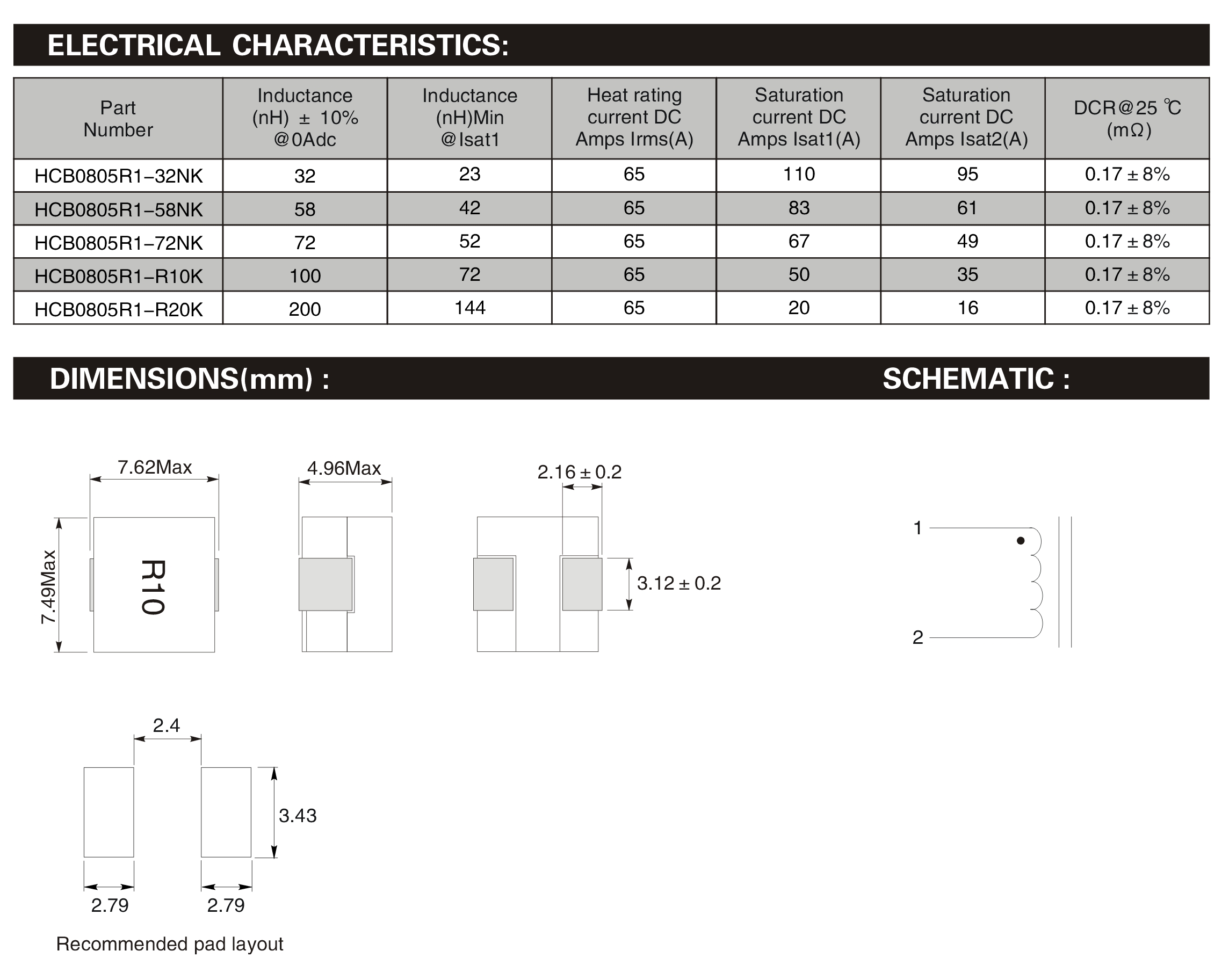

NOTES:

1. Test Frequency : 100KHz / 0.1V@25℃ (1MHz/0.1V for 22NM)
2. Irms: DC current for an approximate temperature rise of 40℃ without core loss
3. Isat1: Peak current for approximately 20% rolloff at +25℃
4. Isat2: Peak current for approximately 20% rolloff at +125℃
5. Operating temperature: -40℃ to +125℃(ambient plus self-temperature rise)
6. Storage temperature: -40℃ to +125℃

Note: Product specifications can be customized.
