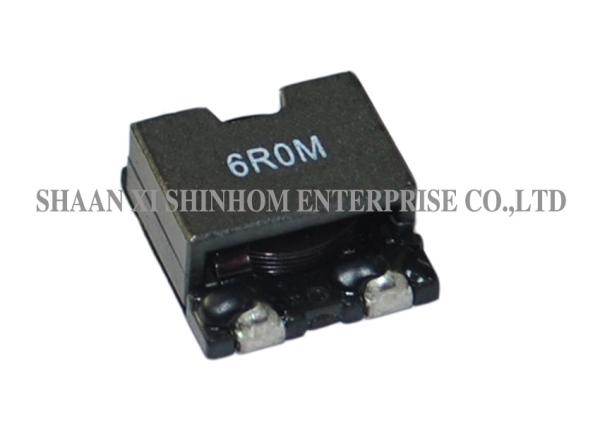

Surface Mount Low Profile High Current Inductor Excellent Thermal Stability

CEP104/105/124/125HT Series high current power inductors,Surface Mount Power Inductor,SMD High current power choke

FEATURES:

• High Frequency Design
• Shielded Constrution
• Flat wire used
• Excellent Thermal Stability
• Low Profile, Low DCR.
• Super Larg Current up to 28A
• Custom Inductors are available

APPLCATIONS:

• Notebook, DC/DC Converters
• Communication System
• Automotive Systems Power supplier
• LCD PDP Televisions
• Network Systems
• Computer Peripheral Equipment
• CPU Power Supply

NOTES:·

• Inductance Testing: HP4284A, 100kHz/1V or equivalent
• RDC:QuadTech 1880 Milliohmmeter
• Isat Current L value drop 65% typ.at IDC against its initial value
• Irms Temperature rise 40℃Max Reference Ambient temperature
• Solderability: 75% of the lead wire Shall be covered
• Soldering Methods: Wave,Reflow
• Operating Temperature:-40℃ to +105℃
• Storage Temperature: -55℃ to +125℃
• Terminal bending strength:24.5N Min
• Moisture resistance: △L/L≤±10% △Q/Q≤±25%

Note: Product specifications can be customized.
