Low Noise High Current Power Inductors , Shielded SMD Power Inductors

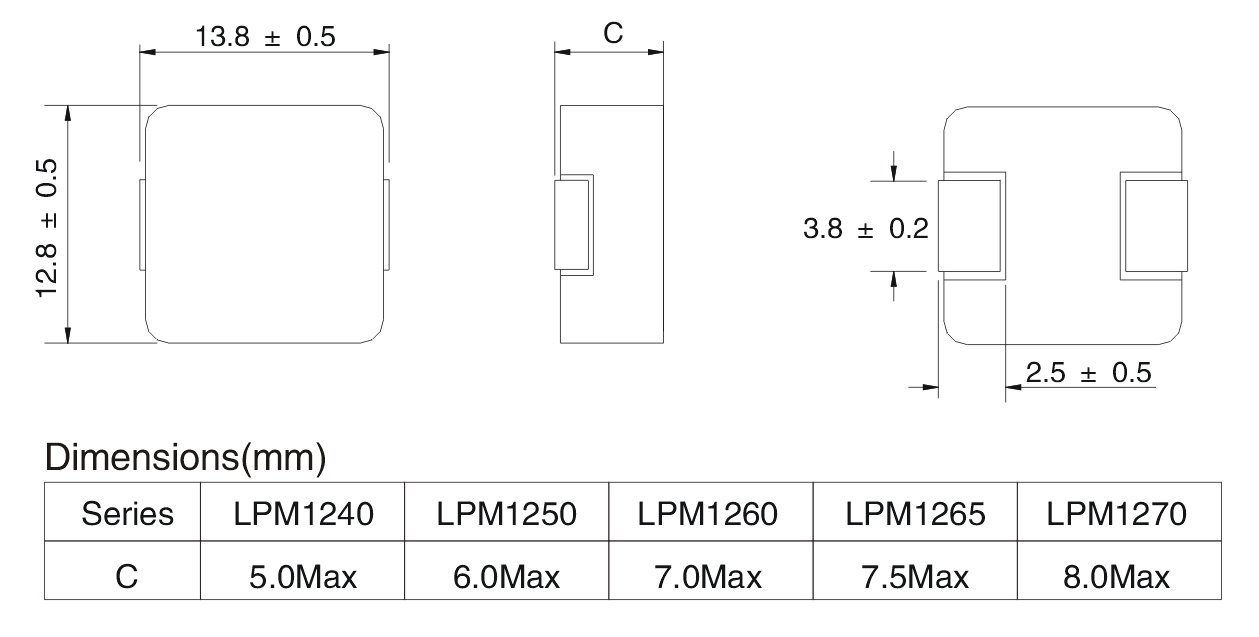

LPM1240/1250/1260/1265/1270 Series high current power inductors,Surface Mount choke coil,SMD inductor​

FEATURES:

• Handles high transient current spikes without saturation.
• Ultra low buzz noise, due to composite construction.
• Shielded construction
• Lowest height in this package footprint.
• Lowest DCR/H, in this package size.

APPLCATIONS:

• DC/DC converters in distributed power systems
• Applications usedin power switching
• Personal computers and other handheldelectronic equipment.
• PDA/notebook/desktop/server applications
• High current POL converters
• Low profile, high current power supplies
• Battery powered devices

NOTES:·

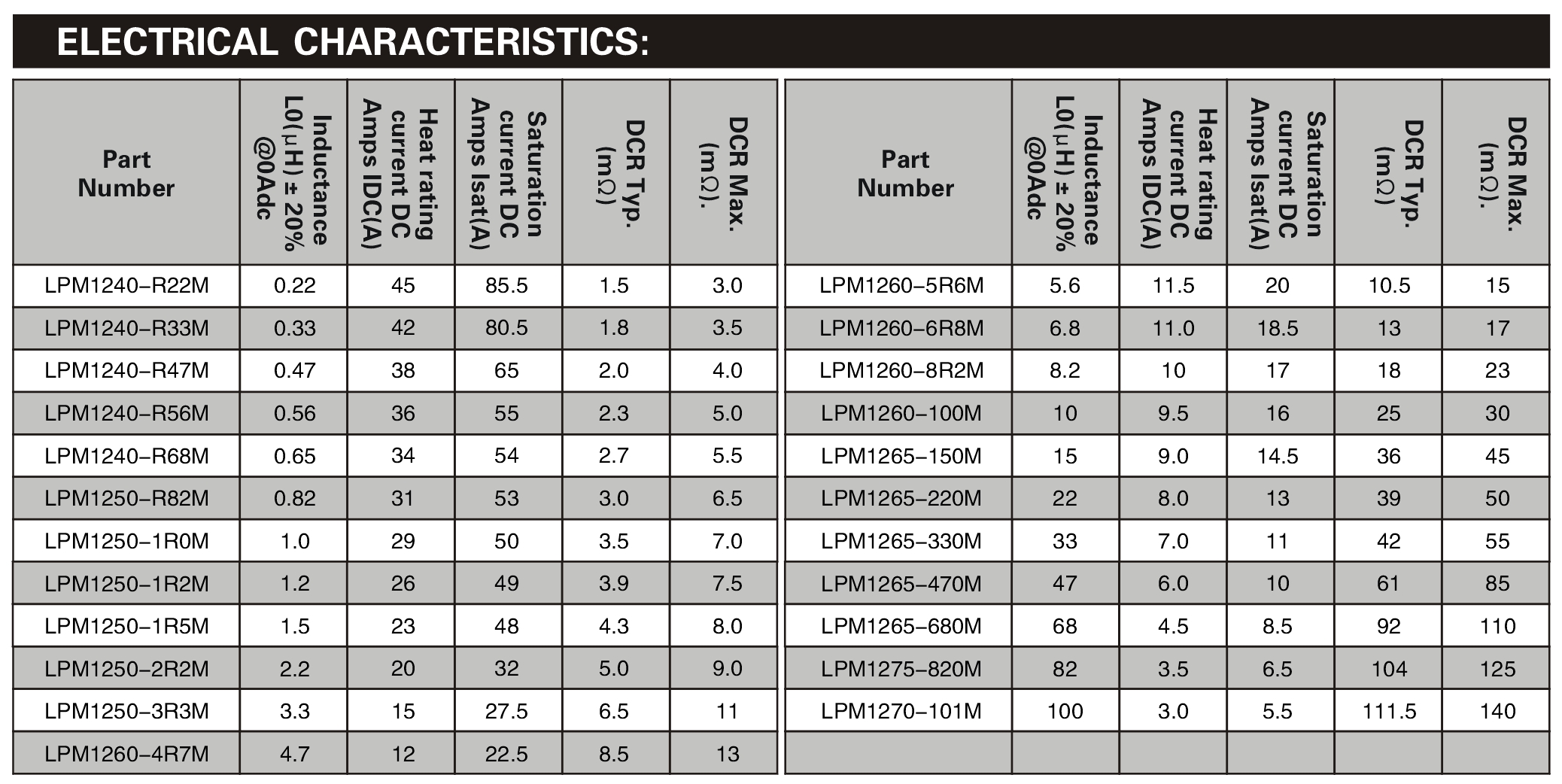

• Test Frequency : 100KHz / 0.25Vdc
• Heat Rated Current (Irms) will cause the coil temperature rise approximately,△T=40℃ without core loss.
• Saturation Current (Isat) will cause L0 to drop approximately 20%
• The part temperature (ambient + temp rise) should not exceed 125℃ under worst case operating conditions. Circuit design, component, PCB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application.
• Operating Temperature: -40℃ - +105℃.
• Storage Temperature: -40℃ - +105℃.

Note: Product specifications can be customized.
