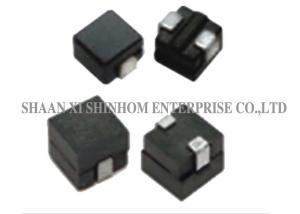

Portable Ferrite Core Inductor High Current Carrying Capacity Small Footprint

HCB0404/0505 Series high current power inductors,SMD power inductors,Current range 14A-40A

FEATURES:

· High current carrying capacity
· Low core loss
· Inductance range from 22nH to 110nH
· Current range from 14A to 40A
· Ferrite core material

APPLCATIONS:

· Portable electronics
· Servers and workstations
· Data networking and storage systems
· Notebook and desktop computers
· Graphics cards and battery power systems
· Multi-phase regulators
· Voltage regulator module(VRM)

NOTES:

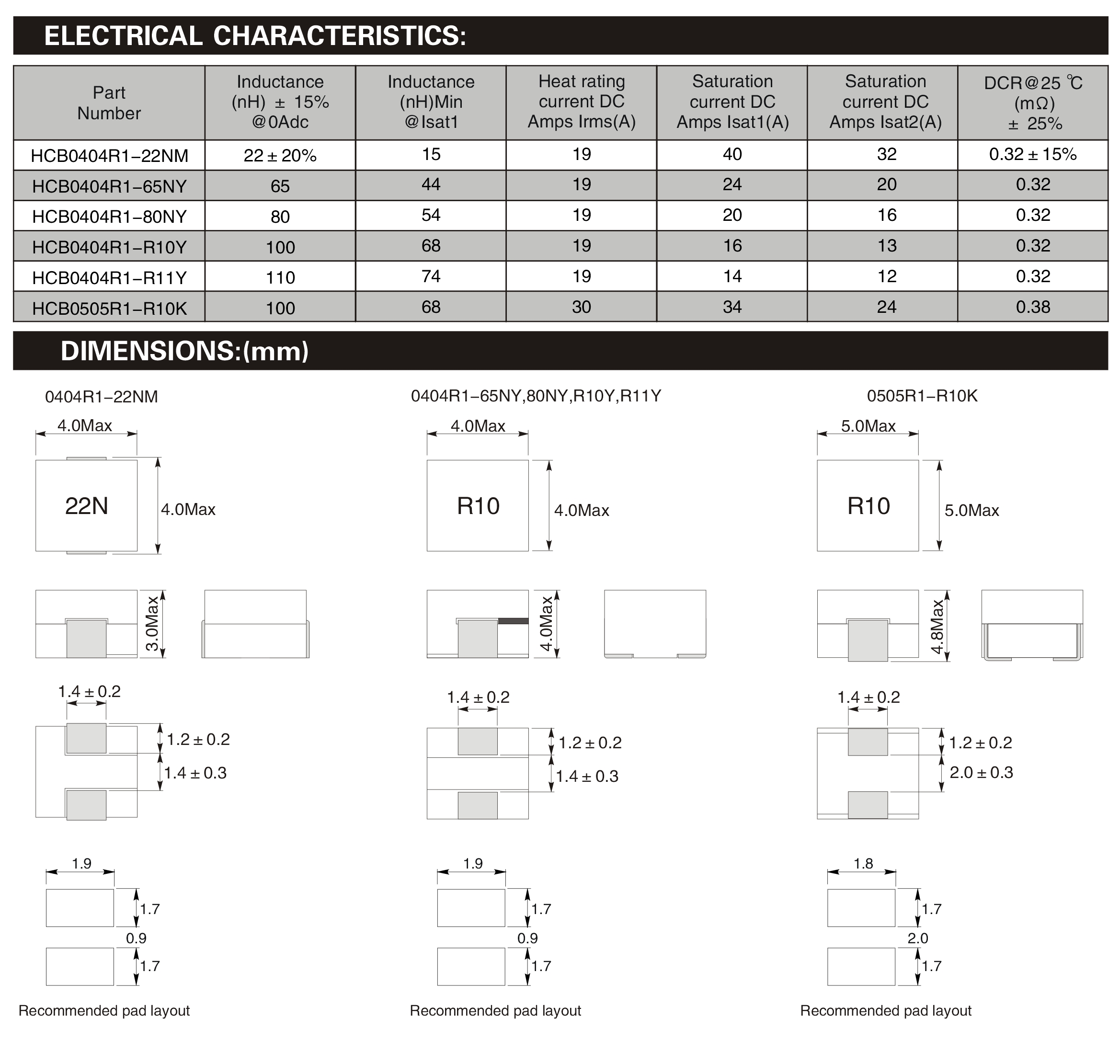

· Test Frequency : 100KHz / 0.1V@25℃ (1MHz/0.1V for 22NM)
· Irms: DC current for an approximate temperature rise of 40℃ without core loss

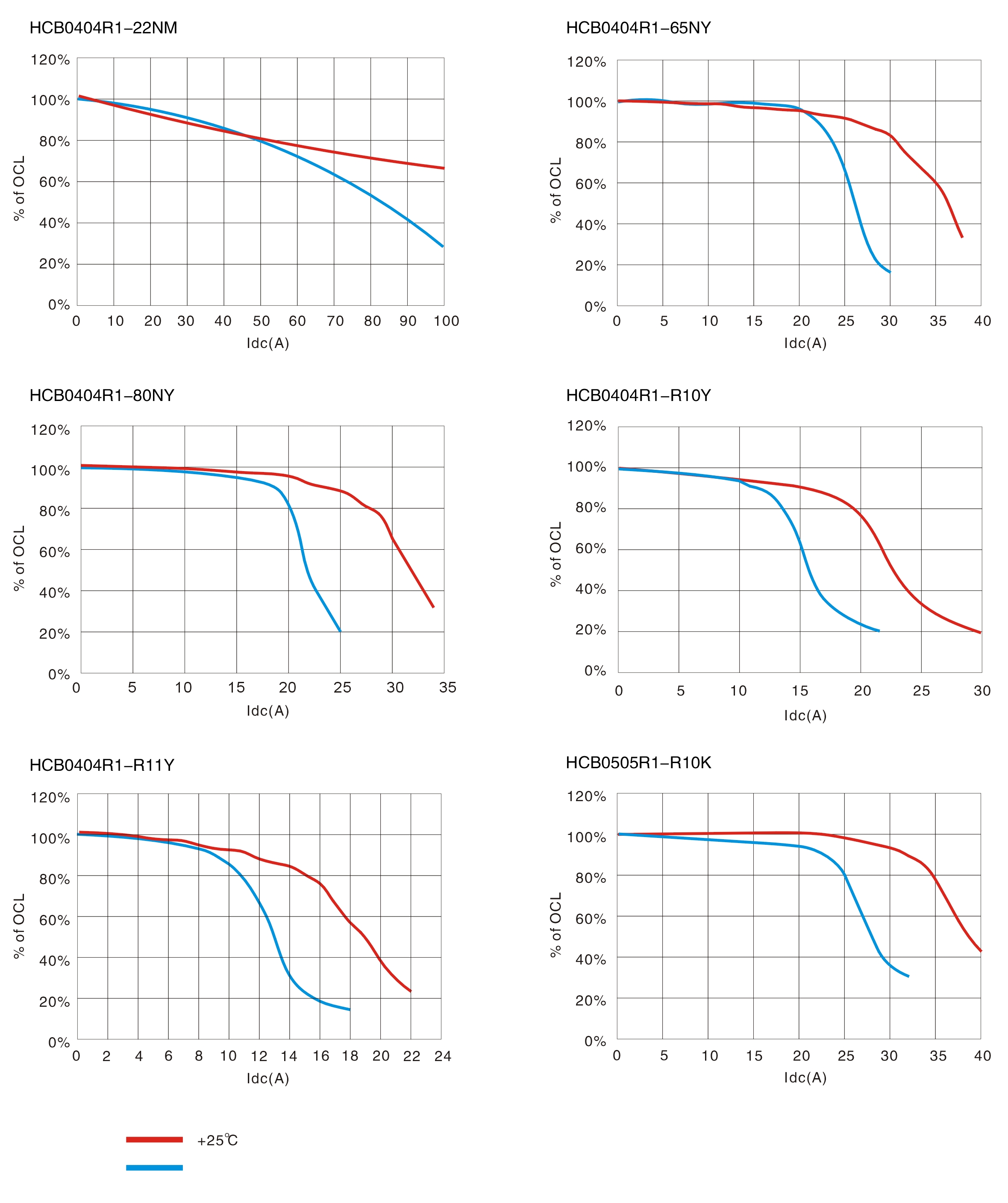

· Isat1: Peak current for approximately 20% rolloff at +25℃
· Isat2: Peak current for approximately 20% rolloff at +125℃
· Operating temperature: -40℃ to +125℃(ambient plus self-temperature rise)
· Storage temperature: -40℃ to +125℃

Note: Product specifications can be customized.
