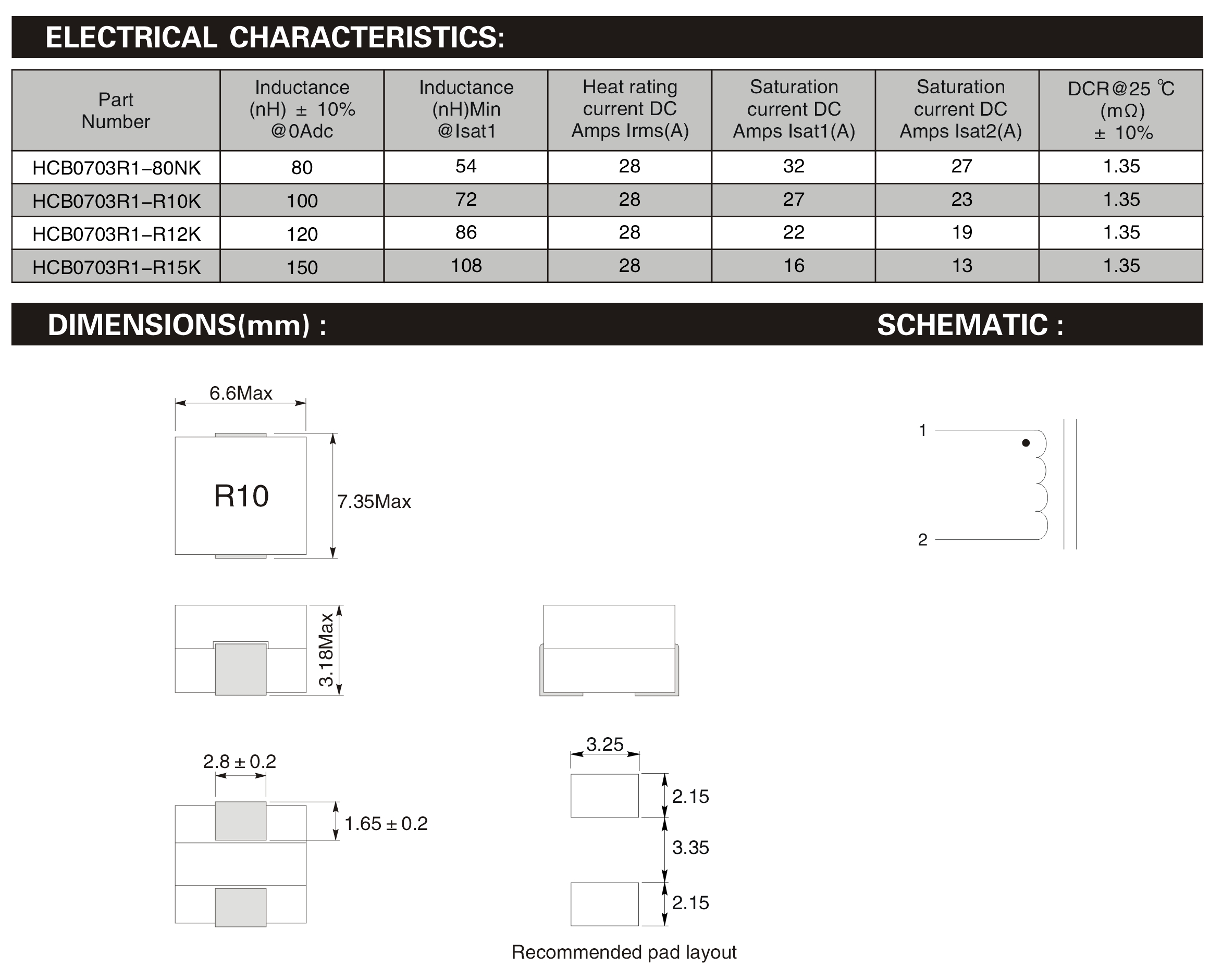

Low Core Loss High Current Choke Pad Size 6.6*7.35mm Corrosion Resistant

HCB0703 Series high current power inductors,smd shielded power inductor,Pad size 6.6*7.35mm,Current up to 32A

FEATURES:

Inductance range from 80nH to 150nH
Current range from 16A to 32A

High current carrying capacity
Low core loss
Ferrite core material

APPLCATIONS:

Portable electronics
Servers and workstations
Data networking and storage systems
Notebook and desktop computers
Graphics cards and battery power systems
Multi-phase regulators
Voltage regulator module(VRM)

NOTES:
Test Frequency : 100KHz / 0.1V@25℃
Irms: DC current for an approximate temperature rise of 40℃ without core loss

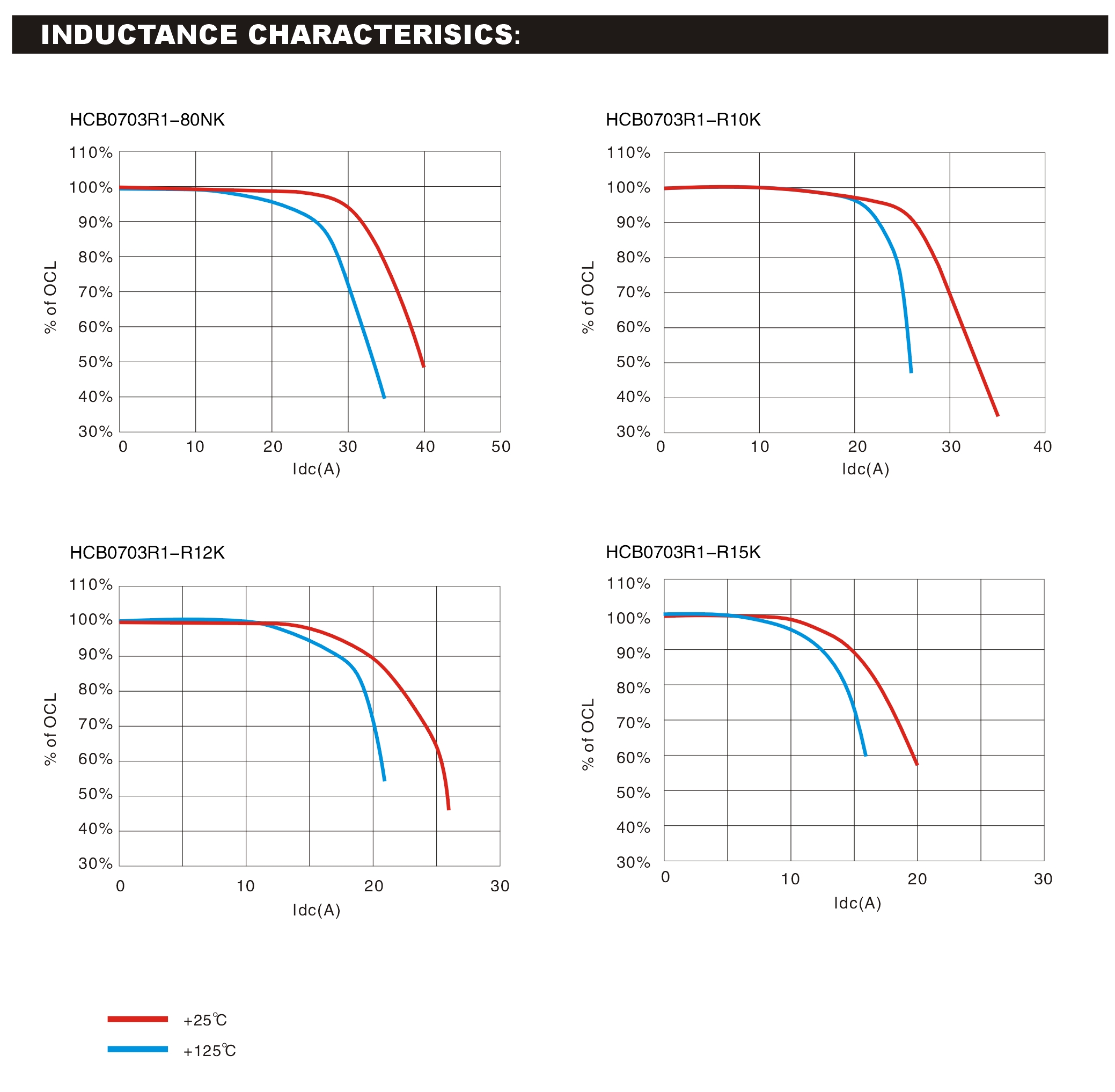

Isat1: Peak current for approximately 20% rolloff at +25℃
Isat2: Peak current for approximately 20% rolloff at +125℃
Operating temperature: -40℃ to +125℃(ambient plus self-temperature rise)
Storage temperature: -40℃ to +125℃

Note: Product specifications can be customized.
