300nH 94A High Current Power Inductors Mini Electronics Component Custom

HCB0906 Series high current power inductors,mini electronics component Custom high current power inductor 300nH,94A

FEATURES:

High current carrying capacity
Low core loss
Inductance range from 100nH to 300nH
Current range from 32.5A to 94A
Ferrite core material

Shielded construction and compact design

Low DCR, and high efficiency

Minimized acoustic noise and minimized leakage flux

SIZE: 9.6 x6.4x 8.0 mm

APPLCATIONS:

·Portable electronics
·Servers and workstations
·Data networking and storage systems
·Notebook and desktop computers
·Graphics cards and battery power systems
·Multi-phase regulators
· Voltage regulator module(VRM)

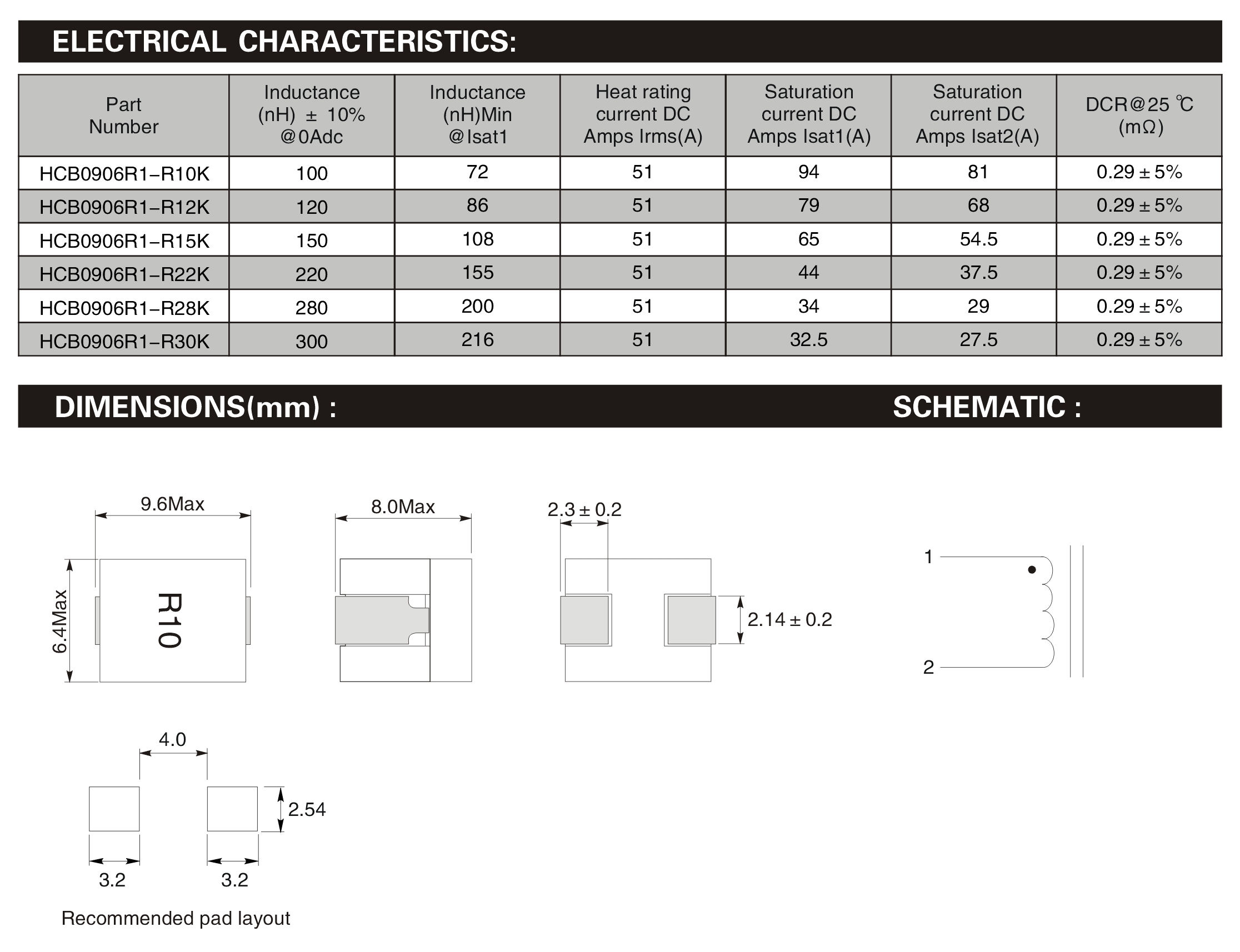

NOTES:
·Test Frequency : 100KHz / 0.1V@25℃
·Irms: DC current for an approximate temperature rise of 40℃ without core loss

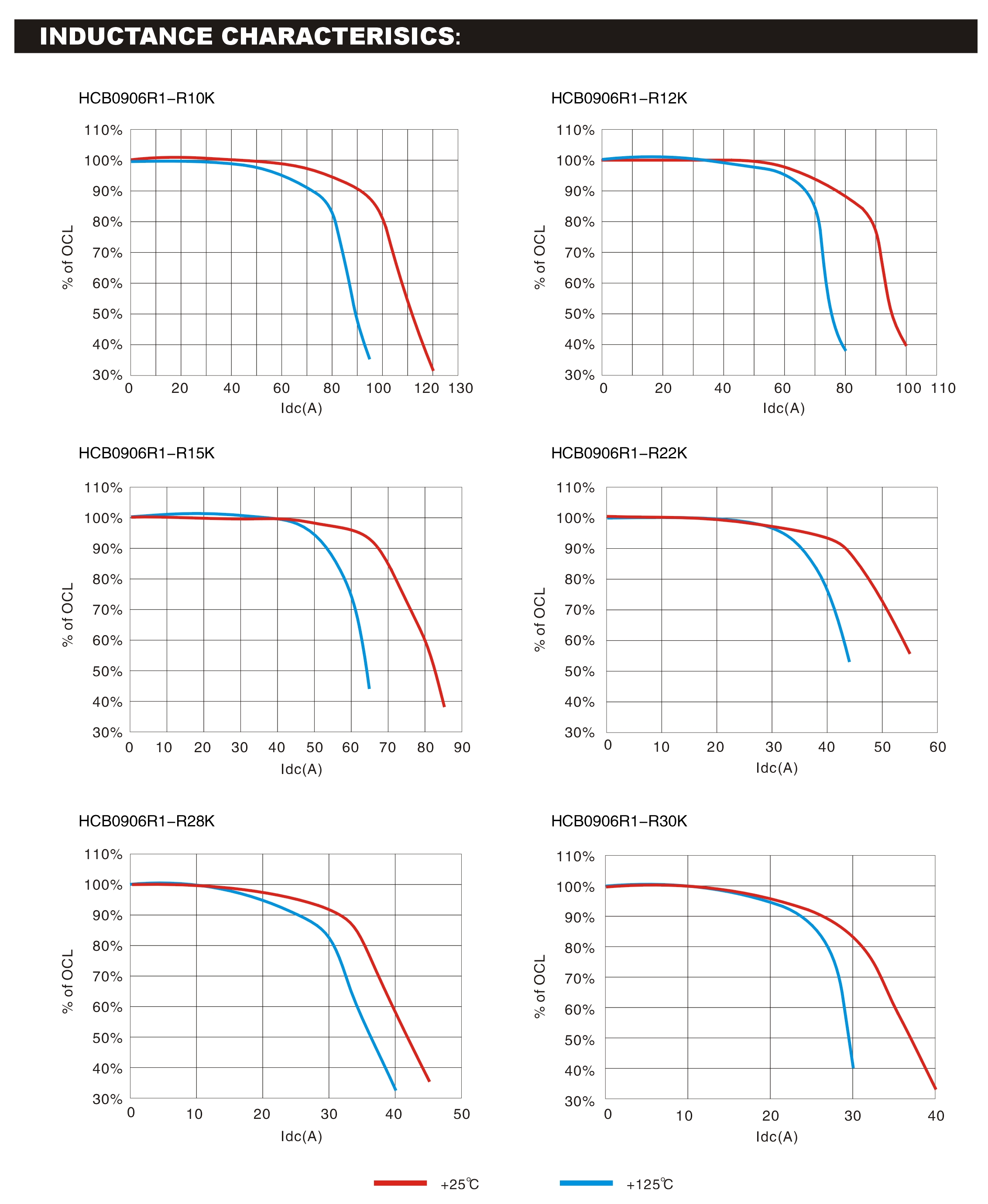

·Isat1: Peak current for approximately 20% rolloff at +25℃
·Isat2: Peak current for approximately 20% rolloff at +125℃
·Operating temperature: -40℃ to +125℃(ambient plus self-temperature rise)
·Storage temperature: -40℃ to +125℃

Note: Product specifications can be customized.
