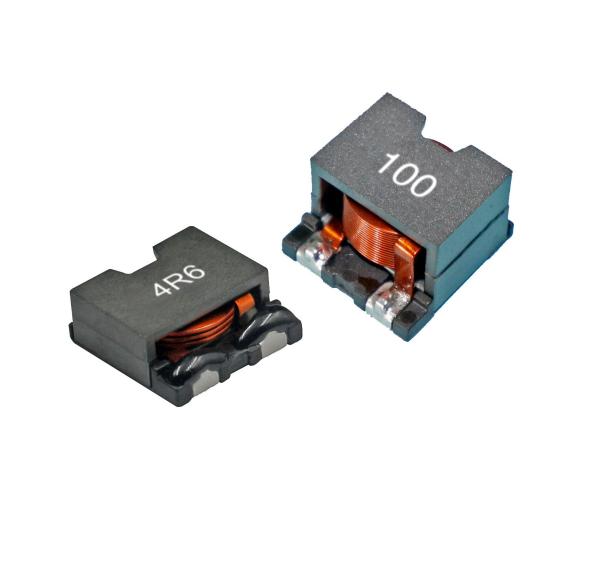

SMD High Current Inductors , Flat Wire , Single Winding , Low DCR Chokes

CEP126/135/159HT Series SMD High Current Inductors , Flat Wire , Single Winding , Low DCR Chokes

• Assemblage design,sturdy srtucture
• High inductance,high current,low magnetic loss,low ERS,small parasitic capacitance
• Flat wire winding,achieve a low DCR
• Temperature rise current and saturation current is less influenced by environment
• Filter signal, filter noise, stabilize current and suppress electromagnetic interference

NOTES:·

• Isat Current L value drop 65% typ.at IDC against its initial value
• Irms Temperature rise 40℃Max Reference Ambient temperature
• Inductance Testing: HP4284A, 100kHz/1V or equivalent
• Solderability: 75% of the lead wire Shall be covered
• Operating Temperature:-40℃ to +105℃
• Storage Temperature: -40℃ to +105℃
• Moisture resistance: △L/L≤±10% △Q/Q≤±25%
• The part temperature(ambient and temp rise)should not exceed105℃ under worse case operating conditions. Circuit design,component placement, PWB trace size and thickness, airflow and other cooling provision all affect the part temperature. Part temperature should be verified in the endapplication.

Note: Product specifications can be customized.
