Free Shipping KE-383A Double Mitre Saw In Heavy Duty

Categories aluminum process equipment
Brand Name: KM
Certification: Factory certificate
Place of Origin: china
MOQ: 1 pcs
Price: 14000 usd
Payment Terms: T/T, Western Union
Supply Ability: 30 Set/Sets per Month
Delivery Time: within 30 days from date of deposit
Packaging Details: standard export packing
saw cutting length: 480-4500mm
saw cutting: 230x150mm
main motor power: 3.0KW x 2
main motor speed: 2840r/min
saw blade size: 500x30x120T
saw feeding speed: 0-3m/min
saw the return rate of: 2-3m/min
saw blade swing angle: 90-45
table can be rotated angle: 0-45
working pressure: 0.6-0.8Mpa
working voltage: 380v
overall dimension: 5850x1310x1360mm
Weight: 1800kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

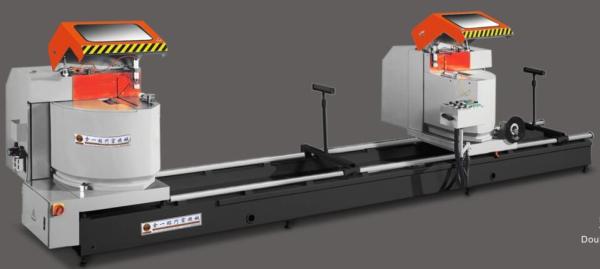

Free Shipping KE-383A Double Mitre Saw In Heavy Duty


1) Utilizes imported hard alloy saw blade for durability and high precision
2) The left and right sawing units can cut aluminum profiles simultaneously or separately
3) The two sawing units can both cut any angle between 90-degree and 45-degree referencing profile axis
4) The left and right worktables can be rotated between 0-degree and 45-degree horizontally (can be clamped with clamping plate)
5) Angle swinging, rotating and locking devices are controlled by pneumatic valves, useful and safe
6) Counter can displays the quantity of the processing profile in time
7) Automatic protection device provides reliable safeguard for operator


MAIN TECHNIQUE PARAMETER


1.Saw cutting length480-4500mm
2.Saw cutting (W×H)215×150mm / 240×135mm
3.Main motor power2.2Kw×2
4.Main motor rotation speed2840 rpm
5.Saw blade dimensionΦ508×Φ30×120T
6.Saw blade swing angle range90°-45°
7.Worktable swing angle range0°-45°
8.Saw blade feeding speed0-3m/min
9.Saw blade returning speed2-3m/min
10.Working air pressure0.6-0.8Mpa
11.Overall dimension (L×W×H)5850×1310×1360mm
12.Weight1800Kg


Packaging & Shipping



Cheap Free Shipping KE-383A Double Mitre Saw In Heavy Duty for sale
