Categories | aluminum process equipment |
---|---|
Brand Name: | KM |
Certification: | Factory certificate |
Place of Origin: | China |
MOQ: | 1 piece |
Price: | Negotiable |
Payment Terms: | Western Union, T/T, L/C |
Supply Ability: | 30 Set/Sets per Month |
Delivery Time: | 5-8 work days |
Packaging Details: | standard export packing |

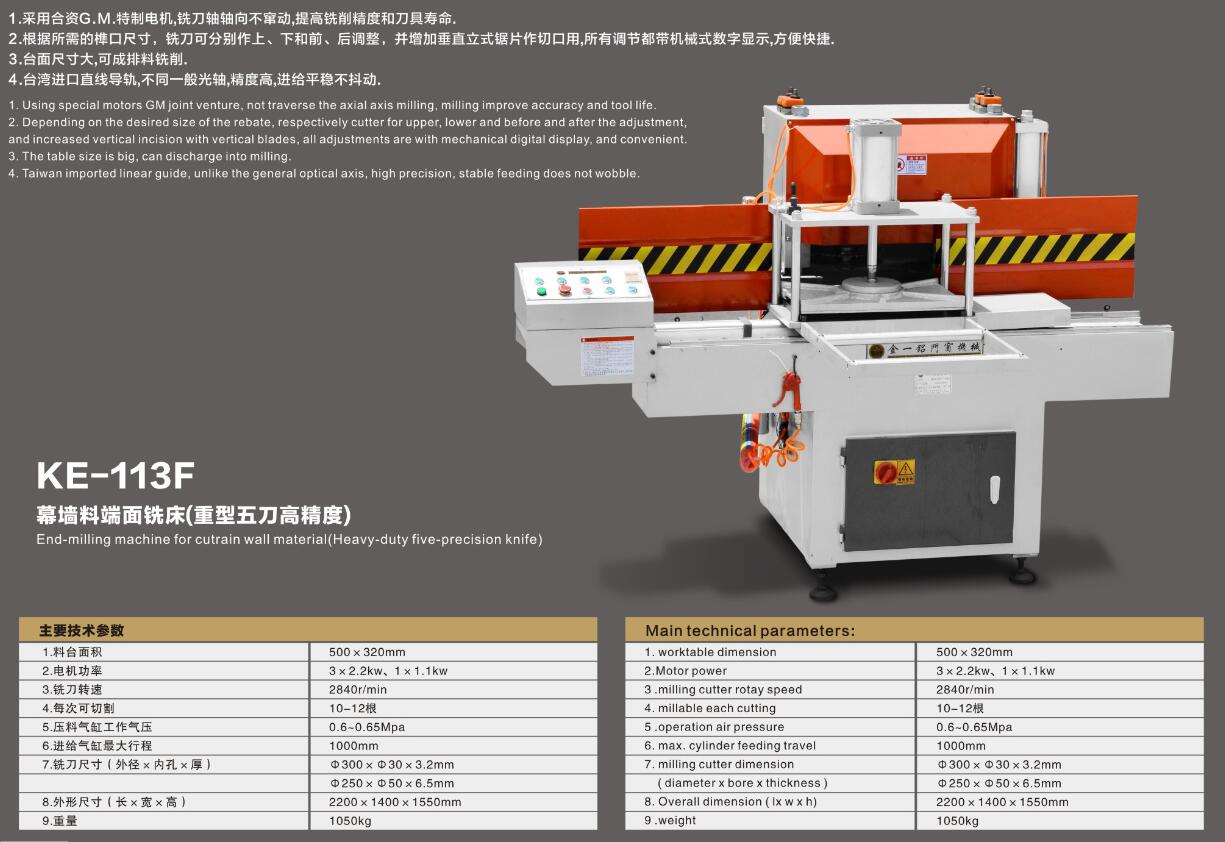

Product Name: | End-milling machine for cutrain wall material |
Worktable dimenston: | 500x320mm |
Motor Power: | 3x2.2KW 1X1.1KW |
milling cutter rotay speed: | 2840r/min |
millable each cutting: | 10-12 |
operation air pressure: | 0.6-0.65Mpa |
max.cylinder feeding travel: | 1000mm |
milling cutter dimension: | 300x30x3.2mm |
diameter x bore x thickness: | 250x50x6.5mm |
Overall dimension: | 2200x1400x1550mm |
weight: | 1050kg |
Company Info. |
KM HARDWARE ASIA LIMITED |
View Contact Details |
Product List |
1) Adopted particular structure of triangular cylindrical sliding track, for high strength and rigidity
2) Move smoothly, stepless speed adjusting available, no creeping, the blade retract quickly, save non-production time
3) Operate easily, adjust size accurately, milling precision less than or equal to 0.1mm
4) With 4 pieces of milling cutters to mill out right workpiece one time
5) 4 pieces of milling cutters are installed in axes of 3 main exectromotors, can adjust the height to fit for aluminum material
6) The workbench is large enough to mill 10 ~ 12 pieces profiles one time, high efficiency
7) Additionally can add one cutting blade as per the customer's request
8) 3 electromotors star up independently, could be selected as per workpieces' requirement
9) 38-90 series aluminum profile, heat insulation material and curtain wall profile could be milled
10) Pneumatic spray mist blade lubrication coolant systemMain technique parameters
Main Technical Parameter
1. | Working air pressure | 0.6-0.8Mpa |
2. | Air consumption | 200 L/min |
3. | Main motor power | 2.2Kw×3 |
4. | Main motor rotation speed | 2840 rpm |
5. | Milling cutter dimension | Φ250×Φ50×6.5mm |
6. | Worktable dimension | 500x320mm |
7. | Milling stroke | 950mm |
11. | Overall dimension (L×W×H) | 2280x1040x1640mm |
12. | Weight | 1300Kg |
in wooden case
![]() |
