Din Rail UKK 125A Unipolar Mini Electrical Power Distribution Terminal Block , Screw Connector Block In Blue and Grey

Categories Power Distribution Terminal
Brand Name: WONKEDQ,WKDQ
Model Number: UKK 125A
Certification: CE, RoHs, CQC,etc
Place of Origin: China
MOQ: 1pcs
Payment Terms: T/T, Paypal, Western Union, etc
Delivery Time: 2-7 days
Packaging Details: Box
Logo: Customized logo is available
Color: Grey+Blue
Connecting: Screw Terminal Blocks
Type: DIN Rail Terminal Blocks.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Din Rail UKK 125A Unipolar Mini Electrical Power Distribution Terminal Block , Screw Connector Block In Blue and Grey


UKK 125A Din Rail Screw Distribution Block Power Supply


These blocks are used in electrical power distribution. An electric power distribution terminal block is a convenient, economical and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High conductivity with excellent electrical contacts.

  • Simple and Safety Operating.
  • Compact design.
  • High safety.

  • Blue and Grey color.

  • Standard specification.

  • Profession power design.

  • Safe and stable performance.

  • Made from safe and high quality material.

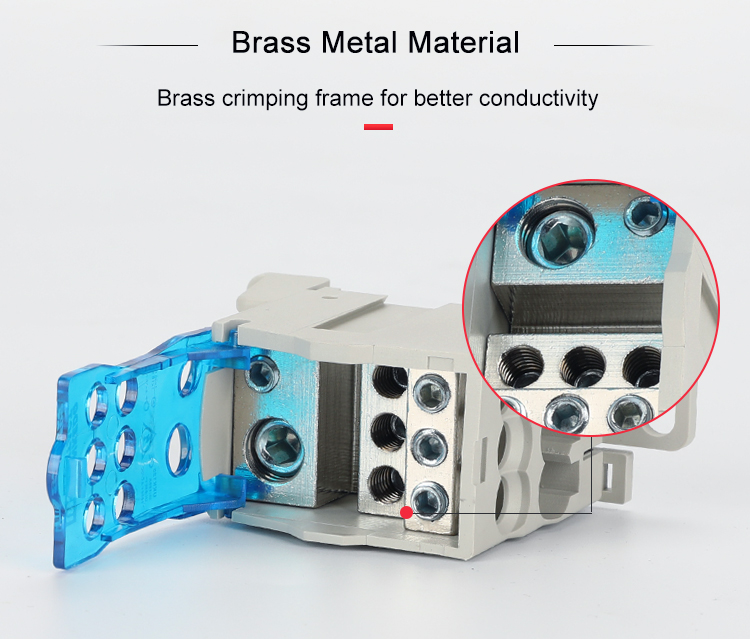

  • Brass crimping frame for better conductivity.

  • Reasonable Design save the installation space.

  • Install on 35mm wide DIN rail or chassis mounting with screws.
  • With Dust-proof and insulation cover.
  • Hinged design with safety removable cover.


TECHNICAL PARAMETERS

Model No.UKK 125A
ColorBlue and Gray
Length/Height/Wide (mm)29.4/47/74
Connection methodScrew connection
MaterialFlame resistant Nylon PA66, brass conductor
Rated Voltage/Current690V/125A
Entry Specification1X16 /1X35mm²
Output Specification6X16 mm²
Mounting TypeDIN Rail NS 35
StandardIEC 60947-7-1
LOGOWonkeDQ, LOGO can be customized
CertificationCE/RoHS/CQC/ISO 9001
