Single Pole UKK 400A Power Distribution Terminal Box EC And RoHS Standards

Categories Power Distribution Terminal
Brand Name: WONKEDQ,WKDQ
Model Number: UKK 400A
Certification: CE, RoHs, CQC,etc
Place of Origin: Made In China
MOQ: 1pcs
Payment Terms: T/T, Paypal, Western Union, etc
Delivery Time: 2-7 days
Packaging Details: Box
Brand: WONKEDQ CONTACT
Color: Grey+Blue
Connecting: Screw Terminal Blocks
Type: Power Distribution Terminal Box
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Single Pole UKK 400A Power Distribution Terminal Box EC And RoHS Standards

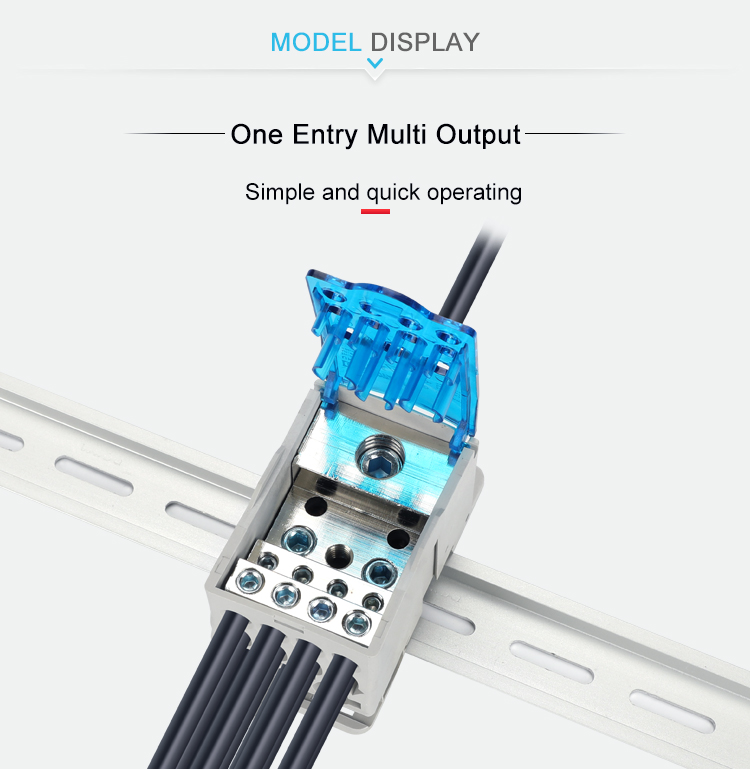

Single Pole UKK 400A Power Distribution Terminal Box

UKK 400A NS 35 Din Rail Wiring Distribution Block Junction box


The compact power distribution blocks with protection class IP20.

These sub-distribution blocks have multiple approvals for use with aluminium and copper conductors. Also provides optional custom branding, and custom industrial packaging is also available for product delivery.

  • Snap mounting for DIN rail.
  • Blue and Grey color
  • Simple and quick operating.
  • Professional power design.
  • Safe and stable performance.
  • Made from safe and high quality material.
  • Reasonable Design save the installation space.
  • Increased productivity thanks to reduced wiring, inventories, hardware and assembly costs.
  • With Dust-proof and insulation cover.
  • Hinged or removable cover - easy assembly.
  • Extremely low profile ultra slim width. Quick Fitting.
  • This product complies with EC and RoHS standards

Technical Parameters

Model No.UKK 400A
ColorBlue and Gray
Length/Height/Wide (mm)47.8/50/96
Connection methodScrew connection
MaterialFlame resistant Nylon PA66, brass conductor
Rated Voltage/Current690V400A
Entry Specification1X185mm²
Output Specification2X35/5X16/4X10 mm²
Mounting TypeDIN Rail NS 35
StandardIEC 60947-7-1
LOGOWonkeDQ, LOGO can be customized
CertificationCE/RoHS/CQC/ISO 9001
