| Categories | Stainless Steel Plate |
|---|---|
| Brand Name: | TISCO BAOSTEEL HAOSTEEL |
| Model Number: | SUS420 410 430 |
| Certification: | SGS, BV, CCIC |
| Place of Origin: | China |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 Tons per Month |
| Delivery Time: | 5-10 Woking Days |
| Packaging Details: | Standard Export Packing |
| Product: | 430 Stainless Steel Plate sheet |
| Standard: | ASTM A240 JIS G4304 |
| Grade: | SUS 410 420 430 |
| Delivery: | Hot Rolled, Annealed and Pickled |
| Surface: | No.1, HL, No.4, Sand Blasting |
| Thickness: | 3~200mm |
| Width: | Max 2.5m |
| Length: | Max 15m |
| Company Info. |
| Shanghai Haosteel Co., Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

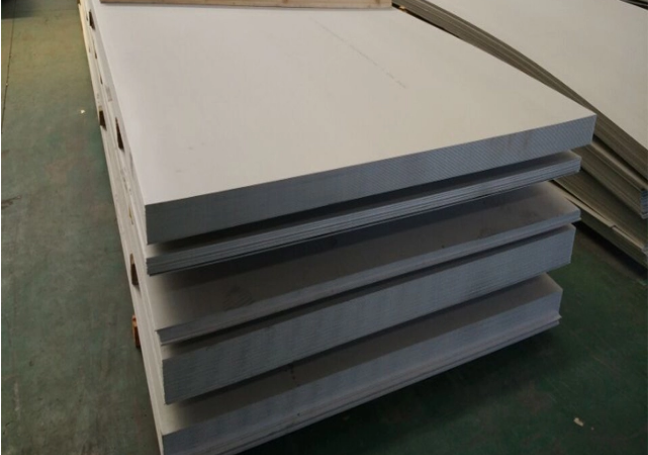

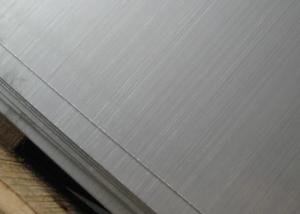

0.1 to 20 mm thickness 430 stainless steel plate sheet
Description
Grade 430 has good resistance to a wide variety of corrosive enviornments, including nitric acid and some organic acids. It attains its maximum corrosion resistance when in the highly polished or buffed condition. In general its resistance to pitting and crevice corrosion resistance is close to that of grade 304. Stress corrosion cracking resistance of Grade 430 is very high, as it is for all ferritic grades.
Heat Resistance
Grade 430 resists oxidation in intermittent service up to 870째C and to 815째C in continuous service. This grade may become brittle at room temperature after prolonged heating in the 400-600째C range. This effect can be eliminated by annealing
Stainless Steel grade | |||||||
Grade | Chemical composition | ||||||
C≤ | Si≤ | Mn≤ | P≤ | S≤ | Ni | Cr | |
201 | 0.15 | 1.00 | 5.5-7.5 | 0.5 | 0.03 | 3.50-5.50 | 16.00-18.00 |
202 | 0.15 | 1.00 | 7.5-10.0 | 0.5 | 0.03 | 4.00-6.00 | 17.00-19.00 |
304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-12.00 | 18.00-20.00 |
309 | 0.2 | 1.00 | 2.00 | 0.04 | 0.03 | 12.00-15.00 | 22.00-24.00 |
309S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
310 | 0.25 | 1.50 | 2.00 | 0.04 | 0.03 | 19.00-22.00 | 24.00-26.00 |
310S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
316L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
316Ti | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
2205 | 0.03 | 1.00 | 2.00 | 0.03 | 0.02 | 4.50-6.50 | 22.00-23.00 |
410 | 0.15 | 1.00 | 1.00 | 0.04 | 0.03 | 0.6 | 11.50-13.50 |
430 | 0.12 | 0.12 | 1.00 | 0.04 | 0.03 | 0.6 | 16.00-18.00 |
Iterm | Stainless Steel Sheet Plate Coil Strips In Stock |
Size | Thickness:0.3-120mm Width:500mm-2000mm Length:1000mm-6000mm |
Origin place | Made In China |
Delivery Condition | Hot rolled,cold drawn,forged |
Surface require | Black,grinding,bright,polish |
Heat treatment | Quenched,Tempered,annealed |
Packing | seaworthy packing ,wooden case ,carton,woven bag or at client's requires |
Delivery time | About 7-10 days after receipt of 30% deposit T/T or L/C at sight |
Trade Term | FOB,CIF,CFR |
Payments | T/T or L/C at sight |
Port | China main Port,such as shanghai |
Mechanical Properties | |||||
Grade | State | Hardness HV | Yield Strength | Tensile Strength | Elongation(%) |
SUS304 | ANN | ≤200 | >205 | >520 | >40 |
1/4H | 200-250 | >225 | >550 | >35 | |
1/2H | 250-310 | >470 | >780 | >6 | |
3/4H | 310-370 | >665 | >930 | >3 | |
H | 370-430 | >880 | >1130 | -- | |
SUS301 | ANN | ≤250 | >205 | >520 | >40 |
1/4H | 250-310 | >470 | >780 | >35 | |
1/2H | 310-370 | >510 | >930 | >10 | |
3/4H | 370-430 | >745 | >1130 | > 5 | |
H | 430-490 | >1030 | >1320 | >3 | |
EH | 490-550 | >1275 | >1570 | -- | |
SH | >550 | >1500 | >1850 | -- | |
SUS201 | ANN | <200 | >205 | >515 | >40 |
1/4H | 200-250 | >250 | >550 | >35 | |
1/2H | 250-310 | >470 | >780 | >6 | |
3/4H | 310-370 | >665 | >930 | >3 | |
H | 370-430 | >880 | >1130 | -- | |
SUS430 | ANN | <200 | >205 | >450 | >22 |
1/2H | 200-250 | >330 | >505 | >10 | |
H | 250-310 | >420 | >750 | >6 | |
SUS443 | ANN | <200 | >305 | >483 | >31 |
SUS310S | ≤200 | <200 | >205 | >520 | >40 |
SUS316L | ≤200 | <200 | >310 | >620 | >40 |
