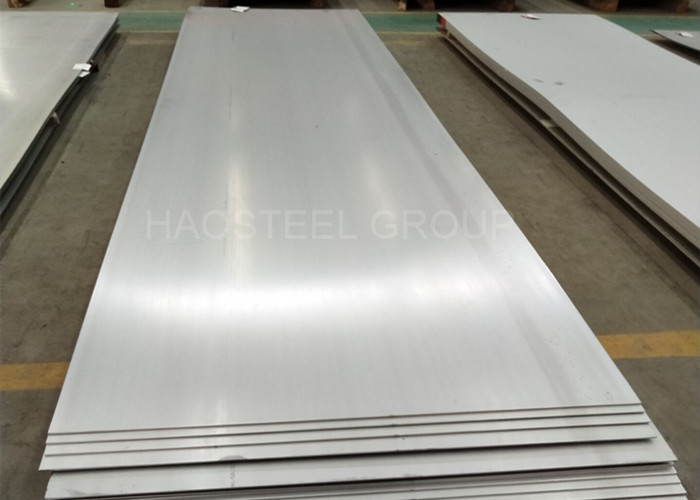

304L 316 316L 321 Ss Steel Plate 3-150mm Thickness For Construction

Categories Stainless Steel Plate
Brand Name: HAOSTEEL
Model Number: HS304 304L 316 316L 321 310S 301 2205 430 410
Certification: ISO9001
Place of Origin: CHINA
MOQ: Negotiation
Price: Negotiation
Supply Ability: 5000tons per month
Delivery Time: 5-10 working days after order confirmed and receive deposit
Packaging Details: Woven bags and plastic strips inside packing, wooden / iron pallet and steel strips outside packing.
Product: Stainless Steel Plate 304 304L stainless steel plate
Standard: ASTM A240
Grade:: 200 Series,300 Series,400 Series 600 Series
Cr: 18%-20%
Ni: 8%-10%
Thickness: 0.3mm ~ 150mm
Width: 1m ~ 3m
Length: 2m ~ 15m
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

304L 316 316L 321 Ss Steel Plate 3-150mm Thickness For Construction

3 mm aisi stainless steel plate 304 316l stainless steel sheet price


HAOSTEEL is one of the most professional manufacturer and supplier of ASTM A240 304 304L stainless steel plate .We offer highly reliable sus 304 stainless steel plate in various grades,including mid plate,thick sheet,cold drawn steel sheet and hot rolled steel plate.


Description:

Stainless Steel Grade 304 is the standard 18/8 (18% chrome, 8% nickel) austenitic stainless steel. It is a non-magnetic alloy in the annealed condition but becomes magnetic as it is cold worked. It is the most commonly used of all stainless grades. TP304 can be easily welded and is the choice for many deep drawn, spun or formed parts due to its high ductility.

Chemical composition:

UNS DesignationTypeCMnPSSiCrNiMoNOther Elements
S301003010.152.000.0450.0301.0016.0-18.06.0-8.00.10
S304003040.082.000.0450.0300.7517.5-19.58.0-10.50.10
S30403304L0.032.000.0450.0300.7517.5-19.58.0-12.00.10
S316003160.082.000.0450.0300.7516.0-18.010.0-14.02.00-3.000.10
S31603316L0.032.000.0450.0300.7516.0-18.010.0-14.02.00-3.000.10
S31635316Ti0.082.000.0450.0300.7516.0-18.010.0-14.02.00-3.000.10

Ti 5 x(C + N)
min, 0.70

S321003210.082.000.0450.0300.7517.0-19.09.0-12.00.10

Ti 5 x(C + N)
min, 0.70

Physical Properties:

UNS

Designation

TypeTensile StrengthYield StrengthElongation in
2 in. or 50 mm,min, %
Hardness, max
ksiMpaKsiMpaBrinellRockwell B
S3010030175515302054021795
S3040030475515302054020192
S30403304L70485251704020192
S3160031675515302054021795
S31603316L70485251704021795
S31635316Ti75515302054021795
S3210032175515302054021795

304 can be provided in the tempered condition. Please refer to HAOSTEEL Technical Services for more information.


Corrosion Resistance:
304 has excellent corrosion resistance and is used in many corrosive environments and atmospheres.


The Grade Range:

a.)200Series : 201,202.204Cu.
b.)300Series : 301,302,304,304Cu,303,303Se,304L,305,307,308,308L,309,309S,310,310S .etc.
c.)300Series :410,420,430,420J2,439,409,430S,444,431,436,441,446,440A,440B,440C.etc.
d.)Others :2205,904L,S31803,330,660,630,17-4PH,631,17-7PH,2507,F51,S31254 etc.

The Size Range:
a.)Thickness : 3~150mm
b.)Width:1500mm,1800mm, 2000mm ,2500mm or as customers’ required
c.)Length:3000mm,6000mm or as customers’ required

Application:

304 Stainless Steel is used in a wide variety of home and commercial applications, including:

Kitchen benches, sinks, troughs, equipment, and appliances
Chemical containers, including for transport
Food processing equipment, particularly in beer brewing, milk processing, and wine making
Heat exchangers
Architectural trim and molding
Woven or welded screens for mining, quarrying & water filtration
Automotive and aerospace structural use
Nuts, bolts, screws, and other fasteners in the marine environment
Construction material in large buildings
Dyeing industry
