Name: SPD 40kA 1P Lightning Protector Din Rail Anti Lightning Electric System IEC61643
Brand: BRITEC
Price: 1 USD

Home > Other Security & Protection Products >

SPD 40kA 1P Lightning Protector Din Rail Anti Lightning Electric System IEC61643

Categories	Type 2 Surge Protection Device
Brand Name:	BRITEC
Model Number:	BR-40 1P
Certification:	CE
Place of Origin:	China
MOQ:	200 piece / pieces
Payment Terms:	T/T
Supply Ability:	50000 pieces per month
Delivery Time:	15-30 days after payment
Packaging Details:	EXPORT PACKING
Test standards:	IEC 61643-11 / EN61643-11
Uc:	150V / 275V / 320V / 385V / 440V
In:	20kA
Imax:	40kA
Material:	Thermal plastic UL94-V0
tA:	≤25ns
Mounting on:	35mm Din rail
Tu:	-40℃...+80℃
Item:	Surge protection device
Class:	Type 2

Contact Now

Add to Cart

Company Info.

Britec Electric Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

SPD 40kA 1P Lightning Protector Din Rail Anti Lightning Electric System IEC61643

SPD 40kA 1P Lightning Protector Din Rail Anti-Lightning Electric System IEC61643

SPD 40kA 1P Lightning Protector Feature:

• BR-40 1P is for low-voltage power supply 150V / 275V / 320V / 385V / 440V, Imax 40kA, 1pole.

• Class II / Type 2 surge protection.

• Designed and manufactured according to IEC61643 standard.

• Remote signaling can select

• It is designed as module and 35mm din rail mounting.

• With working indication window, fault indication via red mark in the inspection window.

• It is accordance with the criterion of surge protective devices connected to low-voltage power systems-requirements and test methods.

SPD 40kA 1P Lightning Protector Product Details:

	BR150 40 1P	BR275 40 1P	BR320 40 1P	BR385 40 1P	BR440 40 1P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20
Order Code	B8101	B8103	B8105	B8107	B8109
Order Code (With remote signaling)	B8102	B8104	B8106	B8108	B8110

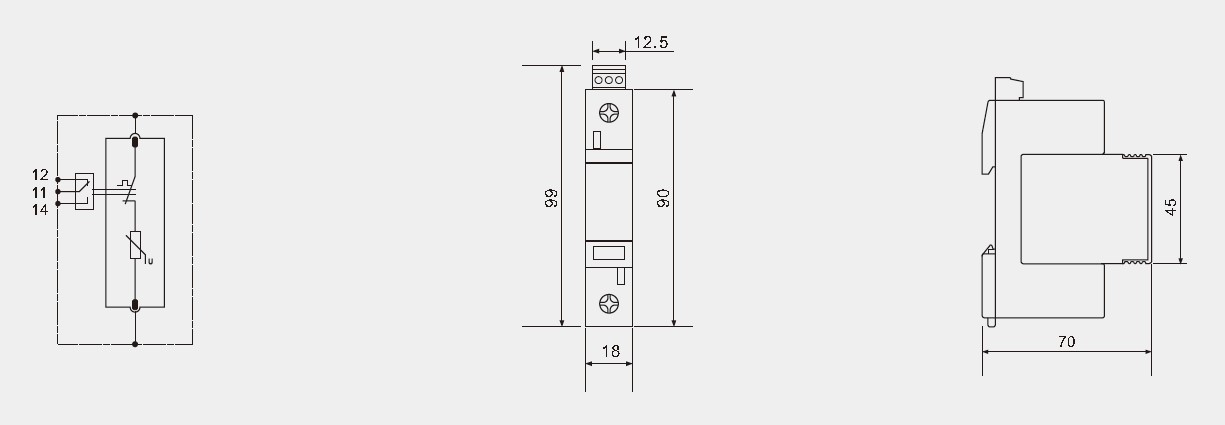

Dimension:

SPD 40kA 1P Lightning Protector Application:

• BR-40 1P surge protective device are suitable for lightning and surge protection in AC 50/60Hz

• It is suitable for communications, TV broadcasting, computer room, automatic control, mechanical and electric control, mechanical and electrical equipment, and related AC power equipment.

• For the protection of low voltage equipment against transient voltages and current surges from lightning

• Protects against transients produced by switching characteristics such as in switching of distribution networks, transformers, motors, etc

SPD 40kA 1P Lightning Protector Advantage:

• Low leakage current, fast response time, low residual voltage.

• The module design, easy installation

• The new technology, high-energy

• Window color shows working condition

• OEM & ODM are acceptable.

• We can produce according to customer's requirements.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester

• All products will be well packed before shipping

• Standard packaging, and you can also tell us your own requirements on packaging

• Faster delivery

• Individually Tested Prior to Shipment

Installation:

• The line of surge arresters includes a full range of compact protectors for installation on DIN rail

• When the fault indication window turns from green to red please replace the cartridge as soon as possible

• After the installation is complete, check that the protection unit is plug in place, close the automatic circuit breaker (fuse) switch, check the working status is normal.

Company Information:

We provide service for surge protection solutions.

Certification:

FAQ:

Q1: Are you trading company or manufacturer?

A: We are manufacturer.

Q2: How long is your delivery time?

A: Generally, within 30days.

Q3: Do you provide samples? Is it free or extra?

A: We can provide samples, but it is not free.

Q4: Can we visit your factory?

A: Warmly welcome!
