Name: Lightning Arrester Class II Imax 40kA 2P 2040kA DIN Rail Surge Protection Over Voltage SPD
Brand: BRITEC
Price: 1 USD

Home > Other Security & Protection Products >

Lightning Arrester Class II Imax 40kA 2P 20-40kA DIN Rail Surge Protection Over Voltage SPD

Categories	Type 2 Surge Protection Device
Brand Name:	BRITEC
Model Number:	BR-40 2P
Certification:	CE
Place of Origin:	China
MOQ:	200 piece / pieces
Payment Terms:	T/T
Supply Ability:	50000 pieces per month
Delivery Time:	15-30 days after payment
Packaging Details:	EXPORT PACKING
Test standards:	IEC 61643-11 / EN61643-11
Uc:	150V / 275V / 320V / 385V / 440V
In:	20kA
Imax:	40kA
Material:	Thermal plastic UL94-V0
tA:	≤25ns
Mounting on:	35mm Din rail
Tu:	-40℃...+80℃
Class:	Type 2
Protection level:	IP20

Contact Now

Add to Cart

Company Info.

Britec Electric Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Lightning Arrester Class II Imax 40kA 2P 20-40kA DIN Rail Surge Protection Over Voltage SPD

Lightning Arrester Class II Imax 40kA 2P 20~40kA DIN Rail Surge Protection Over Voltage SPD

Lightning Arrester Class II Imax 40kA 2P 20-40kA DIN Rail Surge Protection Feature:

• Model: BR-40 2P

• The reaction time of less than 25 ns

• The green indicator flag in the inspection window shows the operating state of the protection modules

• Remote monitoring switch signal can be achieved

• Continuous operating voltage: 150 / 275 / 320 / 385 / 440 V

• IEC61643-11:2012 confirmed

• BR-40 2 pole surge arrester is suitable for TN-S system.

Lightning Arrester Class II Imax 40kA 2P 20-40kA DIN Rail Surge Protection Product Details:

	BR150 40 2P	BR275 40 2P	BR320 40 2P	BR385 40 2P	BR440 40 2P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20
Order Code	B8201	B8203	B8205	B8207	B8209
Order Code (With remote signaling)	B8202	B8204	B8206	B8208	B8210

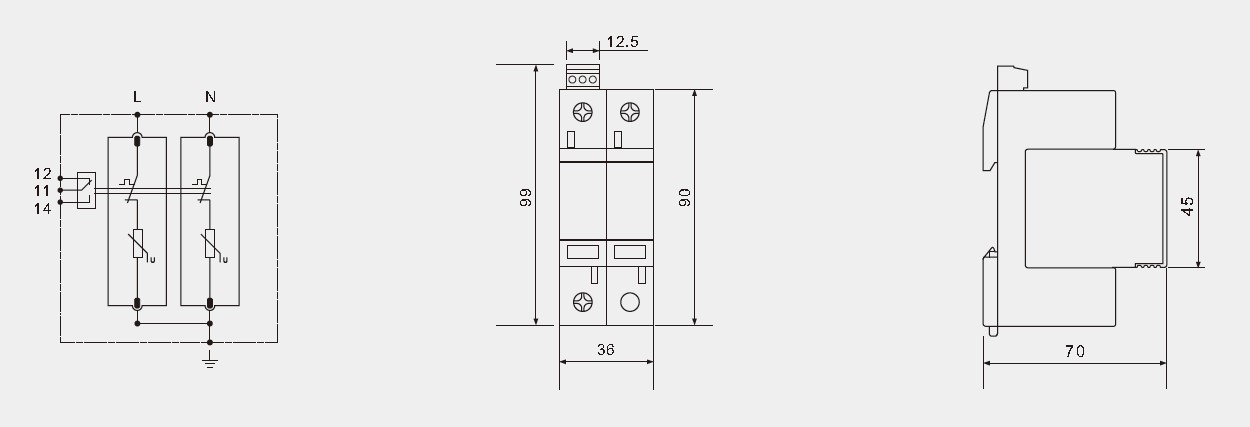

Dimension:

Lightning Arrester Class II Imax 40kA 2P 20-40kA DIN Rail Surge Protection Application:

• The type 2 surge protectors are applicable to discharge overvoltage occurred by switch-type (8/20µs) over currents.

• This surge protection device is used to protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.

• Protection of an electrical installation and all electrical and electronic devices connected t this installation against destructive overvoltage surges.

• Protection against indirect lightning and direct lightning effects or other instant overvoltage surges, suitable for surge protection in residential, tertiary and industrial applications

Lightning Arrester Class II Imax 40kA 2P 20-40kA DIN Rail Surge Protection Advantage:

• This arrester device is made of high quality material, which ensures a long service life

• This series of surge protector is easy for installation.

• Protect the equipment's power system from lightning damage with stable performance.

• DIN rail mounting, pluggable module, convenient replacement

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester

• All products will be well packed before shipping

• Standard packaging, and you can also tell us your own requirements on packaging

• Faster delivery

• Individually Tested Prior to Shipment

Company Profile:

We are a professional manufacturer of surge protection device.

Shipping:

Installation:

• The line of surge arresters includes a full range of compact protectors for installation on DIN rail

• Green tab, normal work status, Red tab, failure status, need to be replaced rapidly

• Installation must be performed only by electrically skilled operator

• If protector is to be located outdoors and exposed to elements, mount protector inside a suitable weatherproof enclosure.)
