Heavy Duty 80 Tons 5 Axle Truck Tipper Trailer With Airbag Suspension And Lifting

Categories Heavy Duty Tipper Trailer
Brand Name: SUNSKY
Certification: BV/CCC/CE/DOT/SGS
Place of Origin: China
MOQ: 1 Units
Price: Negotiable
Supply Ability: 500 Units Per Month
Delivery Time: 35 Working Days
Packaging Details: No Packing
Chassis: Heavy Duty I Beam
Volume: 48 CBM
Payload: 80 Tons
Brake system: Re-6 emergency valve
Suspension: Airbag/Spring suspension
Dimension: 12500*2550*3700
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

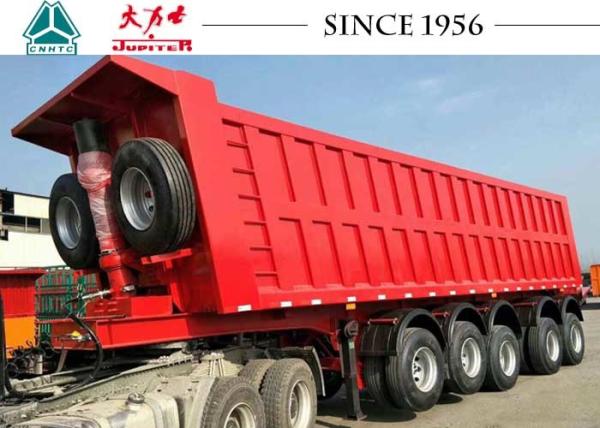

Heavy Duty 80 Tons 5 Axle Truck Tipper Trailer With Airbag Suspension And Lifting

Heavy Duty 80 Tons 5 Axle Truck Tipper Trailer With Airbag Suspension And Lifting


Application


Use for carry sand,stone,coal,copper,cocoa,mine etc.


Advantages


1.Payload: Use advanced overload design and welding technology for the chassis. Ensure the strong of trailer body. Make sure the tipper trailer still in good condition even in small overloading. The payload can be design max to 100 tons.

2.Lifting system: Use famous brand Hvya cylinder. Greatly improve the efficiency of unloading and safety of lifting. Save your time and money.

3.Design: Heavy duty and extra durability design. We can design and produce the semi dump trailer as clients ’requirements.

4.Material: Opting high tensile low carbon alloy Q345B Steel. I beam welded by automotive arc-submerge process. Easily maintain and keep a longer lifespan.

5.Suspension: Install 2 axle airbag suspension with lifting,help to reduce the tire wear when empty loading.


Specification


Style48 CBM 5-Axle Tipper Trailer
Dimension(L*W*H)12500*2550*3700 (mm) (Custom-built)
Body materialsBS700MC high tensible 4mm
ThicknessSide wall:6 mm; bottom floor:8 mm
Payload(kgs)80000
Volume(CBM)48 CBM
Tare weight(kgs)11000 kgs
KingpinJOST 3.5” bolt-in
Landing gearJOST 19”
Tire and rim12R22.5 (13sets)
AxleAmerican Type 13 Tons
SuspensionThree Axle spring suspension with two axle airbag with lifting
Brake systemDual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Air ChamberMBA T30/30
Electric systemOne unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Hydraulic systemHYVA brand

Quality guarantee


1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia etc.

2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment,ensure to meet your local road regulation.
