27 CBM 3 Axles Dump Semi Trailer 40 Tons For Kenya For Container Transport

Categories Heavy Duty Tipper Trailer
Brand Name: SUNSKY
Certification: BV/CCC/CE/DOT/SGS
Place of Origin: China
MOQ: 1 Units
Price: Negotiable
Supply Ability: 500 Units Per Month
Delivery Time: 30 Working Days
Packaging Details: No Packing
Material: Carbon Steel
Capacity: 20 m³ to 30
Payload: 40 Tons
Thickness: 6 mm/ 8 mm
Hydraulic system: Hyva brand
Brake system: Re-6 emergency valve
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

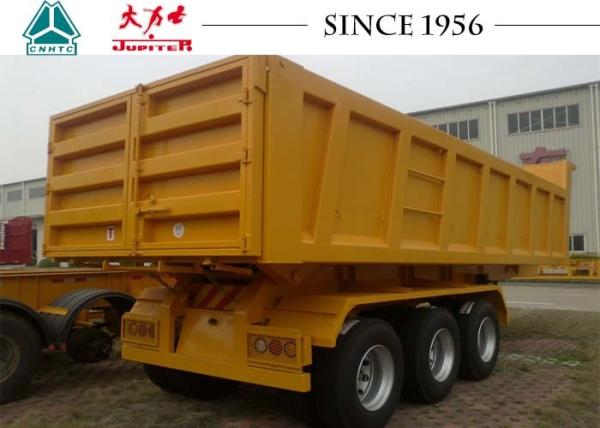

27 CBM 3 Axles Dump Semi Trailer 40 Tons For Kenya For Container Transport


27 CBM 3 Axles Dump Semi Trailer 40 Tons For Kenya For Container Transport


Th tipper semi-trailers can be precisely designed as your needs – from the volume-optimized light to the heavy duty type for the extreme demands of heavy-duty construction work. You define the specifications, we implement them. With sophisticated and flexible modular system you can combine the body, rear wall, chassis, running gear and additional equipment as needed. The long-term performance and economy of these tipper trailers is unbeatable.


I.Feature


1.Square shape design,can be used for transport a 20FT container and construction materials.

2.Heavy duty and extra durability design,opting for high tensible low carbon alloy Q345B

steel.I beam welded by automotive arc-submerge process.

3.The tipper trailers equiping famous brand part in alxes,suspension,landing gear.Have higher property.More reliable and ensure the long life span of trailers.

4.The tipper trailers equiping full braking and electrical systems at home and abroad in accordance with ISO standard,optional ABS system, braking, lighting is absolutely safe and reliable.


II.Quality guarantee


1.More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2.Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3.Spare parts support services.

4.Able to custom-built design as your requirment,ensure to meet your local road regulation.


III.Specification


Style27CBM 2-Axle Square shape Tipper Trailer
Dimension(L*W*H)9060*2600*3450 (mm)
Inner Size(L*W*H)8110*2480*1490(mm)
Body materialsBS700MC high tensible 4mm
Thickness6mm/ 8mm
Payload(kgs)40000
Volume(CBM)27CBM
Tare weight(kgs)9200
KingpinJOST 3.5” bolt-in
Landing gearJOST 19”
Tire and rim11R22.5 (7sets)
AxleFUWA brand -13Ton
SuspensionSpring suspension with 8 pcs of leaf spring
Brake systemDual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Air ChamberMBA T30/30
Electric systemOne unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Hydraulic systemHYVA Brand

Cheap 27 CBM 3 Axles Dump Semi Trailer 40 Tons For Kenya For Container Transport for sale
