Oilfield Drilling Fluids Mixing Mud Desander Small Vibration Screen And A Desander

Categories Solid Control Equipment
Brand Name: XBSY
Model Number: CSS
Certification: ISO9001 and API-Q1
Place of Origin: Chengdu, China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 50 units each months
Delivery Time: 1months
Packaging Details: Simple iron support frame
Motor frequency: 380V/50Hz, 460V /60Hz
Port: Tianjin By sea
Warranty: One Year
Cyclones number: Due to the capacity required
After-sales Service Provided: Engineers available
Ex-proof Grade: ExdIIBT4
Protection Grade: IP55
Usage: Screening the drilling fluids
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Oilfield Drilling Fluids Mixing Mud Desander Small Vibration Screen And A Desander

Oilfield Drilling Fluids Mixing Mud De-sander Solid Control Equipment


CSS desander is a piece of solid-control equipment especially for removing sold particles with diameter of 40~150μm in drilling liquid, so as to effectively control the solid content in the drilling liquid, provide reliable guarantee for improving drilling speed and lowering the drilling cost, and remove mud in deep well section. This desander can be assorted with kinds of cyclic purifying systems for drilling liquid.

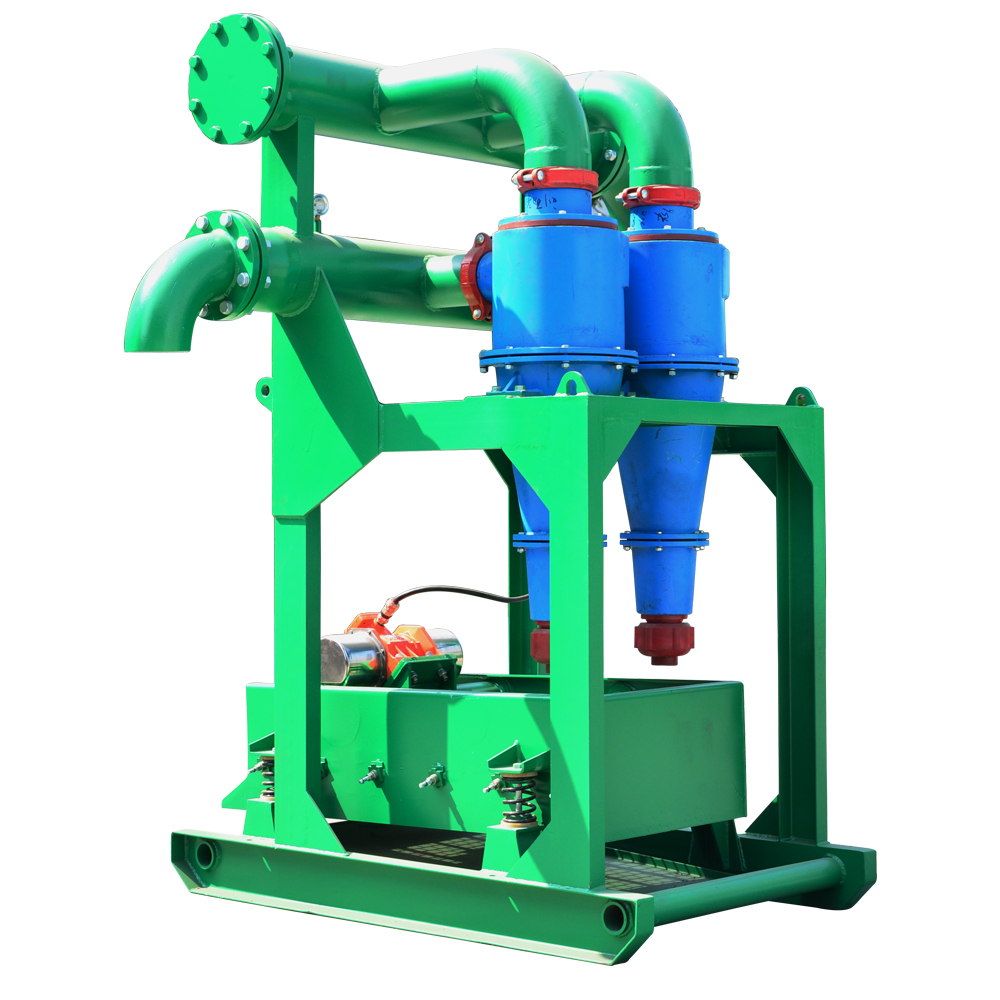

CSS desander is composed of a small vibration screen and a desander. The specifications of ordinary desilting cyclone are 250 and 300 and number of cyclones is 2, or3. The corresponding specifications are as follows.


desander model

Number of cyclones
23

cyclone spec

250CSS/250×2CSS/250×3
300CSS/300×2——

Technical parameter list

Nominal dia. of cyclone: 250,300

Number of cyclones: 2,3

Maximum throughput: 250:22 L/s per cyclone, 300:28 L/s per cyclone

Operating pressure: 0.2-0.45MPa

Dia. of feeding pipe: DN150

Dia. of discharging pipe: DN200

Cut-point: 250:40-100 μm 300:50-150 μm

Screen sizs: 585 (transverse)*1450 (longitudinal) mm

Vibration motor; 0.4 kW

Explosive-proof grade: ExdⅡBT4

Electric protection grade: IP55

Power source: AC380V,50Hz

Outline dimension: see outline drawing


Total weight:


CSS/250×2CSS/250×3CSS/300×2
1000 kg1150 kg1100 kg

2. Ambient condition for operating

Ambient temperature:

Ambient relative humidity: ≤ 95%


Safety rules for operating

1. Installation

A. Use proper hoisting equipment and mechanism.

B. Prohibit hoisting the equipment out of assigned position.

C. Ensure the installing platform is firm and able to bear enough weight.

D. Mount the equipment stably and fix it on the tank reliably.


2. Maintenance

Prohibit any drilling, cutting or welding on the equipment.
