Name: Flange Butterfly Valve with Electric Operated EPDM Lined PN 10 WCB
Brand: TongJiang
Price: 300 USD

Home > Butterfly Valves >

Flange Butterfly Valve with Electric Operated , EPDM Lined , PN 10 , WCB

Categories	Wafer Butterfly Valve
Brand Name:	TongJiang
Model Number:	Electric Butterfly Valve
Certification:	ISO 9001
Place of Origin:	CHINA
MOQ:	5 Piece
Price:	USD 300-5000 per piece
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000 pieces per month
Delivery Time:	7-14 days
Packaging Details:	Wooden cases
Butterfly Valve Material:	WCB、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti HT250
Butterfly Valve Connection:	Flange Connection
Butterfly Valve Pressure:	PN16 bar, PN 10 Bar
Butterfly Va lve Temperature:	-40℃~200℃
Butterfly Valve Actuator:	Electric Actuator
Butterfly Valve Face to Face:	GB12221-89, ANSI
Butterfly Valve Size:	DN50~2000
Butterfly Valve Application:	Water, steam, oil, sea water and acids.

Contact Now

Add to Cart

Company Info.

Zhejiang TongJiang Holdings Company

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

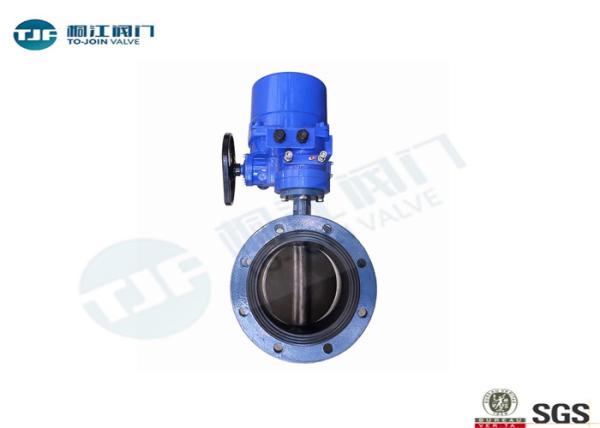

Flange Butterfly Valve with Electric Operated , EPDM Lined , PN 10 , WCB

Flange Butterfly Valve with Electric Operated , EPDM Lined , PN 10 , WCB

PRODUCT INTRODUCTION

Description

Electric Butterfly Valve plays a role in regulating flow or intercepting medium in gas and liquid pipelines. Flange-lined Butterfly Valve has the characteristics of strong corrosion resistance, good stability and reliability. Flange-lined Butterfly Valve also has the advantages of strong sealing reliability, strong anticorrosion ability and small operating torque. Flange-lined rubber butterfly valve is widely used in food, medicine, chemical industry, petroleum, electric power, light textile, paper and other industries.

Flange butterfly valves adopt standard

Flange connection dimension GB4216.4-84; GB9115.8-88

Structure length GB12221-89

Pressure test GB/T13927-92; ZBJ16006-90

Main technical parameters of flange butterfly valve

DN(mm)		50~2000
PN(MPa)		0.6	1.0
Ps(MPa)	strength test	0.9	1.5
	Seal test	0.66	1.1
Applicable medium	Water, steam, oil, sea water and acids.
Applicable temperature	-40℃~200℃

Flange butterfly valve main parts material

Name	Material Science
valve body	WCB,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti HT250
Valve plate	WCB,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti HT250
Stem	2Cr13,1Cr18Ni9Ti,1Cr18Ni12Mo2Ti
Seal ring	CR,NBR,EPDM,FPM
filler	NBR, flexible graphite V rubber pad.

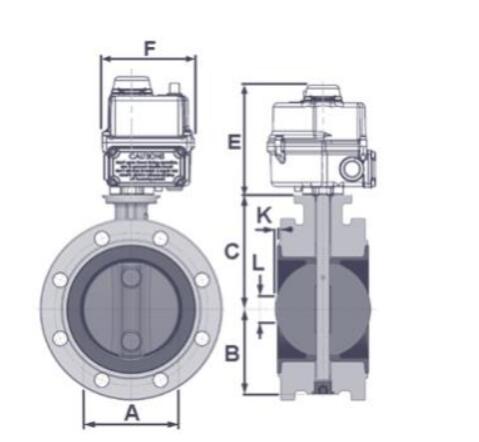

Butterfly Valve Drawing and Datasheet

SIZE	DN40	DN50	DN65	DN80	DN100	DN125	DN150	DN200	DN250	DN300
A	40	52	68	82	104	127	151	201	252	304
B	61	67	74	82	99.5	111.5	134	172	203	223
C	113	118	126	133	147	160	180	204	245	270
D	106	108	112	114	127	140	1470	152	165	178
E*	125	125	125	125	125	133	190	209	209	209
F	124	124	124	124	124	164	157	182	182	182
K	-	-	-	-	-	-	5.4	25	43	63
L	-	-	-	-	-	-	56	132	190	246
Operation Time 90^o 50/60hz Sec.	13	13	13	13	13	22/18	28/23	40/33	40/33	40/33
Weight Kgs	8.8	9.3	10.1	11.3	14.4	19.3	29.3	52.4	41.4	86.4
