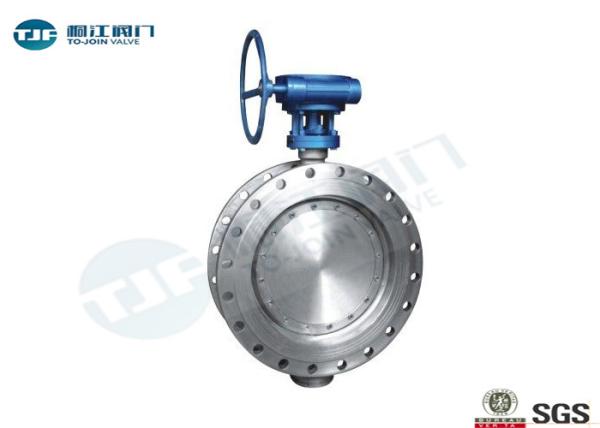

Stainless Triple Eccentric Butterfly Valve , Flanged End Metal Seated Butterfly Valves

Triple Eccentric Butterfly Valves, Metal Seated , Flanged Type in Stainless

PRODUCT INTRODUCTION

Design feature

- Virtually no rubbing from the resilient seal on the seating surface. This enhances the life and performance of the elastomeric disc seal and thereby preventing wear and consequent leakage.

- Disc seal ring designed to be flex could self-adjustment in different pressure and temperature and compress elastically on sealing surface to achieve the best sealing function.

- Body seat with satellite #21 hard face overlay provide long service life, other materials is available on customer request.

Size Range

DN65 to DN1800 (2½” to 72”)

Body Material

CF8M/CF8/WCB

Pressure Rating

ANSI CLASS 150, CLASS 300

Temperature Range

Laminated seat -103°F ~ 1022°F(-75°C~550°C)

Solid metal seat -321°F ~ 1400°F(-196°C~760°C)

Operation

Gear box ,Pneumatic actuation, Electric actuation

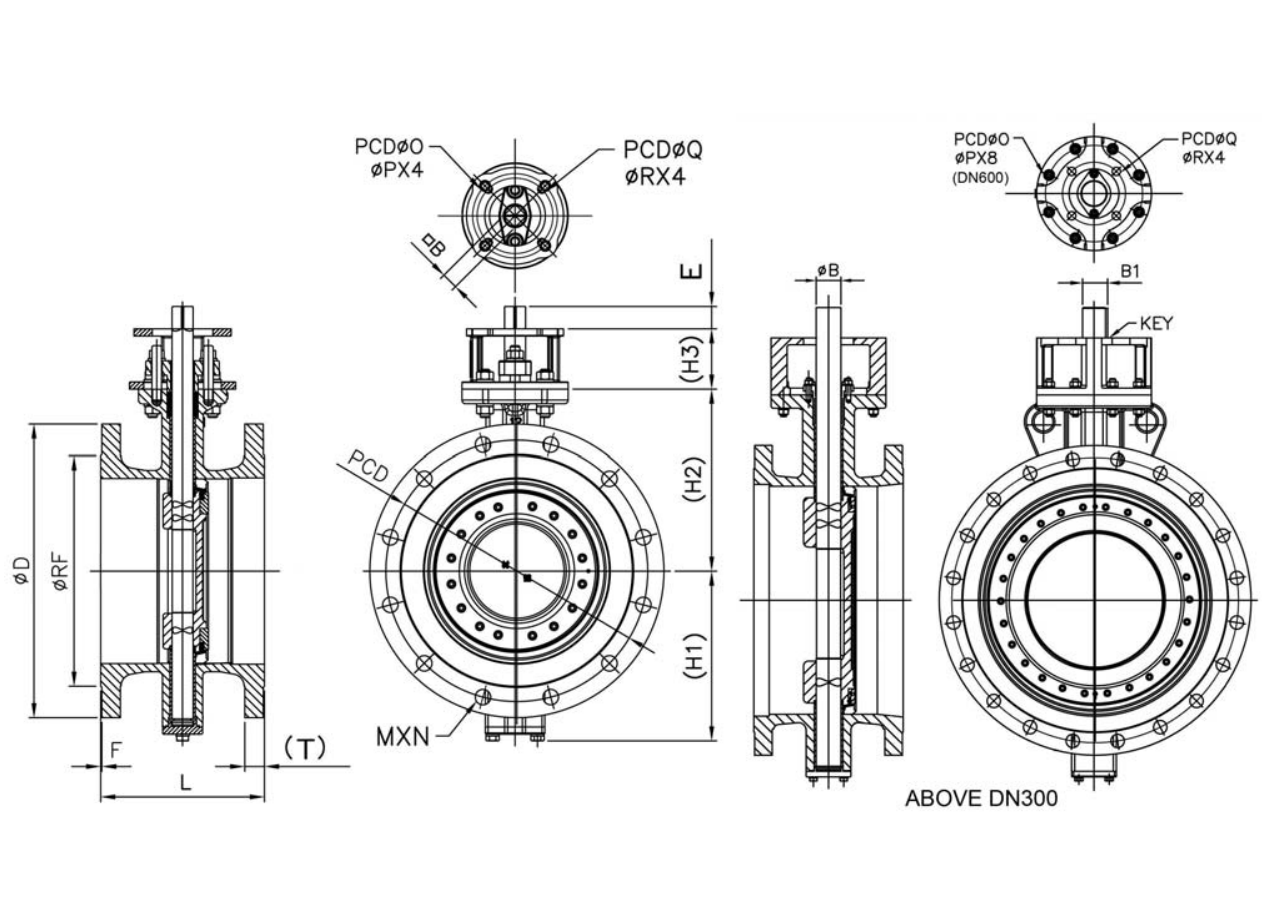

Butterfly Valve Drawing and Datasheet
