OLT Fiber Optic Transceiver QSFP 40g LR4 Module SM CWDM 1310nm 1330nm DFB

Fiber Optic QSFP Transceiver LR4 Module SM CWDM 1310nm 1330nm for OLT Equipment

Description

QSFP28 ER4 optical transceiver (HL-QSFP28-4ER4C) is designed for use in 100-Gigabit Ethernet links up to 30km without FEC or 40km with FEC on Single Mode Fiber (SMF). It is compliant with the QSFP28 MSA, 4WDM-40 MSA, and relevant portions of IEEE 802.3bm. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA. It converts 4 input channels of 25.78125Gb/s electrical data to 4 channels of LAN-WDM optical signals and then multiplexes them into a single channel for 103.125Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 103.125Gb/s optical input into 4 channels of LAN-WDM optical signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 LAN-WDM channels are 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm as members of the LAN-WDM wavelength grid defined in IEEE 802.3ba.

Feature

1.4 independent optical lanes
2.Transmitter:4x CWDM uncooled DFB LD(1271,1291,1311,1331nm)
3.Receiver:4x pin photo detector
4.Aggregate data rate excess of 41Gb/s(over 4 lanes)

5.Up to 10km link on SMD single mode fiber
6.Lower power consumption<3.5W

Application

1. High Performance Computing Interconnections. High speed access .40GBASE Ethernet

2. Infiniband QDR and FDR Interconnections

Parameter

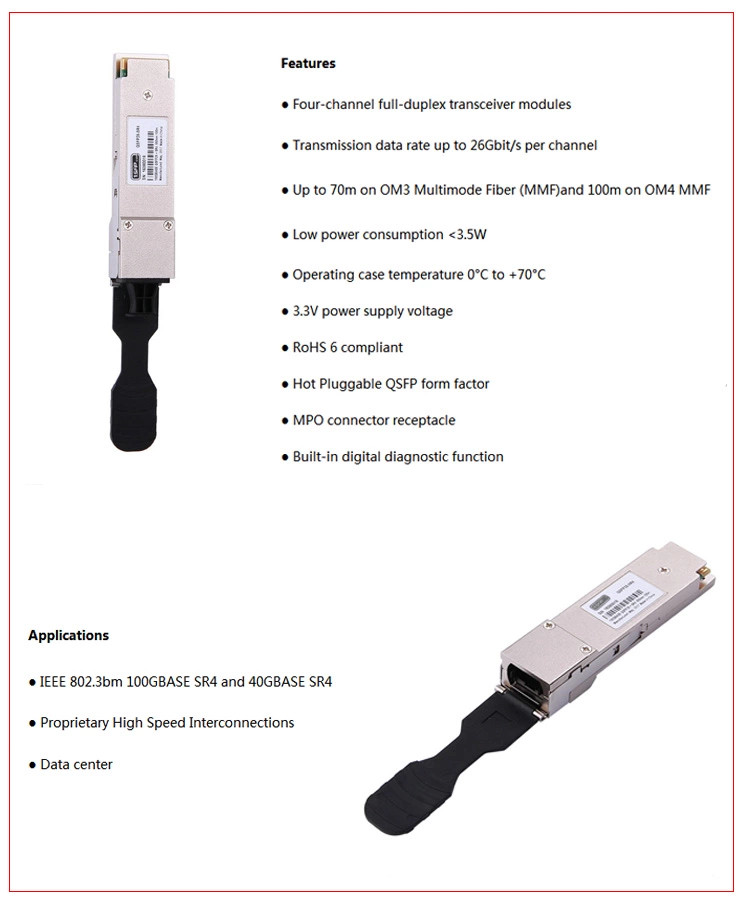

Product Pictures
