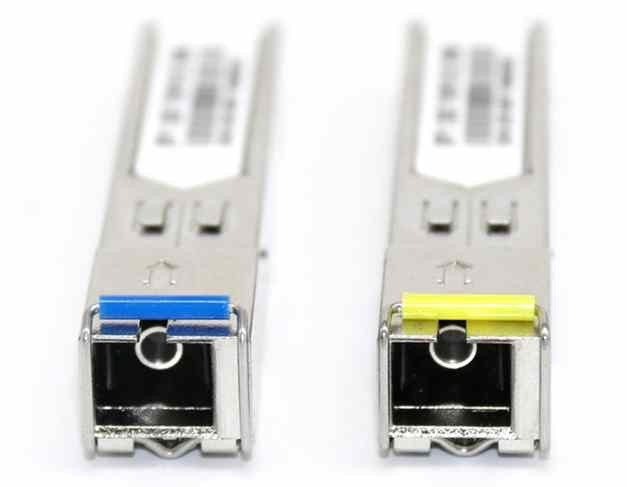

SFP 1.25G Fiber Optical Transceiver Module Single Mode 1310nm 40KM

SFP+ 1.25G Fiber Optical Module 1310/1550nm 20/40/80/120KM Single mode Transceiver

Description

SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20/40/80/120km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Feature

●Supports 1.25Gbps/1.0625Gbps bit rates

●Duplex LC connector

●Hot pluggable SFP footprint

●1550nm DFB laser transmitter and PIN photo-detector

●Applicable for 40Km SMF connection

●Low power consumption, < 0.8W

●Digital Diagnostic Monitor Interface

●Compliant with SFP MSA and SFF-8472

●Very low EMI and excellent ESD protection

●Operating case temperature:

Commerical:0 to 70 °C Industrial:-40 to 85 °C

Application

●Gigabit Ethernet

●Fiber Channel

●Switch to Switch interface

●Switched backplane applications

Parameter
