Flanged Stainless Steel Machine Screws M4 Good Chemical Resistance

Categories Stainless Steel Machine Screws
Brand Name: Runtai
Model Number: Flanged Button Head Screws
Certification: ISO9001/TS16949
Place of Origin: Jiangsu, China (Mainland)
MOQ: 50000
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability: 5 Ton/ days
Delivery Time: 15-20 working days
Packaging Details: PP bag+Carton box+ Wooden Pallet
Size: M1-M30 for choose
Material: Steel, Stainless Steel, Brass, Aluminum Alloy
Grade: 4.8 8.8 10.9 12.9 for choose
Surface treatment: zinc plated, nickel plated, black phosphates for choose
Standard: DIN ISO JIS ANSI
Products Name: 18-8 Stainless Steel Flanged Button Head Screws
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

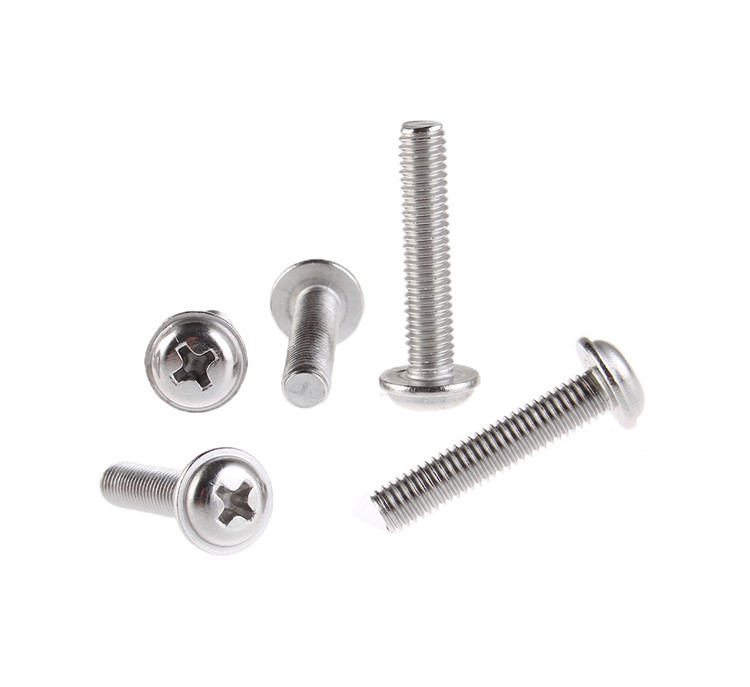

Flanged Stainless Steel Machine Screws M4 Good Chemical Resistance

18-8 Stainless Steel Flanged Button Head Screws Stainless Steel Pan Head Phillips Screw with Washer


Products Description


Made from 18-8 stainless steel, these screws have good chemical resistance and may be mildly magnetic. They have a flange that distributes pressure across a wide surface, eliminating the need for a separate washer. All are passivated for added protection against oxidation and corrosion. Head height includes the flange. Length is measured from under the flange.


Products Specification

Thread SizeM4
Thread Pitch0.7 mm
Length10 mm
ThreadingFully Threaded
Flange Diameter9.40 mm
Head Height2.20 mm
Drive
StylePhillips
Size2.5 mm
Material18-8 Stainless Steel
FinishPassivated
HardnessRockwell B70
Tensile Strength70,000 psi
Thread TypeMetric
Thread SpacingCoarse
Thread FitClass 6g
Thread DirectionRight Hand
Head TypeRounded
Rounded Head StyleButton
Rounded Head ProfileWide
Screw FeaturesFlanged
System of MeasurementMetric
RoHSCompliant

Note: Material, Size and Surface Treatment for choose.

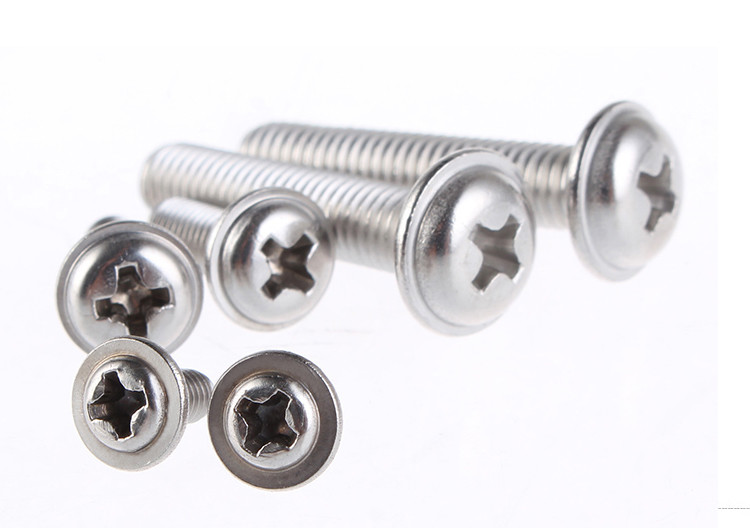

More Products Pictures
