Categories | Stainless Steel Machine Screws |
---|---|
Brand Name: | Runtai |
Model Number: | Pan Head Slotted Screws |
Certification: | ISO9001/TS16949 |
Place of Origin: | Jiangsu, China (Mainland) |
MOQ: | 50000 |
Price: | Negotiable |
Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A |
Supply Ability: | 5 Ton/ days |
Delivery Time: | 15-20 working days |
Packaging Details: | PP bag+Carton box+ Wooden Pallet |
Size: | M1-M30 for choose |
Material: | Steel, Stainless Steel, Brass, Aluminum Alloy |
Grade: | 4.8 8.8 10.9 12.9 for choose |
Surface treatment: | zinc plated, nickel plated, black phosphates for choose |
Standard: | DIN ISO JIS ANSI |
Products Name: | Yellow Chromate Plated Steel Slotted Drive Fillister Head Machine Screws |

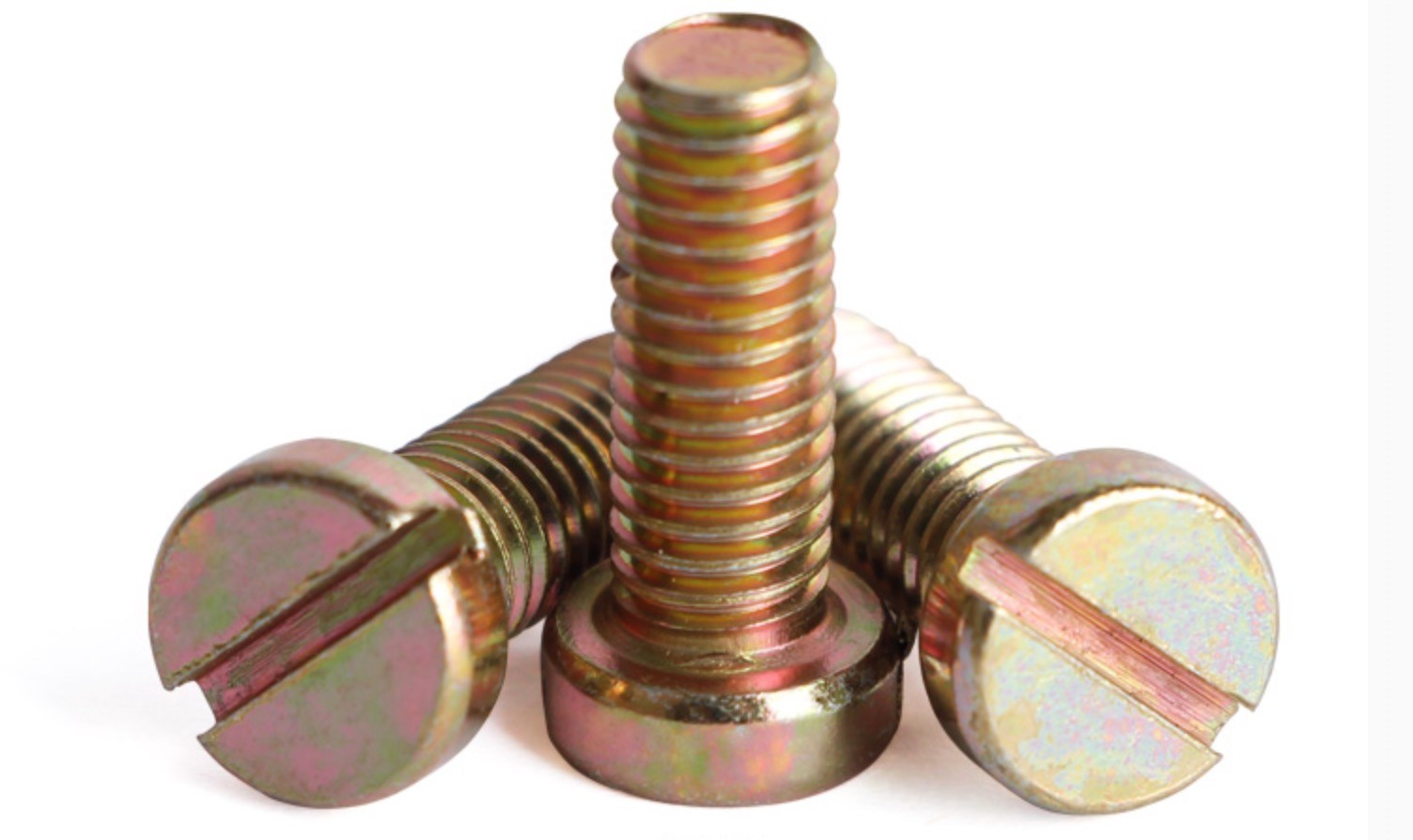

Yellow Chromate Plated Steel Slotted Drive Fillister Head Machine Screws Steel Fillister Head Slotted Screw
Products Description
These screws are zinc plated to resist corrosion in wet environments. They have a tall fillister head with a deep drive to maximize driving power and a narrow diameter to fit in tight spaces. Length is measured from under the head.
Products Specification
Thread Size | 6-32 |
Length | 5/16" |
Threading | Fully Threaded |
Head Diameter | 0.226" |
Head Height | 0.132" |
Drive Style | Slotted |
Material | Zinc-Plated Steel |
Hardness | Rockwell B69 |
Tensile Strength | 60,000 psi |
Screw Size Decimal Equivalent | 0.138" |
Thread Type | UNC |
Thread Spacing | Coarse |
Thread Fit | Class 2A |
Thread Direction | Right Hand |
Head Type | Rounded |
Rounded Head Style | Fillister |
Rounded Head Profile | High, Narrow |
System of Measurement | Inch |
Specifications Met | ASME B18.6.3 |
RoHS | Compliant |
Note: Material, Size and Surface Treatment for choose.
