Categories | Metal Set Screws |
---|---|
Brand Name: | Runtai |
Model Number: | Set Screws |
Certification: | ISO9001/TS16949 |
Place of Origin: | Jiangsu, China (Mainland) |
MOQ: | 50000 |
Price: | Negotiable |
Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A |
Supply Ability: | 5 Ton/ days |
Delivery Time: | 15-20 working days |
Packaging Details: | PP bag+Carton box+ Wooden Pallet |
Size: | M1-M30 for choose |
Material: | Steel, Stainless Steel, Brass, Aluminum Alloy |
Grade: | 4.8 8.8 10.9 12.9 for choose |
Surface treatment: | zinc plated, nickel plated, black phosphates for choose |
Standard: | DIN ISO JIS ANSI |
Products Name: | ISO4766 Stainless Steel Slotted Set Screws with Flat Point |

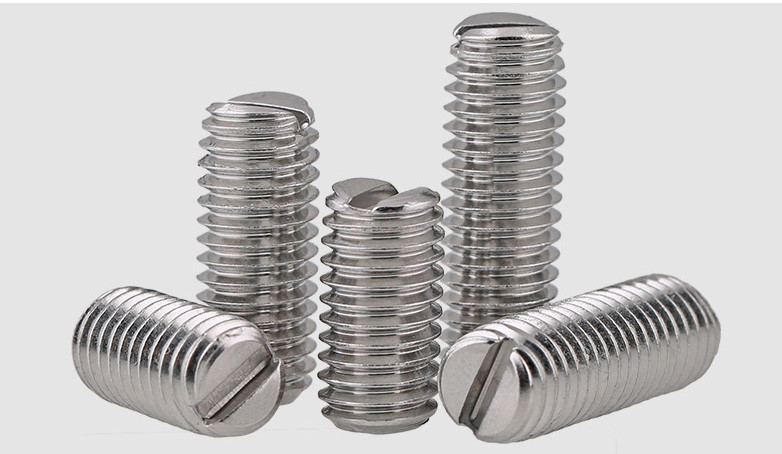

ISO4766 Stainless Steel Slotted Set Screws with Flat Point Slotted Drive Flat Point Set Screw
Products Description
Made from 18-8 stainless steel, these set screws are chemical resistant and may be mildly magnetic. They have a flat point and slotted drive contact surface for a secure hold. Length listed is the overall length.
Products Specification
Material | 18-8 Stainless Steel |
Thread Size | 4-40 |
Length | 1/4" |
Drive Size | 0.050" |
Screw Size Decimal Equivalent | 0.112" |
Hardness | Rockwell B80 |
Specifications Met | ASME B18.3 |
Thread Type | UNC |
Thread Spacing | Coarse |
Thread Fit | Class 3A |
Thread Direction | Right Hand |
Drive Style | Slotted |
Tip Type | Flat |
Head Type | Headless |
System of Measurement | Inch |
RoHS | Compliant |
Note: Material, Size and Surface Treatment for choose.
