Categories | Metal Set Screws |
---|---|
Brand Name: | Runtai |
Model Number: | Set Screws |
Certification: | ISO9001/TS16949 |
Place of Origin: | Jiangsu, China (Mainland) |
MOQ: | 50000 |
Price: | Negotiable |
Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A |
Supply Ability: | 5 Ton/ days |
Delivery Time: | 15-20 working days |
Packaging Details: | PP bag+Carton box+ Wooden Pallet |
Size: | M1-M30 for choose |
Material: | Steel, Stainless Steel, Brass, Aluminum Alloy |
Grade: | 4.8 8.8 10.9 12.9 for choose |
Surface treatment: | zinc plated, nickel plated, black phosphates for choose |
Standard: | DIN ISO JIS ANSI |
Products Name: | Class 12.9 Alloy Steel Hexagon Socket Drive Headless Screws with Flat Point |

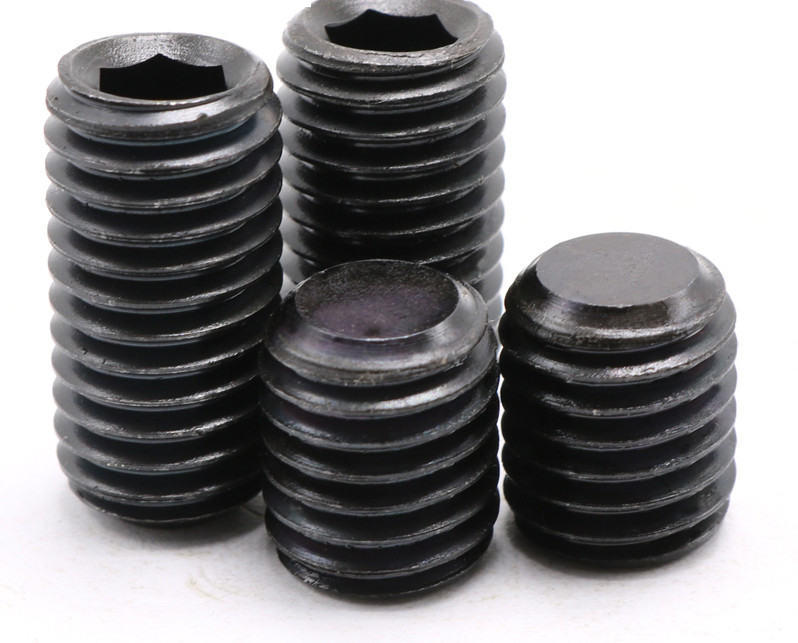

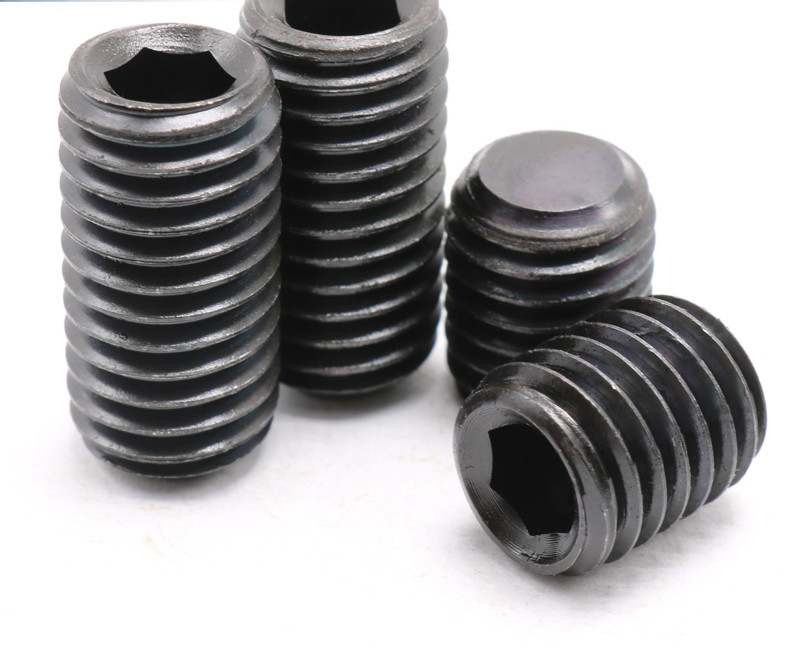

Class 12.9 Alloy Steel Hexagon Socket Drive Headless Screws with Flat Point
Products Description
With a tensile strength of 170,000 psi, these alloy steel screws are stronger than Grade 12.9 steel screws. Their black-oxide finish provides mild corrosion resistance in dry environments.They have a flat point and socket drive contact surface for a secure hold. Length listed is the overall length.
Products Specification
Material | Alloy Steel |
Thread Size | M5 |
Thread Pitch | 0.8 mm |
Length | 16 mm |
Drive Size | 2.5 mm |
Hardness | Rockwell C45 |
Specifications Met | ISO4026 |
Thread Type | Metric |
Thread Spacing | Coarse |
Thread Fit | Class 5g6g |
Thread Direction | Right Hand |
Drive Style | Hex |
Tip Type | Flat |
Head Type | Headless |
System of Measurement | Metric |
RoHS | Compliant |
Note: Material, Size and Surface Treatment for choose.
