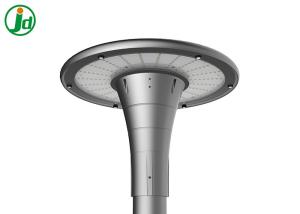

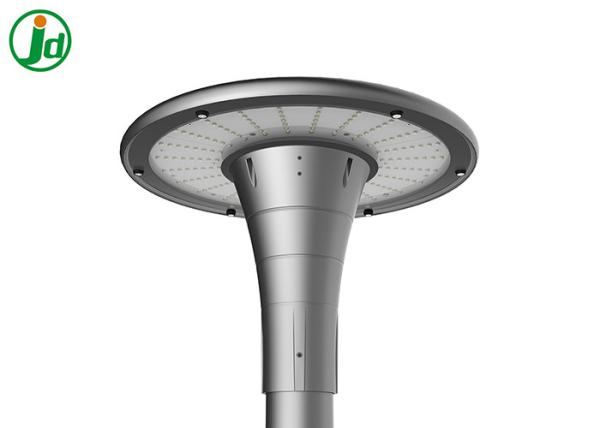

30 Watt Waterproof LED Street Lamp Tool - Free Opening And Maintaining

High brightness: 130-150LM/W.
Housing: Die-cast Aluminum.
Optical: Anodized aluminum reflector and PC diffuser.
Finishing: Surface anti-aging electrostatic spray processing, super resistance to corrosion
Dust and snow proof: Adopt smooth die-cast aluminum housing,successfully prevent the dust and snow from acumulating on the housing,thus better heat dissipation and longer life span.
Certifications: TUV,CB,CE,LM79,LM80,IP66

An optional house-side shield, and a post-top mounting bracket. Colour temperatures offered are 4000K (standard), and 3000K or 5000K (optional).

LED fitting for the lighting of roads and cycle-pedestrian paths. Of simple and functional design, it is available in standard version fitted with a virtual midnight self-learning system with possibility of selection among pre-defined programs of power reduction,

Pressing the screws, that guarantee the tightness of the product, the cover on which the LED modules are attached is released. Installation on Ø 76 mm poles with or without an arm.

• High brightness LEDs, CRI RA>70, 90 to 110lm/w & 2700-6500K selectable
• Power factor >0.95, total harmonic distortion <10%
• AC 100 to 277V wide application potted dirver with multi protections of short circuit, open circuit, zero load, over load, electron magnetic inteference
• Dual stage built-in surge protector 6KV and 10KV
• Aesthetical architecturelly design and make up of corrosion free high pressure die cast aluminum with well design of thermal managment system
• IP66 ingress protection to both optical and control gear compartment
• Tool free mounting with level gradienter, NEMA interface reserved
• Long maintenace free life, 50,000 hours for whole luminare

Specification :

Product Details :

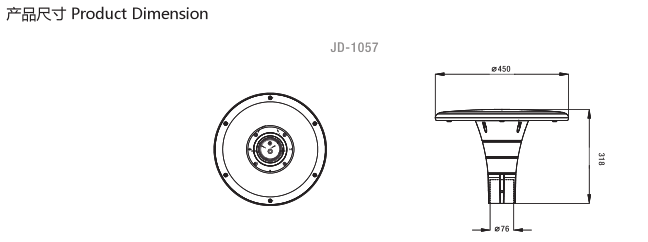

Product dimension:

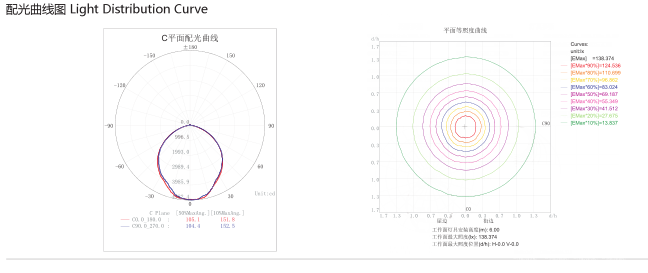

Product distribution curve :

JD has 25,000 m2 plant.150 workers.

JD dedicate itself to different kinds of luminaires: LED Street Light, LED Flood Light, LED Garden Light, Light Pole. Company equiped own Lab. Include: IES Testing,IP Testing, IK Testing, Work Temperature Testing. Equipment include Chip Mounter, Welding Machine, 1000T ,700T and 300T Die-casting Machines, Powder Coating Line. Company provides innovative, high quality and environment friendly luminaires to worldwide. Application include industrial, commercial, residential, hotel projects and municipal projects.

JD has experienced engineers offer strong technical support,bring creativity,insight and knowledge to provide the best and brightest lighting solutions. Company follows ISO 9001-2015, ISO14001, ISO18001 management system, attention to detail of every process include: design, engineering, tooling, manufacture, finishing, assembly, packing and shipping. HIGH QUALITY is embodied in every management and workers mind. Products have CE, ROHS, GS, Enec, CB certificate. Welcome to OEM, ODM.
