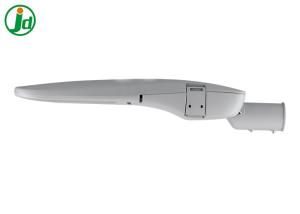

Compact Design Waterproof LED Street Lights 30W - 200W Wide Power Range

Super quality 30w 40w 50w 60w 70w 100w 120w 150w 200w waterproof led street light

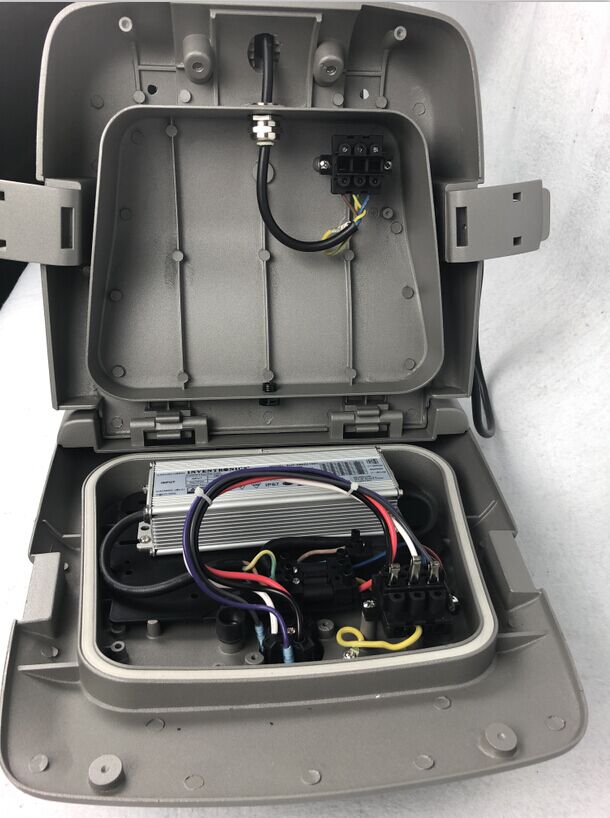

Pressing the screws, that guarantee the tightness of the product, the cover on which the LED modules are attached is released. Installation on Ø 76 mm poles with or without an arm.

Supplied with a reduction system for Ø 46-60 mm poles. Adjustable pole anchoring device without needing to open the street fixture. Vertical configuration inclination (pole side): 0°+20°, with a 5° step; horizontal configuration inclination (straddle): 0°-20°, with a 5° step. Colour: grey RAL9006. Optics: street LT-W (street width / pole height ratio = 1), suitable for urban streets. Colour temperature: 3000K and 4000K.

We provide professional, systemic and high-tech lighting solutions for all city routes, spaces and architecture. We are aware of the specific practical, architectural and cultural aspects of every space and propose a wide range of optics and photometric distribution systems. We light the whole city, from the outskirts to the centre, from zero to thirty meters, and every product is specifically devised for the different context in which it is used. We cut consumption and pollution with the high efficiency of our optics and with dynamic light flows that allow areas of shadow to be preserved where light is not needed and guarantee pedestrians and drivers a safe, accessible night-time.

Materials

Housing:ADC12 die-cast aluminum

Cover:Toughened cambered/flat glass
Screws:304 stainless screws

Electrial (upon request)

Class I or Class Ⅱ(upon request)

Input voltage:90-305VAC/50-60Hz,170-3055VAC/50-60Hz

10KV/20KV SPD(upon request)

Power automatically switch off when opening

Dimming(upon request)

Dali
1-10V
PWM
Astro DIM for autonomous dimming with five independent levels
Smart control management system

Certificate :

ISO9001:2015

ISO14001:2015

ISO18001:2007

ISO9227

CE CB ROHS EMC LVD LM79-08 TM-21-11

IES LM-80-08: Approved Method for Measuring Lumen Maintenance of LED Light Sources.

IEC 60598-2-3: Luminaires – Particular requirements - Luminaires for road and street lighting.

IEC 60529 :Degrees of protection provided by enclosures (IP 66) .

IEC 62262 :Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK09) .

1 Great structure with slim and compact design - Fine surface treatment

2 Anti-aging powder coating - High shock and impact resistant

3 Low color shifting and low light decay

4 Adopting Taiwan Meanwell® or the same standard IP66 waterproof power supplies, providing better electronic performance.

5 High purified aluminum heat sink,Advanced heat conduction providing long life of the LEDs

Specification :

Product Details :

Product dimension:

Product distribution curve :

​
