Brand Name: | baofeng |
Model Number: | UV-9R |
Certification: | CE FCC Rohs Certificate |
Place of Origin: | China |
MOQ: | 2pcs |
Price: | USD23.00/piece |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50000pcs / year |
Delivery Time: | 3-5 days |
Packaging Details: | carton box |
Type: | Handheld |

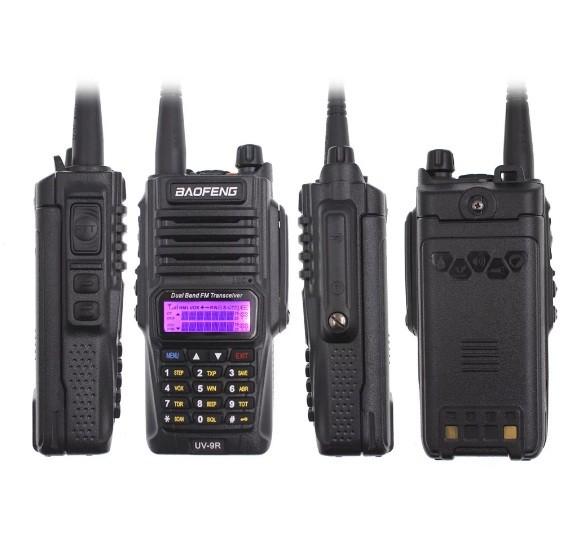

Baofeng Dual Band UV-9R Waterproof Dust proof Walkie Talkie Two Way Radio Long Range UV9R Walkie talkie
FUNCTIONS
1) Battery Saving
2) VOX Function
3) Wide/Narrow Band Selection
4) Auto-Back Light
5) Dual Band Standby
6) Time-out Timer (TOT)
7) Voice Prompt
8) ANI Code
9) DTMF Code
10) Dual Band, Dual Display and Dual Standby
General | |
Frequency Range(dual band) | 136-174mhz,400-520mhz |
Storage Channel | 128 |
Step Frequency | 2.5/5/6.25/10/12.5/20/25KHz |
Rated voltage | DC7.4V |
Battery Capacity | 1800mah li-ion battery |
Frequency Stability | 2.5ppm |
Work Temperature | -20 ℃ to +60℃ |
Antenna Impedance | 50 Ω |
Work Mode | Simplex Operation or semi-duplex |
Duty cycle | 03/03/54 min(Rx/Tx/Standby) |
Size | 121*64*36mm(exclude antenna) |
Weight | 163g(not including battery and antenna) |
Transmitter | |
RF Power Output | 5W |
Modulation Mode(W/N Band) | FM(F3E) |
Spurious Emission | ≤-60B |
FM Noise | ≤-45dB(W)≤ -40dB(N) |
Audio Distortion | ≤5% |
Transmitting Current | ≤1.4A |
Receiver | |
Sensitivity (12dB SINAD) | 0.20 uV |
Intermodulation | ≥65dB |
Spurious Radiation | ≥65dB |
Audio Distortion | ≤5% |
Standby Current | ≈15mA (with battery save on ) |
Standard Package
1 X UV-9R dual band walkie talkie
1 X High Gain Antenna
1 X 7.4V 2200mAh Battery
1 X Desktop Charger
1 X 100-240V Power Adapter
1 X Belt Clip
1 X Hand Strap
1 X Manual in English
![]() |
