High Precision Standing Seam Roll Forming Machine Galvanized Coil Material

Categories Standing Seam Roll Forming Machine
Brand Name: SHITONG
Model Number: 480
Certification: CE, ISO 9000
Place of Origin: China
MOQ: 1 set
Price: USD 26000-28000 set
Payment Terms: T/T, L/C
Supply Ability: set 20 month
Delivery Time: 30 days
Packaging Details: Container
Machine size: 6*1*1.5m
Machine color: Blue and orange
Material: Galvanized coil
Usage: C purlin making
Control system: PLC control
Cutting system: Hydraulic cutting system
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Precision Standing Seam Roll Forming Machine Galvanized Coil Material

High Precision Standing Seam Panel Roll Forming Machine Whole Production Line


1.High Precision Standing Seam Panel Roll Forming Machine Whole Production Line


---- We adopted a no stop cutting system to enhance the machine running speed.
---- Hydraulc drive motor provide strength power to make the machine running fast.
---- High precision machining parts ensure machine's high speed.
---- Good service let you no any trouble.


2.High Precision Standing Seam Panel Roll Forming Machine Whole Production Line parameters


Raw material
MaterialColored steel sheet, galvanized steel sheet, aluminum sheet
Thickness of coil sheet0.2-0.8 mm
Material expand width1000 mm
Efficiency width840-850-900 mm
Machine details
Roller materialHigh grade NO. 45 forged steel with 0.05mm hard chrome plating
Shaft materialHigh grade NO. 45 carbon wrought steel
Cutting bladeCr12 mould steel with quenched treatment
Diameter of shaft70mm or as your requirement
Main frame300 H steel
Forming steps

Up layer:9 stations

Middle layer:11 stations

Down layer: 13 stations

Productivity

Up layer:4-5m/min

Middle layer:20-25m/min

Down layer:20-25m/min

Hydraulic station power4+4KW
Hydraulic pressure10-12MPa
Appearance size6500mm*1500mm*1800mm
Weight8-10tons
Hydraulic oil40# hydraulic oil
Electric tension380V 50 Hz 3 Phase or as your requirement
Cut ModeHydraulic forming after cutting off
Cutter materiaCr12 Heat Treatment
Electronic control systemPLC, Touch Screen, Encoding counter
ColorBlue, green or yellow or as your requirement
Rolling material45# steel,roller surfaces polishing, hard plating


3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. FAQ (about our roll forming machine)

1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.

3. How to visit your company?
A. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.

4. What can you do if the machine broken?
Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself.if after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.

5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.

6. You are Trade Company or factory?
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.

7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.

8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

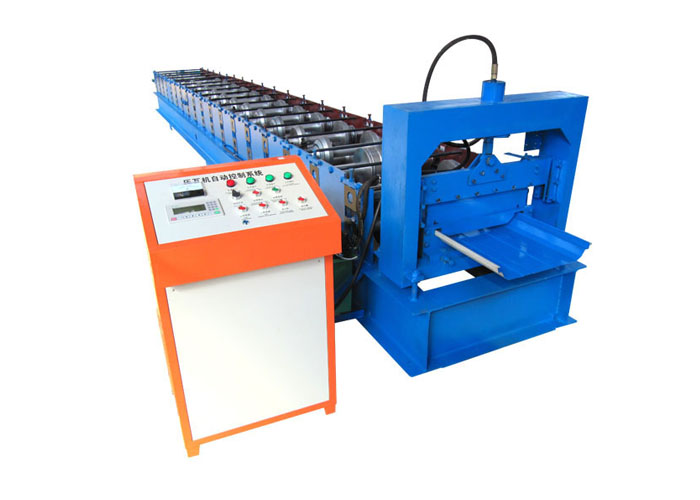

5.Roll forming machine pictures:
