Standing Seam Roof Panel Sheet Roll Forming Machine Automatically

Categories Standing Seam Roll Forming Machine
Brand Name: ST
Model Number: 400
Certification: CE ISO
Place of Origin: China
MOQ: 1 set
Price: 8500 USD for per set
Payment Terms: T/T
Supply Ability: 30 sets for per month
Delivery Time: 45-60 days
Packaging Details: the main machine is nude and the control box will packed with plastic
rollers: 16rollers
size: 7.2*1*1.2m
Original: China
power: 4Kw
name: standing seam making machine
blade material: Cr12 mould steel with quenched treatment
color: as your customized
voltage: 380v 50hz 3 phases or as your requirments
diameter shaft: 70mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Standing Seam Roof Panel Sheet Roll Forming Machine Automatically

Automatically Ghana Markets Standing Seam Roof Panel Sheet Roll Forming Machine

Product introduction:

Standing seam machine may also be referred to roll cold forming, that is, in a row in series forming mill, contact through the metal plate and the metal strip, sequentially to bend, the plates were processed into the desired cross-sectional shape of the plastic processing method.

Application

The roof panel roll forming machine is widely used in industrial and civil architecture, warehouses, large span steel structure housing the roof, walls and interior and exterior decoration and so on.

Advantages:

1. high strength rigidity, construction of convenient.

2. easy to update, eas industrialized production.


Parameters:

No
Item
Data
1
Raw material width
400mm
2efficiency width265mm
3
Raw material
PPGL/GL
4
Material thickness
0.3-0.6mm or customized
5
Forming roller material
45# steel plated with chrome
6
Shaft diameter
70 mm
7
Forming roll station
16rollers
8
Main motor power
4KW
9
Control system
PLC control
10
Language
chinese , english or as your customzied
11
Machine color
red and bule or as your customized
12voltage380v 50hz 3 phases or as your requirements
13dimension7.2*1*1.2m

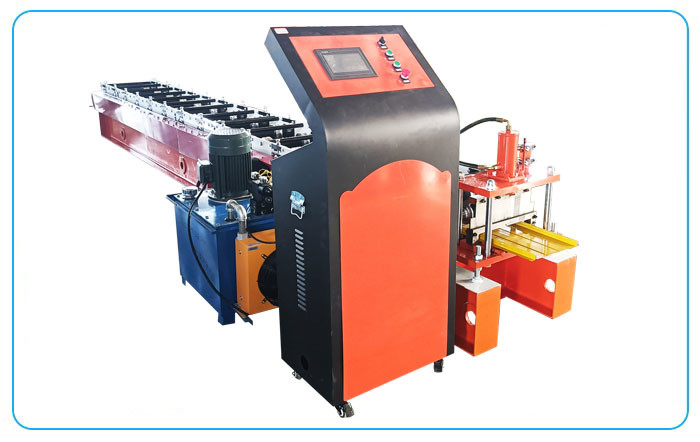

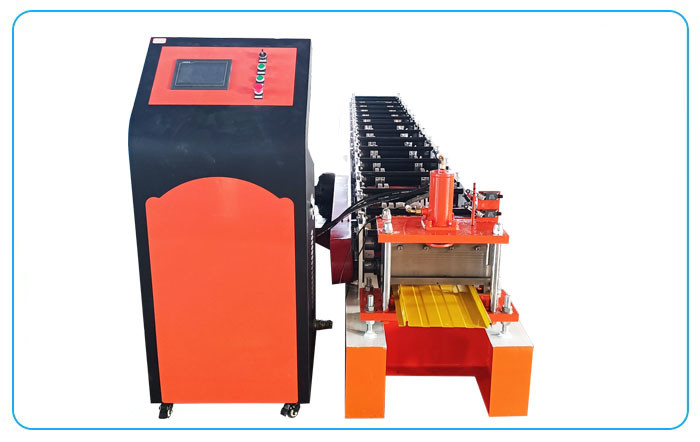

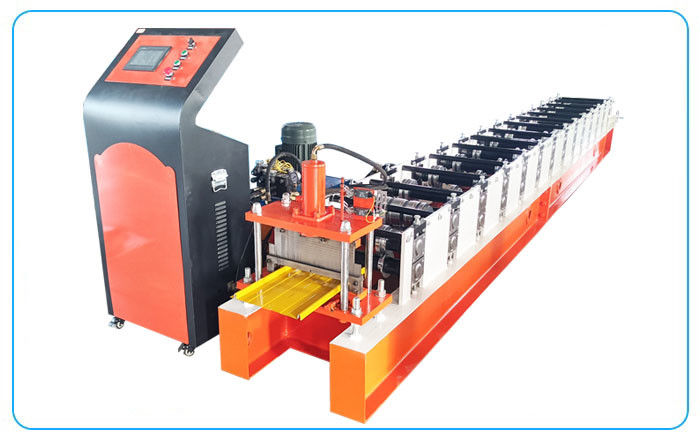

Main Pictures



Cheap Standing Seam Roof Panel Sheet Roll Forming Machine Automatically for sale
