LED Bulb Glue Dispensing Machine 4 Rotary Working Stations Text Screen Automatic

Categories	Glue Dispensing Machine
Brand Name:	HSTECH
Model Number:	HS-BD4
Certification:	CE
Place of Origin:	China
MOQ:	1 pc
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per week
Delivery Time:	5~7 work days
Packaging Details:	Wooden package, with foam
Product name:	LED Bulb Glue Dispenser
Power supply:	AC220V/50~60Hz/200W
Max Dispensing Diameter:	160mm(two station),110mm(four station)
Motor Speed:	Max 300mm/s
Repeat accuracy:	±0.02mm
Warranty:	1 Year
Application:	LED bulb, LED Par light
Control method:	Text Screen

Contact Now

Add to Cart

Company Info.

Shenzhen Hansome Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

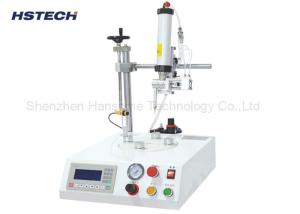

LED Bulb Glue Dispensing Machine 4 Rotary Working Stations Text Screen Automatic

4 Rotary Working Stations Text Screen Automatic LED Bulb Glue Dispenser

Application

This LED bulb glue dispensing machine to apply glue on the base of the LED bulb or LED Par light, to connect with the housing of the lamp.

This Four-station round glue dispensing machine can be used for this application. Four stations are distributed by 90 degree on the revolution disc. Revolution motor rotates 90 degree each time to bring the work-piece to the gluing nozzle. Auto-rotation motor drives work-piece rotating in average speed to achieve evenly glue coating.

Specification

Model	HS-BD4
MCU	Industrial PLC
Programming	Text Demonstration Programmer
Drive mode	Precise Stepping Motor
Max Dispensing Diameter	160mm(two station),110mm(four station)
Motor Speed	0 ~ 300 RPM
Positioning Accuracy	±0.1mm
Z-axis Adjust Range	250mm
Z-axis Working Travel	50mm
Dimension (LWH)	420mm532mm532mm
Weight	35Kg
Working Power	AC220V/50~60Hz/200W
Working Air Pressure	0.4~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0~40℃,Humidity: 20~90%

Machine feature

1, Four work stations in cycle, the designed capacity is 1000~1500pcs/h.

2, Equipped work piece detector to decide gluing or skip.

3, Gluing track can be set as full circle, single point or segmented arc etc.

4, Working mode can be four-station or two-station.

5, It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance.
