OS-XU01G XPON ONU 1GE port for GPON ONU 1GE and EPON ONU 1GE cost-effective, easy management,web management

Categories XPON ONT(dual mode)
Brand Name: Opti-S
Model Number: OS-XU01GE
Certification: CCC/ISO9001
Place of Origin: China
MOQ: 1
Price: negotiable
Payment Terms: T/T
PON: XPON ONU for GPON and EPON
management: Web/CLI management
Power: 12V~0.5A
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

OS-XU01G XPON ONU 1GE port for GPON ONU 1GE and EPON ONU 1GE cost-effective, easy management,web management

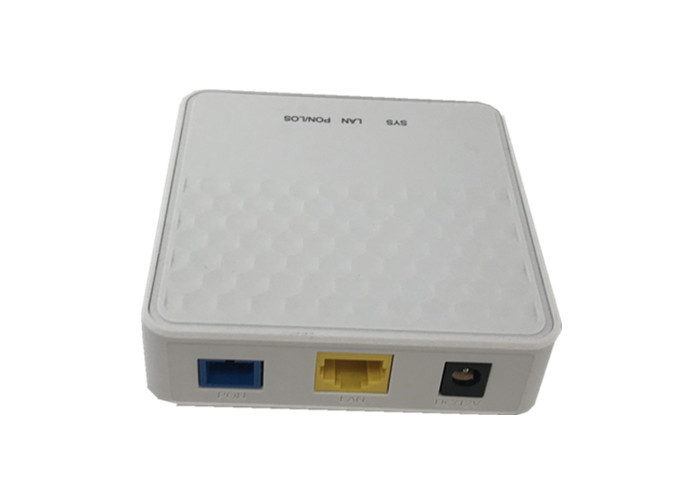

1GE HGU XPON ONU


1.Product Description

XU01G is 1GE port XPON(GPON and EPON dual mode) HGU ONU. It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Small size dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.

It can also be applied to a wide temperature environment, and also has a powerful firewall function.


2.Features:

ØHGU ONU, bridging and routing modes can be set

Ø Dual mode ONU compatible with popular EPON and GPON OLT

ØSupport loop detection, IGMP, IGMP snooping

Ø802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service

ØSupport port speed, support for storm suppression

ØSupport Telnet, CLI, OMCI/OAM and Web management

Ø Support NAT, Firewall function

Ø Support remote software upgrad


3.Technical parameters


ItemsUnitSpecifications
PON standard.EPON IEEE802.3ah, GPON ITU-T G.984.x
Optical interfaceSC/PC connector,GPON/EPON interface(EPON PX20+ and GPON Class B+) Receiving sensitivity:<-28dBm Transmitting optical power:0~+4dBm Transmission distance:20KM
SpeedGbpsGPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps
WavelengthnmTx1310, Rx 1490
Interfacedata

1*10/100/1000Mbps

Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors

IndicatorLEDSysREGLINKACT
Operating conditionOperating temp: -5 ~ +55
Storing conditionStoring temp: -30 ~ +60
Humidity%10~90(non-condensing)
Power supplyVDC 12V,0.5A adapter
Power consumptionW≤4
Dimensionmm90mm×85mm×23mm(L×W×H)
Net weightKg0.1


Cheap OS-XU01G XPON ONU 1GE port for GPON ONU 1GE and EPON ONU 1GE cost-effective, easy management,web management for sale
