OS-XU01GT XPON ONU 1GE+CATV for FTTX with contenting GPON and EPON that single fiber cost-performance,easy management

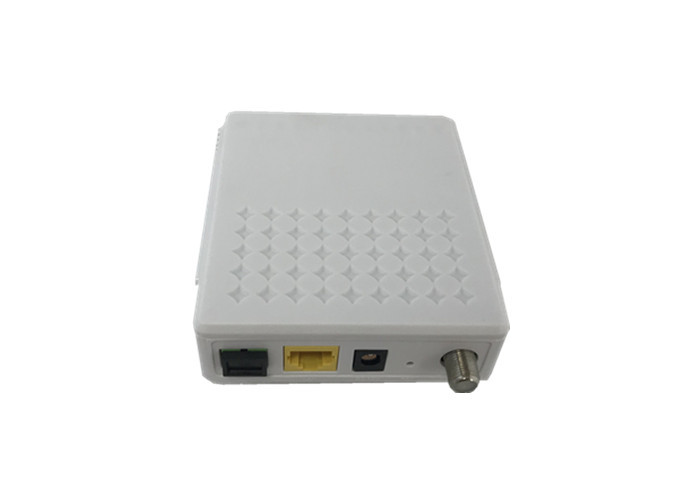

XPON ONT 1GE+CATV

Product Overview:

XPON ONT 1GE+CATV is 1GE+CATV XPON (GPON and EPON dual mode) HGU/SFU ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access and CATV, video surveillance and other requirements. It is based on Gigabit XPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Small size dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.

Product Descriptions:

Ø HGU ONU, bridging and routing modes can be set

Ø Dual mode ONU compatible with popular EPON and GPON OLT

Ø Support loop detection, IGMP, IGMP snooping

Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service

Ø Support port speed, support for storm suppression

Ø Triple Solution Data, Voip and Cable TV(RF bandwidth:45~1000MHz, AGC function)

Ø Support Telnet, CLI, OMCI/OAM and Web management

Ø Support NAT, Firewall function

Ø Support remote software upgrade

Product Specification:

Items	Unit	Specifications
PON standard.		EPON IEEE802.3ah, GPON ITU-T G.984.x
Optical interface		SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM
Speed	Gbps	GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps
Wavelength	nm	Tx1310, Rx 1490, CATV 1550
Interface	data	1*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
Indicator	LED	POWER,LOS,PON,LAN,CATV
Operating condition	℃	Operating temp: -5 ~ +55
Storing condition	℃	Storing temp: -30 ~ +60
Humidity	%	10~90(non-condensing)
Power supply	V	DC 12V,0.5A adapter
Power consumption	W	≤6
Dimension	mm	92x111×30(L×W×H)
Net weight	Kg	0.13

CATV

Items	Unit	Specifications
Optical Connector Type		SC/APC
Input optical powerrange	dBm	-18~ +2
Optical return loss	dB	≥45
Wavelength	nm	1550 ±10
RF Output Connector	F	Imperial or metric
RF Bandwidth	MHz	47～1000
Slope	dB	0~2 (47～1003MHz)
RF impedance	Ω	75
RF output return loss	dB	≥14 dB
RF output lever	dBuV	82(@-7dBm), 75(@-15dBm)
AGC Range	dBm	-15~-7 /-12~ -4 /-10~-2
C/N	dB	≥47 @-7dBm
CTB	dB	≥60 @-7dBm
CSO	dB	≥60 @-7dBm
MER	dB	≥35
