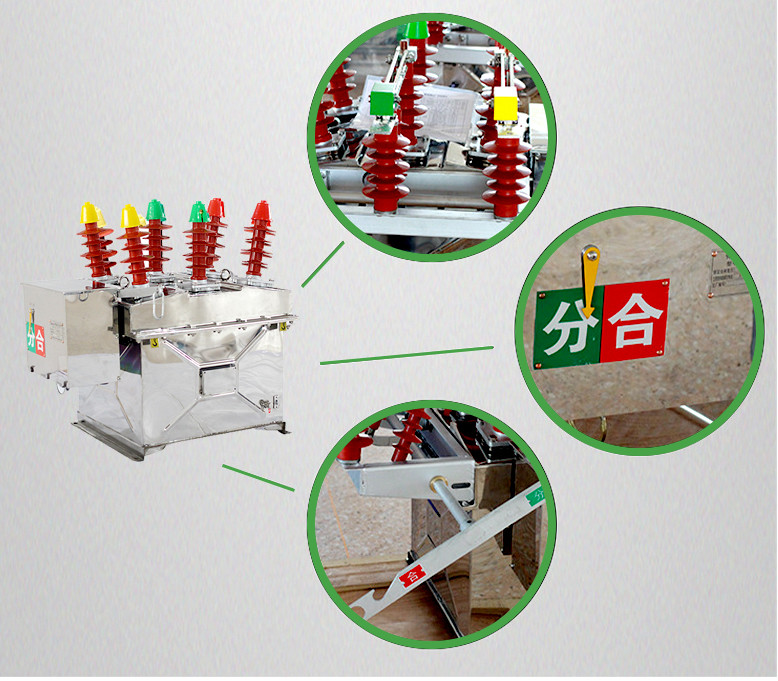

High Voltage Vacuum Circuit Breaker 12KV Voltage With Manual Tape Isolation

Hengfengyou High Quality ZW8-12G / 630-20 outdoor high voltage vacuum

circuit breaker with manual tape isolation

Model ZW8-12 outdoor high-voltage Column Vacuum Circuit Breaker is an outdoor high-voltage

switchgear with rated voltage of 12KV. It is mainly used in the distribution system of urban network

and rural network. The outer insulation is made of silicone rubber material with reliable insulation

and strong anti-pollution ability. Zw8-12 vacuum circuit breaker is equipped with Spring Energy

Storage Operation Mechanism, which can be operated manually, electrically and remotely.

The isolation switch can be installed on the side of the circuit breaker to form an outdoor high-voltage

vacuum circuit breaker combined with an outdoor high-voltage isolation switch. According to the

requirements of users, AC high-voltage vacuum auto-recloser, auto-sectionalizer, self-operated power

supply, external high-voltage transformer structure, built-in. Zw8a-12 is composed of ZW8-12 circuit

breaker and isolator. It is called combined circuit breaker and can be used as sectional switch.

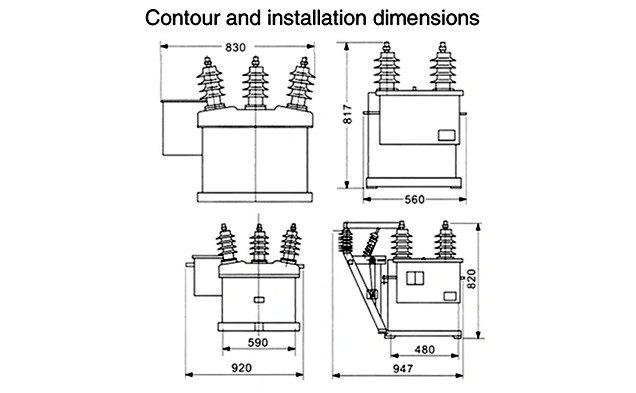

Product structure

_{1) the whole structure is three-phase box type}

_{2) vacuum interrupter}

_{3) Spring Operating Mechanism}

_{4) Insulation System}

_{5) Conductive Circuit}

_{6) box cover, box}

_{7) seal}

Characteristics

1) according to the user needs can be installed CT ratio 50 / 5,100 / 5,200 / 5,400 / 5,630 /

5 current transformer, high-voltage silicone rubber sleeve internal insulation for Composite

Insulation!

2) built-in multi-tap current transformer can be used for over-current protection!

3) double winding current transformer can be used for protection and measurement!

4) if the voltage transformer, auto-reclosing controller and auto-sectioning controller are

installed, the distribution protection automation and the function of "four remotes" (telemetry,

telemetry, telecontrol, telecontrol) can be realized. !

5) can be installed isolation switch !
