Multi Color Heavy Duty Dump Truck Customized Capacity Off Road Dump Truck

Categories Heavy Duty Dump Truck
Brand Name: Sinotruk Howo
Model Number: ZZ3257N4147A
Certification: ISO CCC
Place of Origin: Jinan China
MOQ: 1 unit
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 units per month
Delivery Time: Within 30-35 work days after receive order
Packaging Details: Nude, Polished with wax before shipping on board
Item: Sinotruk Howo 6x4 Heavy Duty Dump Truck 30ton
Cab: HW76—HOWO lengthened cab.
Engine: WD615.47, 371 HP
Transmission: HW19710, 10F & 2R, with PTO
Cargo box: 5.6x2.3x1.4m
Overall size: 8750*2550*3450mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Multi Color Heavy Duty Dump Truck Customized Capacity Off Road Dump Truck

Multi Color Heavy Duty Dump Truck Customized Capacity Off Road Dump Truck

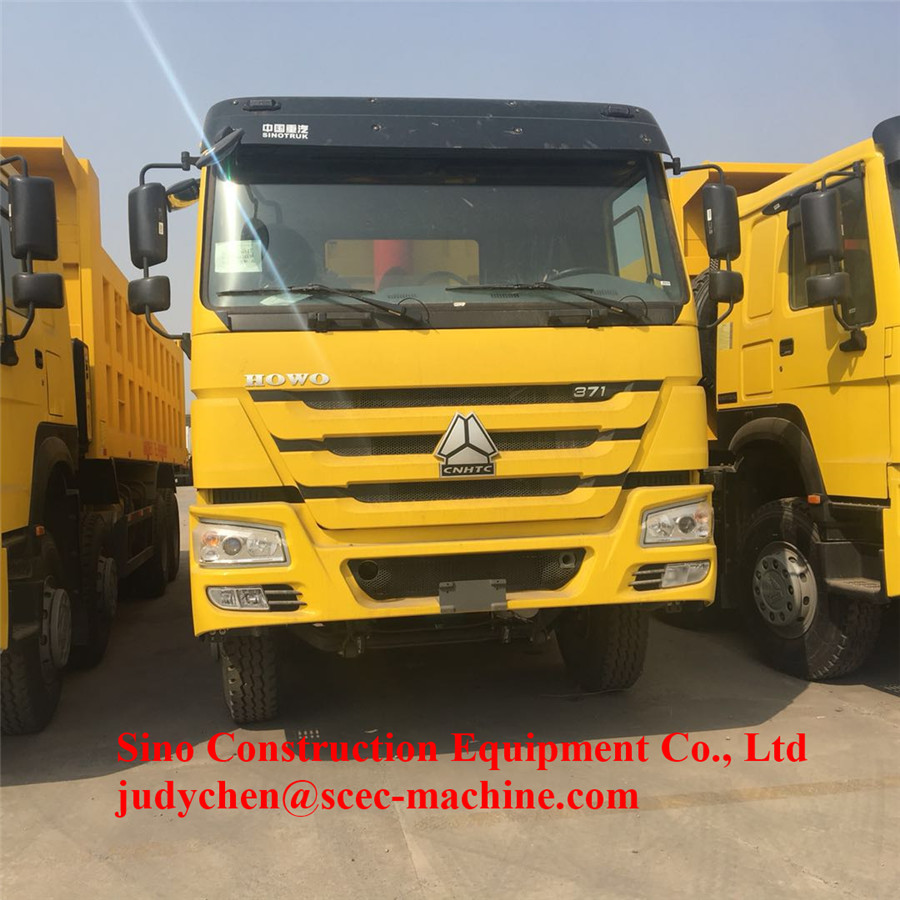

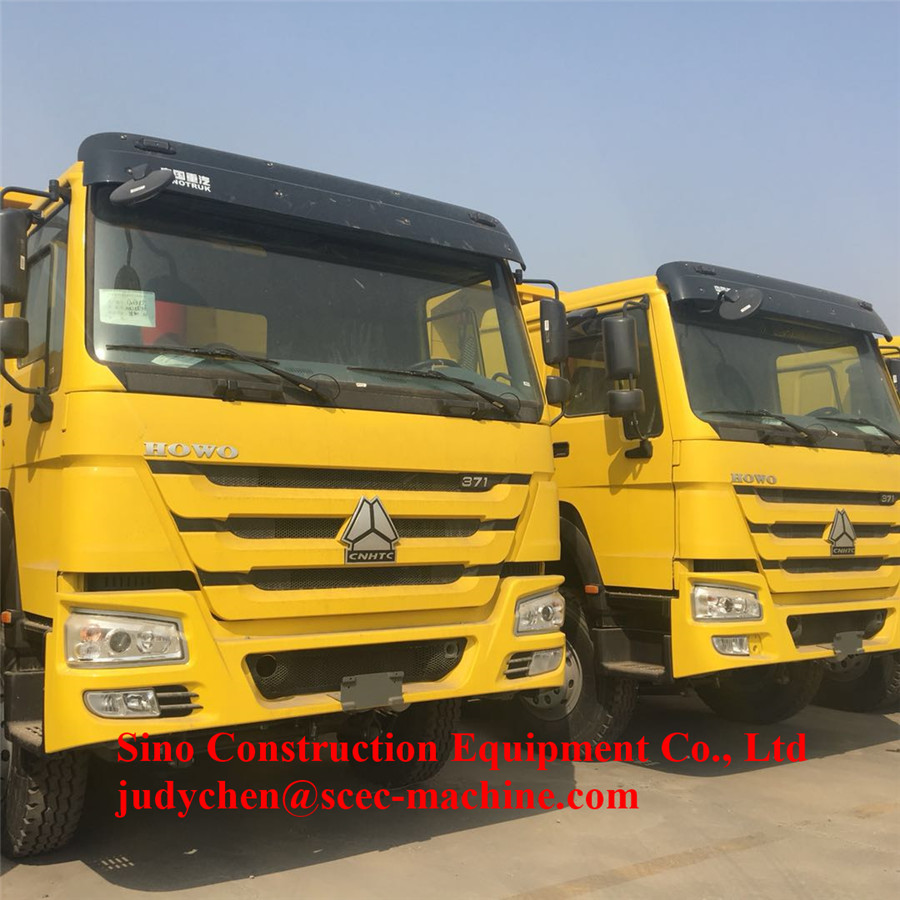

Sinotruk Howo 6x4 Heavy Duty Dump Truck 30ton White, Yellow and Red Euro II


Quick look of Sinotruk Howo 6x4 Heavy Duty Dump Truck 30ton White, Yellow and Red Euro II

Drive form: 6x4 / 10 Wheels / 3 Axles

Horsepower: 371HP

Transmission: HW19710, 10F & 2R

Drive axle: HC16, 2x16000 kgs


Technical specification of Sinotruk Howo 6x4 Heavy Duty Dump Truck 30ton White, Yellow and Red Euro II

Chassis modelZZ3257N4147A
Drive type6X4
Cab

HW76—HOWO lengthened cab.

HW70--HOWO standard cab. The basic configuration is no sleeper, the other is the same as HW76.

Engine

Manufacturer: Sinotruk

Diesel four-stroke direct injection diesel engine

Engine model: WD615.47, 371 HP

Emission standard: Euro 2

Inline six-cylinder water-cooled turbocharged intercooler

Displacement: 9.726 L

TransmissionHW19710, 10F & 2R, with PTO
SteeringZF8118, power assisted hydraulic steering
Front axleHF9,1x9000 KGS
Rear axle

HC16, 2x16000 KGS
The axle housing, the central single reduction and the wheel hub reduction, and the differential lock between the wheel and the axle.

Speed ratio: 5.73

Chassis

Frame: There are sections of 300x80x8mm parallel ladder frame and sub-frame cross-beam cold riveting

Front suspension: 10 semi-elliptical leaf springs, hydraulically retractable double-acting shock absorbers and stabilizers

Rear suspension: 12-blade semi-elliptical spring, bogie spring and stabilizer

Braking System

Braking: dual-circuit pneumatic braking

Parking brake (emergency braking): spring energy, compressed air works on the front axle and rear wheels.

Auxiliary brake: engine exhaust brake

Power Systems

Operating voltage: 24 volts, negative ground

Starter: 24V, 5.4kW

Generator: three-phase, 28 V, 1500 W

Battery: 2 × 12V, 165AH

Cigarette lighter, horn, headlight, fog light, brake light, indicator light and reversing light

Tire12.00R20, with one spare tyre
tank300L
Cargo box

L:5.6M;

W:2.3M;

H:1.2-2M

Overall size8750*2550*3450mm

Advantages of Sinotruk Howo 6x4 Heavy Duty Dump Truck 30ton White, Yellow and Red Euro II

1. High-strength carbon steel, reinforced ribs in the cargo box to improve the strength of the cargo box

2. The tires use triangle or double money brands to ensure quality

3. The lifting cylinder has high structural strength and reasonable design

4. Perfect after-sales service

5. We have a specialized spare parts service warehouse, professional technicians, 24-hour online technical services and support.


Packaging & Shipping:

Packaging Details All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER


FAQ:
Which countries do you export to?

Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, Iran, UAE, Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.

What is the proportion of your products exported?

75% of our products are exported to all over the world.

What is the payment term?

Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

What kind of logistic service do you supply?

A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.

B. Term: FOB,CIF, DAP, to door service, etc.

What spare parts can you supply?

All kinds of spare parts of XCMG, SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SANY, SDLG, LONKING, XGMA, CUMMINS ENGINE, ZF GEAR BOX, etc.
